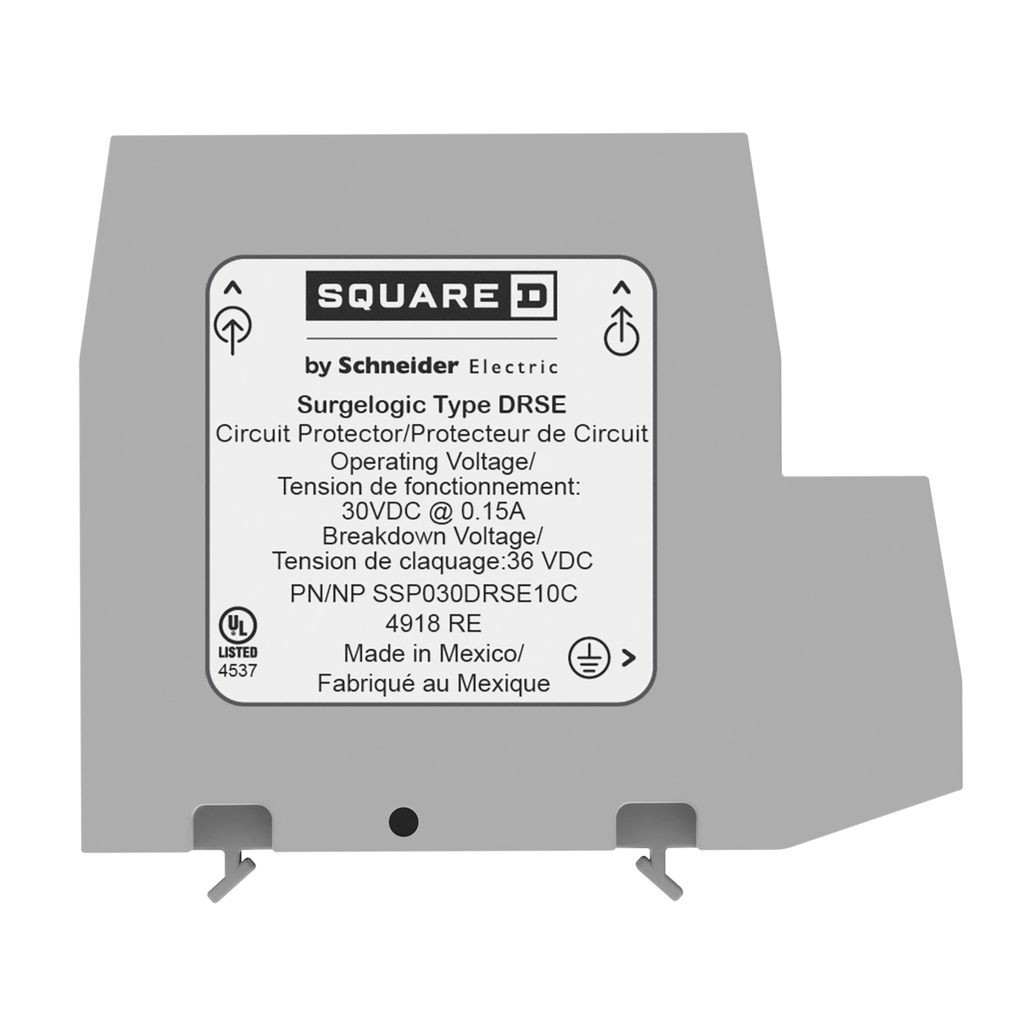

SSP030DRSE10
Surge protection device, Surgelogic, DRSE, 0.15A, 30VDC, 10kA, DIN rail mount
Surgelogic™ Type DRSE offers single pair surge suppression for loads up to 0.15A, implementing three-stage hybrid technology. With a surge current rating of 10,000 Amps and DIN rail mounting, this unit is able to mitigate industrial low voltage data line surges. Voltage spikes are addressed with gas tubes and silicon avalanche components. Using resettable fuses increases the resistance by several orders of magnitude when over-currents exceed safe levels.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 20.3 mm |
| Height | 57.2 mm |
| Product Or Component Type | surge protection device |
| Height | 57.2 mm |
| Surge Current | 10 kA |
| Line Rated Current | 0.15 A |
| Switching Voltage | 36 V DC |
| Width | 20.3 mm |
| Depth | 27.9 mm |
| [Ue] Rated Operational Voltage | 30 V DC |
| Device Mounting | DIN rail |
| Eu Rohs Directive | Under investigation |
