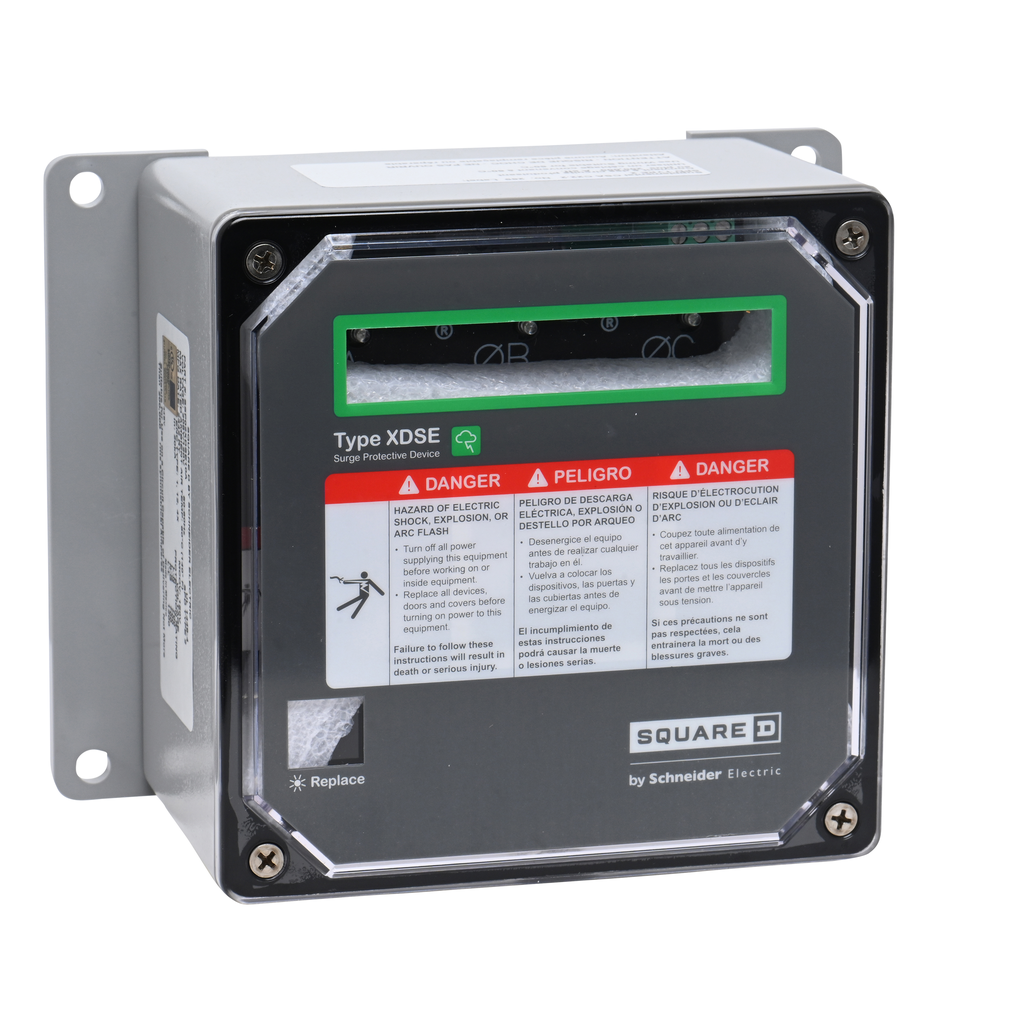

SSP02XDSE10A
Surge protection device, XDSE, 100kA, 208Y/120 VAC, 3 phase, 4 wire, SPD type 2
Surgelogic™ Type XDSE systems are designed to provide highquality surge suppression for a wide variety of commercial, industrial or institutional applications. With a high-energy parallel design, this range is able to provide all modes of suppression at 100,000 peak Amps of surge current rating per phase. Each Metal Oxide Varistor (MOV) is individually fused with patented overvoltage technology to withstand superior overvoltage for systems with unstable power, without compromising transient clamping performance. This unit is intented for installation on the load side of the service equipment using a 3 phase Wye connection for higher reliability.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 152 mm |
|---|---|
| Surge Current | 100 A per phase |
| Phase | 3 phase |
| Input Voltage |
|
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Line Rated Current | 20 kA |
| Width | 152 mm |
| Wiring Configuration | 4-wire |
| Depth | 101 mm |
| [Ue] Rated Operational Voltage | 208Y/120 V AC |
| Country of Origin | Mexico |
| Width | 152 mm |
| Height | 152 mm |
| Product Or Component Type | surge protection device |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Nema Degree Of Protection | NEMA 4X |
