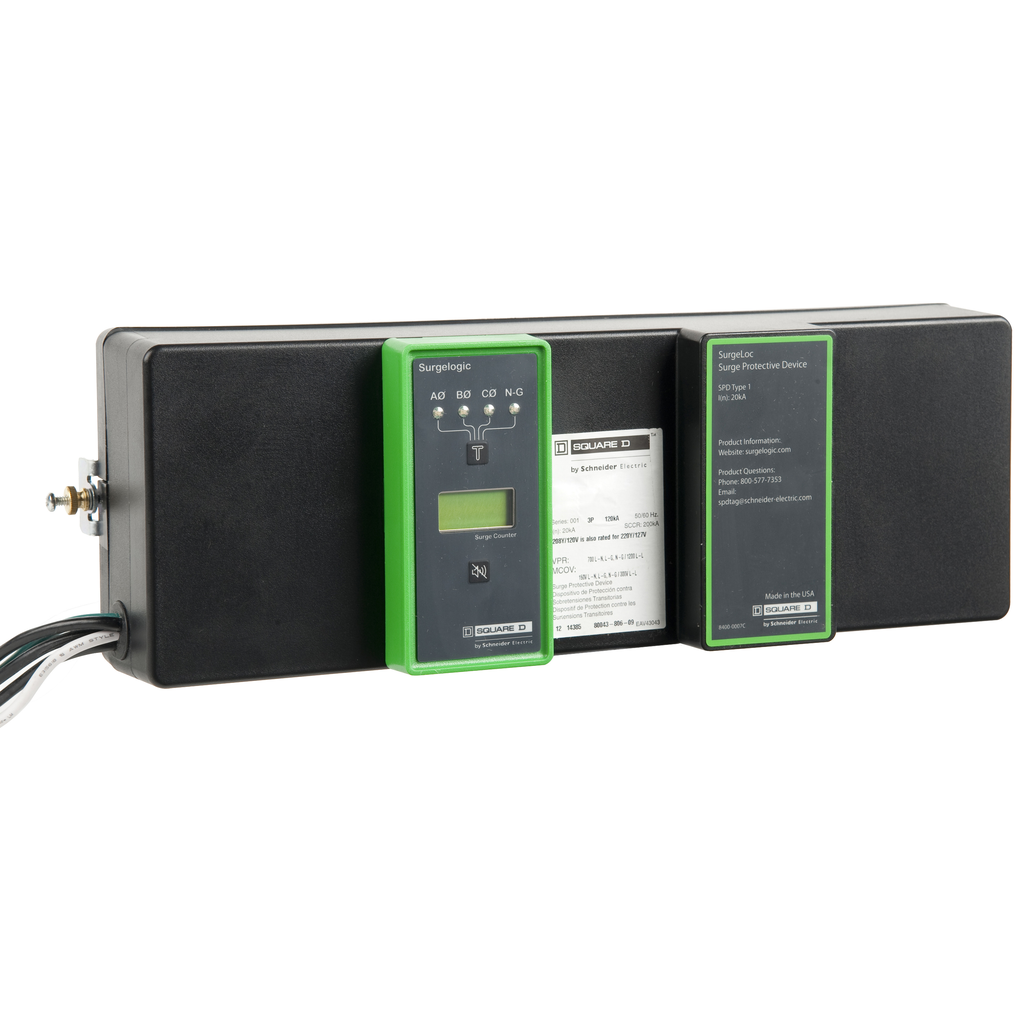

SSP01SBA10D - Surge protection device, Surgelogic, Surgeloc, 100kA, 120/240VAC, 1 phase, 3 wire, SPD type 1

SSP01SBA10D

Surge protection device, Surgelogic, Surgeloc, 100kA, 120/240VAC, 1 phase, 3 wire, SPD type 1

Surgelogic™ Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. Being the industry's first field installable internally mounted SPDs in NQ panelboards, this unit is able to provide a surge current rating of 100,000 Amps. With a surge current rating of 100,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety NQ Panelboards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	111.76 mm
Surge Current	100 kA per phase
Type Of Packing	box
Phase	1 phase
Net Weight	3.67 kg
Input Voltage	600 V N - G 700 V L-N 700 V L - G 1000 V L - L
Short-Circuit Protection	200 kA
[Uc] Maximum Continuous Operating Voltage	150 V
Wiring Configuration	3-wire
Width	454.66 mm
Depth	175.26 mm
[Ue] Rated Operational Voltage	120/240 V AC
Nema Degree Of Protection	NEMA 1
Country of Origin	Mexico
Width	454.66 mm
Height	111.76 mm
Weight	3.67 kg
Range Of Product	Surgelogic
Product Or Component Type	surge protection device
Rohs Exemption Information	Yes
Mercury Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
