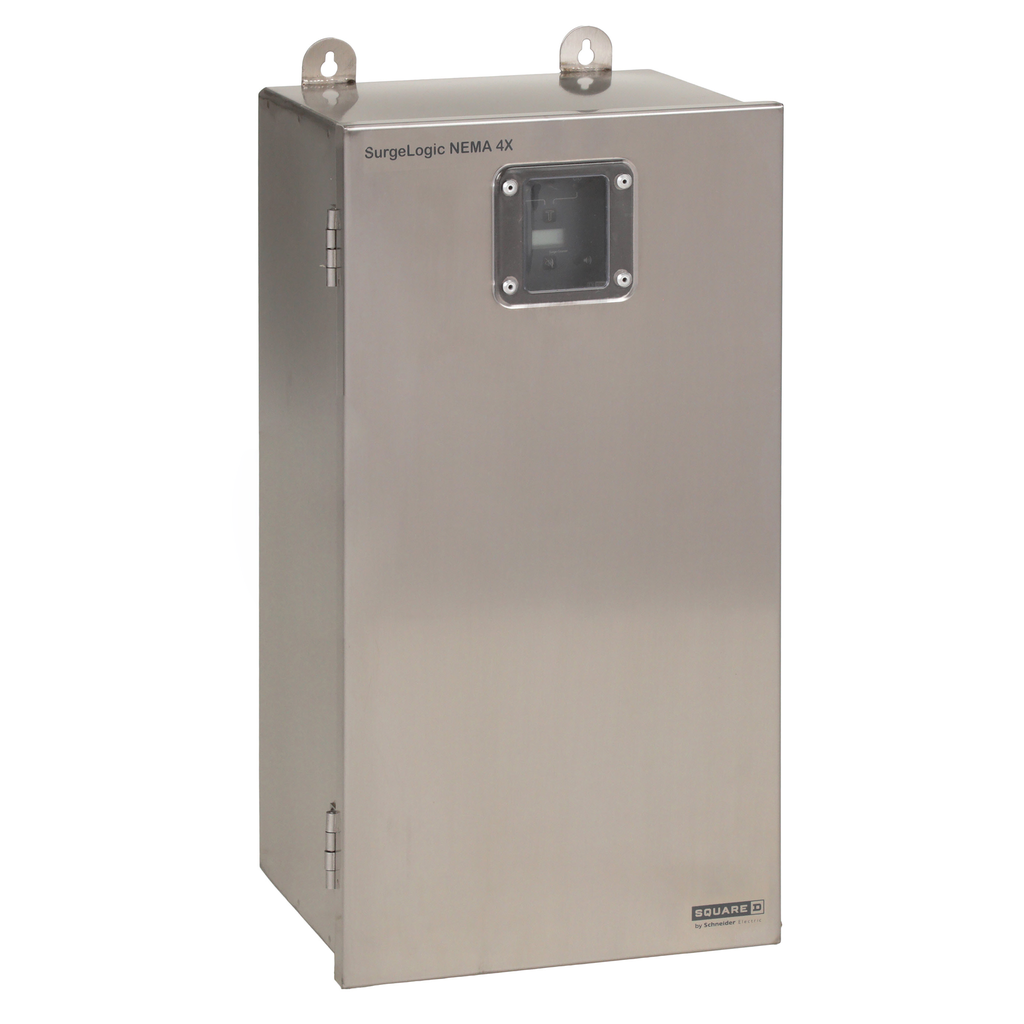

Surge protection device, Surgelogic, 240kA, 120/240VAC, 1 phase, 3 wire, NEMA 4X
Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration, enhanced EMI/RFI filtering with sine wave tracking in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. This surge protection device is 1 phase, 3-wire + ground, 120/240 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. It has 10 year product warranty and 10 modes of protection.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 575.8 mm |
|---|---|
| Connections - Terminals | lugs AWG 10...AWG 2 copper 4 N.m |
| Cable Length | 483 mm |
| Provided Equipment |
|
| Surge Current | 240 kA |
| Nominal Discharge Current | 20 kA |
| Phase | 1 phase |
| Local Signalling |
|
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 150 V |
| Width | 297.2 mm |
| Wiring Configuration | 3-wire |
| Depth | 238.8 mm |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Device Mounting | surface |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | Mexico |
| Length | 483 mm |
| Width | 297.2 mm |
| Height | 575.8 mm |
| Range Of Product | Surgelogic |
| Product Or Component Type | surge protection device |
| Device Short Name | EMA |
| Ambient Air Temperature For Operation | 65-65 °C |
| Standards |
|
| Nema Degree Of Protection | NEMA 4X |
| Enclosure Material | Stainless Steel |
