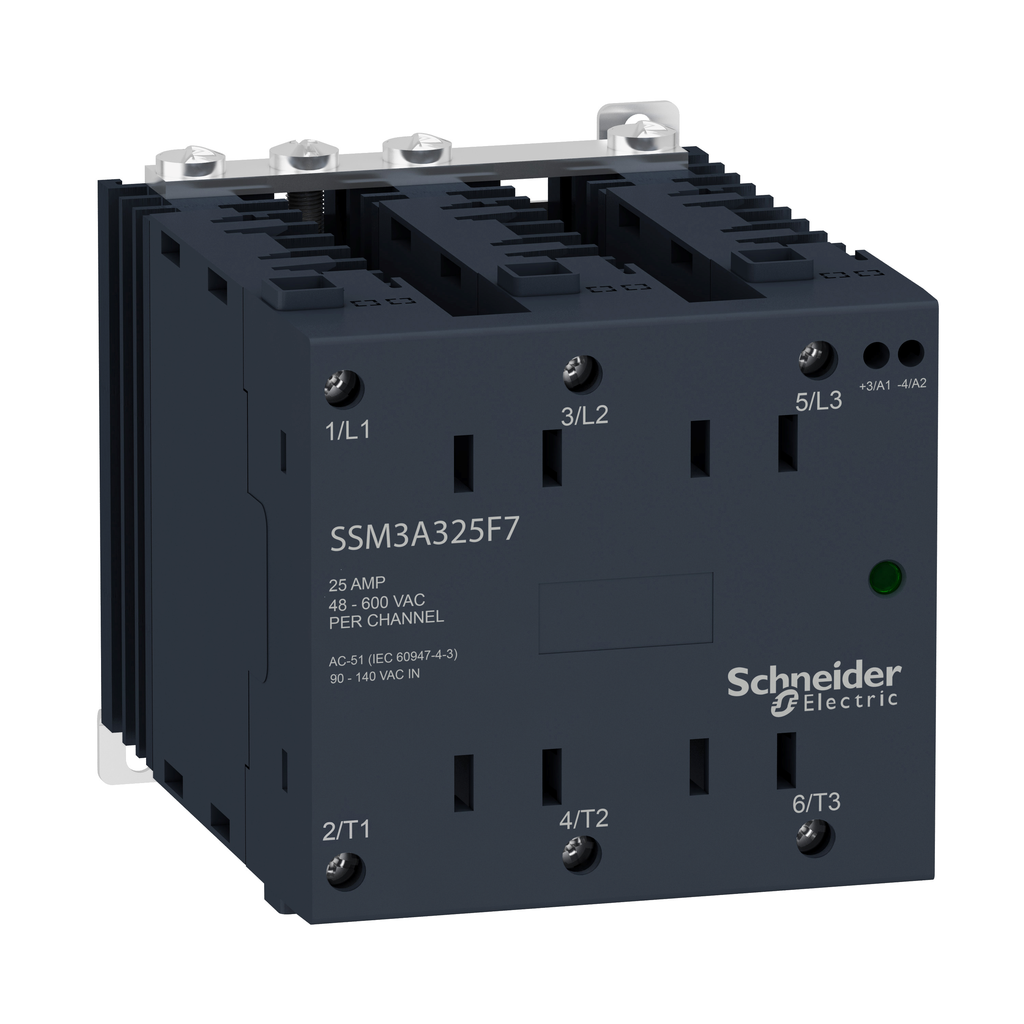

pre Assembled, Harmony Solid State Relays, 25A, DIN rail mount, zero voltage switching, input 180...280V AC, output 48...600V AC
This product is part of the Harmony Solid State Relays range, an offer of panel mount solid state relays. The 1-phase solid state relay features zero voltage switching. It is an automation relay with a control circuit voltage of 180V to 280V AC and a switching voltage of 10V turn on and 180V turn off. This solid state modular relay operates with an output voltage of 48V to 660V AC. It offers screw terminals of 0.2mm² to 1.3mm², (AWG 24 to AWG 16) for input and 1.3mm² to 5.3mm², (AWG 16 to AWG 10) for output connections. It is an IP20 rated product. Its dimensions are 88mm (width) x 90mm (depth) x 123.8mm (height). It weighs 0.74kg. It is suitable for packaging machines, heating control, injection molding, HVAC, textile machines and medical equipment applications. This product is certified by UL, CSA, EAC and CE marking. It meets IEC 60950-1, CSA C22.2 No 14 and UL 508 standards. It supports symmetrical DIN rail mount. Harmony Solid State Relays are the complete solution for 1 phase and 3 phase, slim, modular DIN rail and panel mount offer. SSR relays offer slim interfaces, modular DIN rail and panel mount relays. A complete, innovative and compact solution for industrial applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Cos Phi | 0.5-0.5 (with maximum load) |
|---|---|
| [Uc] Control Circuit Voltage | 180...280 V AC |
| Output Voltage | 48...600 V AC |
| Maximum Horse Power Rating |
|
| Tightening Torque |
|
| Insulation Resistance | 1000 MOhm |
| Mounting Support | symmetrical DIN rail |
| Maximum I²T For Fusing |
|
| Maximum Voltage Drop | <1.35 V on-state |
| Connections - Terminals |
|
| Surge Current |
|
| Response Time |
|
| Load Current | 0.1-25 A |
| Net Weight | 0.74 kg |
| Maximum Leakage Current | 0.25 mA off-state |
| Control Type | without test button |
| Absolute Maximum Voltage | 1100 V |
| Dv/Dt | 500 V/µs off-state at maximum voltage |
| Local Signalling | for input status LED (green) |
| Solid State Output Type | zero voltage switching |
| Capacitance Unbalance | 8 pF for input/output |
| Line Rated Current | 25 A |
| Switching Voltage |
|
| Width | 90 mm |
| Input Current Limits | 19-24 mA |
| Overvoltage Category | III |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-60 °C |
| Standards |
|
| Pollution Degree | 2 |
| Dielectric Strength |
|
| Marking |
|
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -40-100 °C |
| Country of Origin | United States |
| Width | 90 mm |
| Weight | 0.74 kg |
| Range Of Product | Harmony Solid State Relays |
| Output Switching Mode | zero voltage switching |
| Product Or Component Type | modular DIN rail relay |
| Phase | 3 phase |
| Number Of Channels | 3 |
| Device Short Name | SSM3 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
