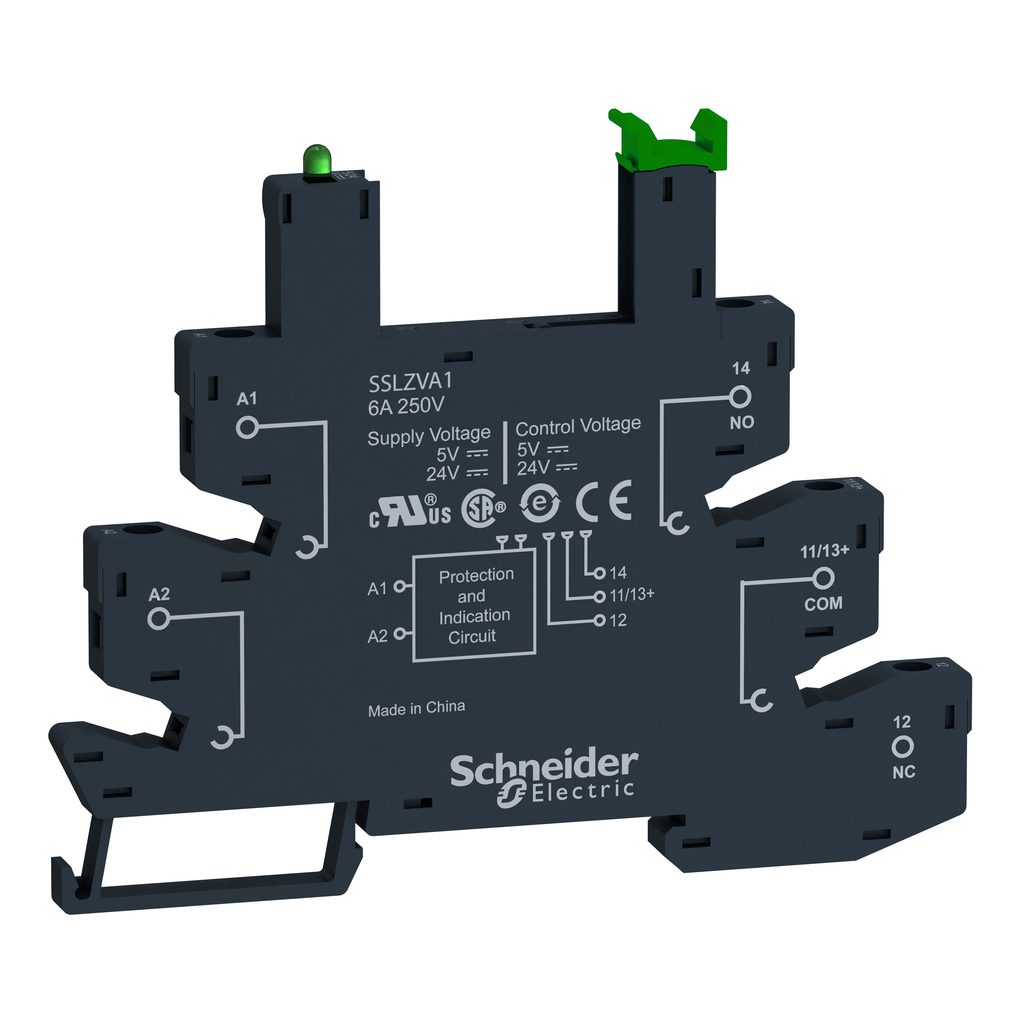

SSLZVA1
socket equipped with LED and protection circuit, Harmony Solid State Relays, for SSL relays, screw connec to rs, 5 to 24V DC
This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | China |
|---|---|
| Width | 6.2 mm |
| Height | 101 mm |
| Weight | 0.0285 kg |
| [Ith] Conventional Free Air Thermal Current | 6 A |
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | socket for SSL1 |
| Product Compatibility |
|
| Switching Voltage |
|
| Device Short Name | SSLZ |
| [Ue] Rated Operational Voltage | < 250 V DC |
| Height | 101 mm |
| Tightening Torque | < 0.4 N.m M2.5 |
| Shape Of Pin | flat |
| Contact Terminal Arrangement | separate |
| Net Weight | 0.0285 kg |
| Fixing Mode | clip-on (35 mm DIN rail) |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 10 |
| Local Signalling | for input status LED (green) |
| Width | 6.2 mm |
| Depth | 78.6 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1405004EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1405004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards | IEC 61984 |
| Marking | CE |
| Flame Retardance | V0 conforming to UL 94 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Ip Degree Of Protection | IP20 |
