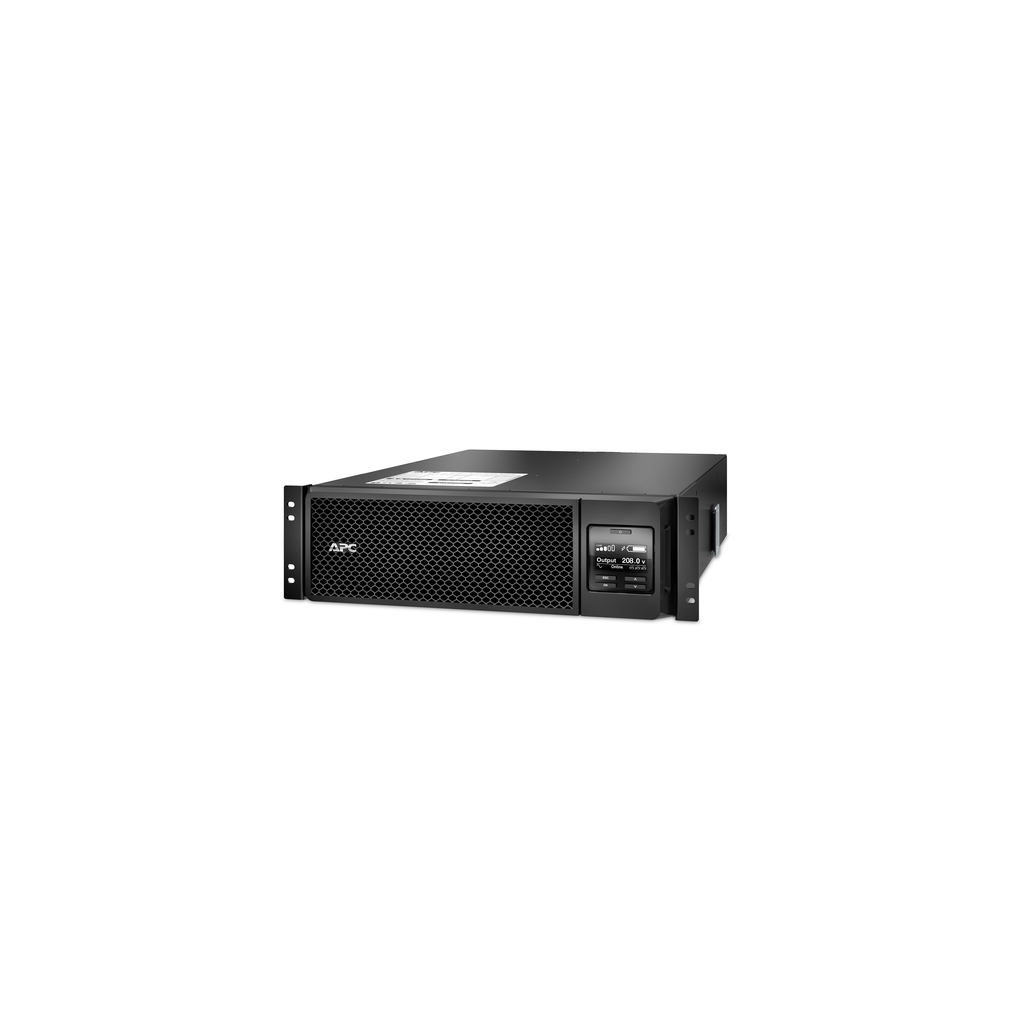

APC Smart-UPS On-Line, 5.4kVA, Rackmount 3U, 208V, 2x L6-20R+2x L6-30R NEMA outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5.4kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
| Alarm | audible and visible alarms : prioritized by severity |
| Free Slots | 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1512017_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Optimized Energy Efficiency | Energy efficient product |
| Energy Star® | ENERGY STAR UPS V2.0 (USA) |
| Circularity Profile | ENVEOLI1512017_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 13 cm |
| Usb Compatible | Yes |
| Net Weight | 55.79 kg |
| Mounting Location | front |
| Mounting Mode | rack-mounted |
| Mounting Position | horizontal |
| Color | Black |
| Width | 43.2 cm |
| Depth | 71.9 cm |
| Input Frequency | 40 - 70 Hz auto-sensing |
| Efficiency At Full Load | 100...275 V adjustable (half load) |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Harmonic Distortion | Less than 2% |
| Crest Factor | 3 : 1 |
| Battery Life | 3-5 year(s) |
| Battery Voltage | 192V |
| Battery Type | Lead-Acid battery |
| Storage Relative Humidity | 0-95 % non-condensing |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 1047 Btu/h |
| Relative Humidity | 0-95 % non-condensing |
| Acoustic Level | 55 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually in Stock |
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
| Additional Specification | high density |
| Country of Origin | Philippines |
| Length | 10 ft |
| Width | 43.2 cm |
| Height | 13 cm |
| Weight | 55.79 kg |
| Other Input Voltages | 240 V |
| Number Of Cables | 1 |
| Range Of Product | Smart-UPS On-Line |
| Cable Length | 10 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 5400 VA |
| Provided Equipment |
|
| Main Input Voltage | 208 V |
| Number Of Rack Unit | 3U |
| Kw Rating | 4800 W |
| Other Output Voltages | 240 V |
