SR3XT43BD - analogue IO extension module, Zelio Logic SR2 SR3, 4 IO, 24V DC

SR3XT43BD

analogue IO extension module, Zelio Logic SR2 SR3, 4 IO, 24V DC

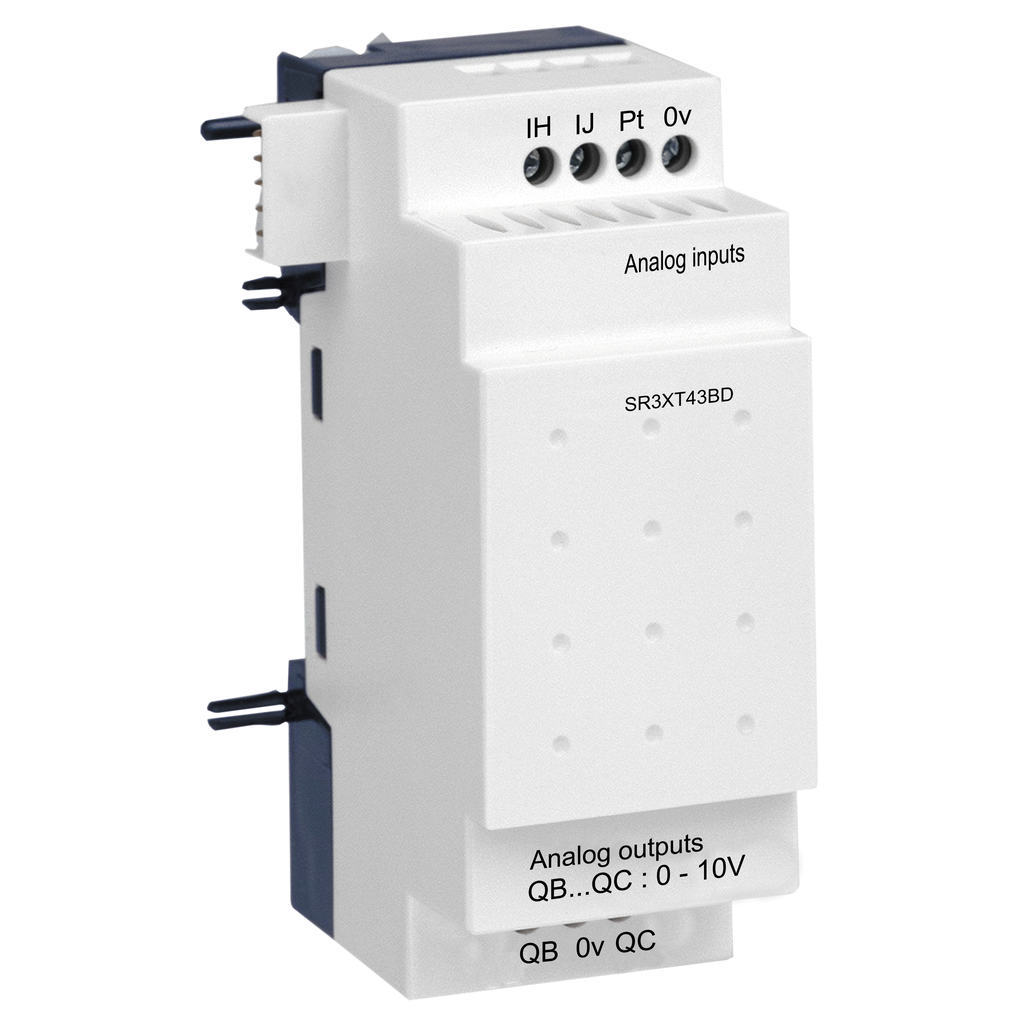

This Schneider Electric Zelio Logic SR3 Analog I/O Extension Module Smart Relays uses a supply voltage of 24 volts direct current, has 4 inputs / outputs contact with screw-clamp terminals. This Analog I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. This product meets EN/IEC 61000-4-12, EN/IEC 61000-4-5, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 60068-2-27 Ea standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GOST UL C-tick CSA
Standards	IEC 61000-4-12 IEC 61000-4-5 IEC 61000-4-3 IEC 61000-4-4 level 3 IEC 61000-4-6 level 3 IEC 61000-4-2 level 3 IEC 60068-2-6 Fc IEC 61000-4-11 IEC 60068-2-27 Ea
Disturbance Radiated/Conducted	class B IEC 55022-11 Group 1
Ambient Air Temperature For Operation	-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental Characteristic	EMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Ip Degree Of Protection	IP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Pollution Degree	2 IEC 61131-2
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % without condensation or dripping water
Maximum Altitude Transport	3048 m
Operating Altitude	6561.68 ft (2000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2011013EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2011013EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Lsb Value	0.15 °C, - 25...125 °C analogue input circuit 20 µA, 0...20 mA analogue input circuit 9.8 mV, 0...10 V analogue input circuit 9.8 mV, 0...10 V analogue output
Input Impedance	18 kOhm 0...10 V analogue input circuit 247 Ohm 0...20 mA analogue input circuit
Maximum Load Current	10 mA analogue output
Analogue Input Range	0...10 V 0...20 mA -25...125 °C
Conversion Error	+/- 1 % of the full scale value 0...10 V 25 °C)analogue output +/- 1 % of the full scale value 0...10 V 55 °C)analogue output +/- 1 % 0...10 V 25 °C)analogue input circuit +/- 1 % 0...10 V 55 °C)analogue input circuit +/- 1 % 0...20 mA 25 °C)analogue input circuit +/- 1 % 0...20 mA 55 °C)analogue input circuit +/- 1.5 °C - 25...125 °C 25 °C)analogue input circuit +/- 1.5 °C - 25...125 °C 55 °C)analogue input circuit
Analogue Input Type	common mode
Analogue Output Range	0...10 V
Net Weight	0.11 kg
Conversion Time	smart relay cycle time analogue input circuit smart relay cycle time analogue output
Analogue Output Resolution	10 bits on the output range
Connections - Terminals	screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Analogue Input Number	2
Analogue Output Number	2
Short-Circuit Protection	with analogue output
Operating Distance	10 m with screened cable analogue input circuit 10 m with screened cable analogue output
Reverse Polarity Protection	analogue input circuit with
Tightening Torque	0.5 N.m
Temperature Probe Type	Pt 100, 3-wire IEC 751
Analogue Input Resolution	10 bits on the input range
[Imp] Maximum Permanent Current	30 mA analogue input circuit
Maximum Permissible Voltage	30 V analogue input circuit
Load Type	resistive analogue output
Repeat Accuracy	< +/- 0.3 °C - 25...125 °C 25 °C analogue input circuit <= +/- 1 % 0...10 V 25 °C analogue input circuit <= +/- 1 % 0...10 V 55 °C analogue output <= +/- 1 % 0...20 mA 25 °C analogue input circuit
Country of Origin	France
Weight	0.11 kg
Range Of Product	Zelio Logic
Product Or Component Type	analogue I/O extension module

analogue IO extension module, Zelio Logic SR2 SR3, 4 IO, 24V DC
