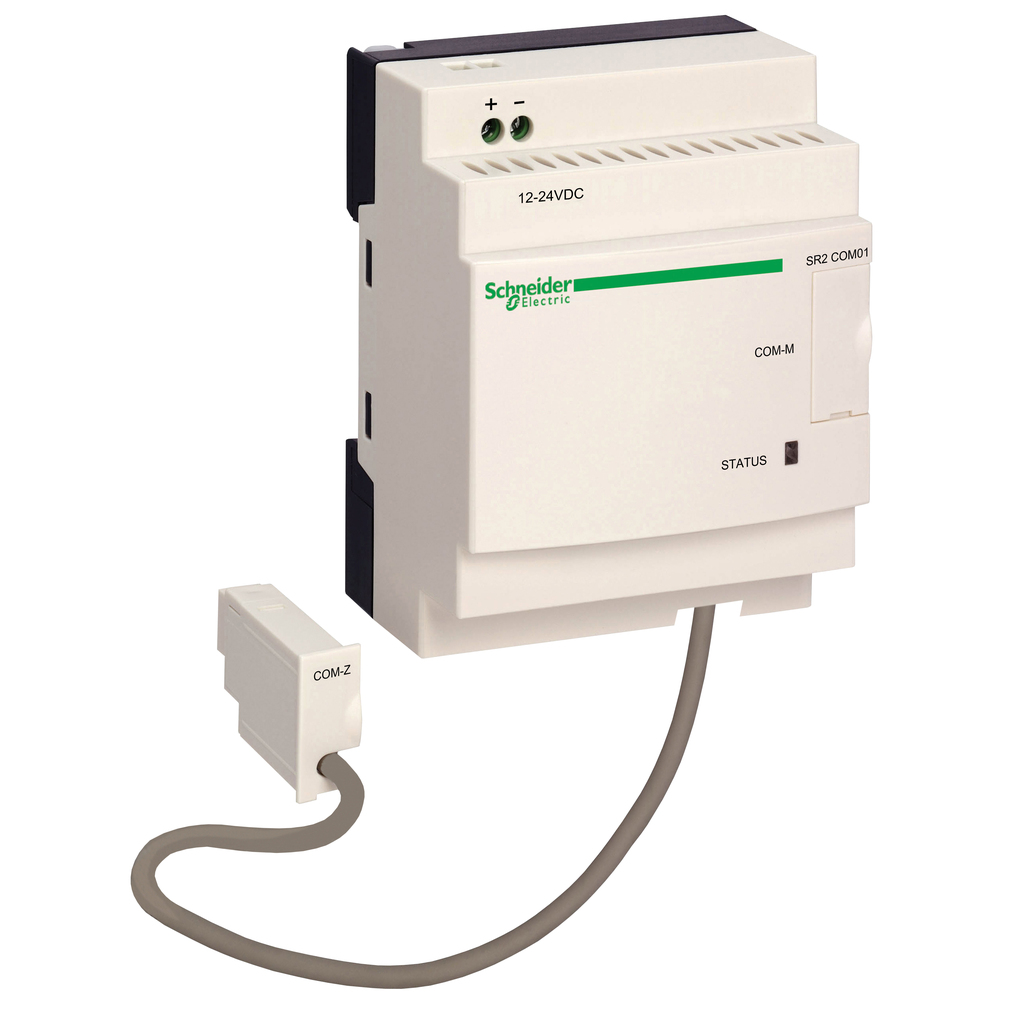

SR2COM01 - Modem communication interface, Zelio Logic, for smart relay

SR2COM01

Modem communication interface, Zelio Logic, for smart relay

This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	GOST CSA C-tick UL
Standards	IEC 61000-4-11 IEC 61000-4-3 IEC 60068-2-27 Ea IEC 61000-4-4 level 3 IEC 61000-4-12 IEC 61000-4-5 IEC 61000-4-2 level 3 IEC 61000-4-6 level 3 IEC 60068-2-6 Fc
Disturbance Radiated/Conducted	class B IEC 55022-11 Group 1
Ambient Air Temperature For Operation	-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental Characteristic	EMC directive IEC 61000-6-2 EMC directive IEC 61000-6-3 EMC directive IEC 61000-6-4 EMC directive IEC 61131-2 zone B low voltage directive IEC 61131-2
Ip Degree Of Protection	IP20 IEC 60529 terminal block) IP40 IEC 60529 front panel)
Pollution Degree	2 IEC 61131-2
Ambient Air Temperature For Storage	-40-70 °C
Relative Humidity	95-95 % without condensation or dripping water
Maximum Altitude Transport	3048 m
Operating Altitude	6561.68 ft (2000 m)
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060406EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI0604006EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection	1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
Net Weight	0.2 kg
Electrical Data Recording	discrete and digital value telephone/e-mail date and time
Connections - Terminals	screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Function Available	update firmware monitoring send alarm to e-mail address send alarm/receive instruction transfer program
Supply Voltage Limits	10-28.8 V
Power Dissipation In W	1.1 W
Maximum Supply Current	30 mA 12 V 30 mA 24 V 550 A
Tightening Torque	0.5 N.m
Product Compatibility	SR2E..... SR.B.....
Kit Composition	1 x SR2CBL07 modem communication interface
Number Of Messages	28
Reverse Polarity Protection	with
Insulation	1780 V optocoupler Com-Z specific to Zelio by the cable SR2 CBL07 Com-M specific to Zelio
Associated Fuse Rating	1 A
[Us] Rated Supply Voltage	12...24 V DC
Country of Origin	France
Weight	0.2 kg
Range Of Product	Zelio Logic
Product Or Component Type	modem communication interface
Data Backed Up	flash memory
