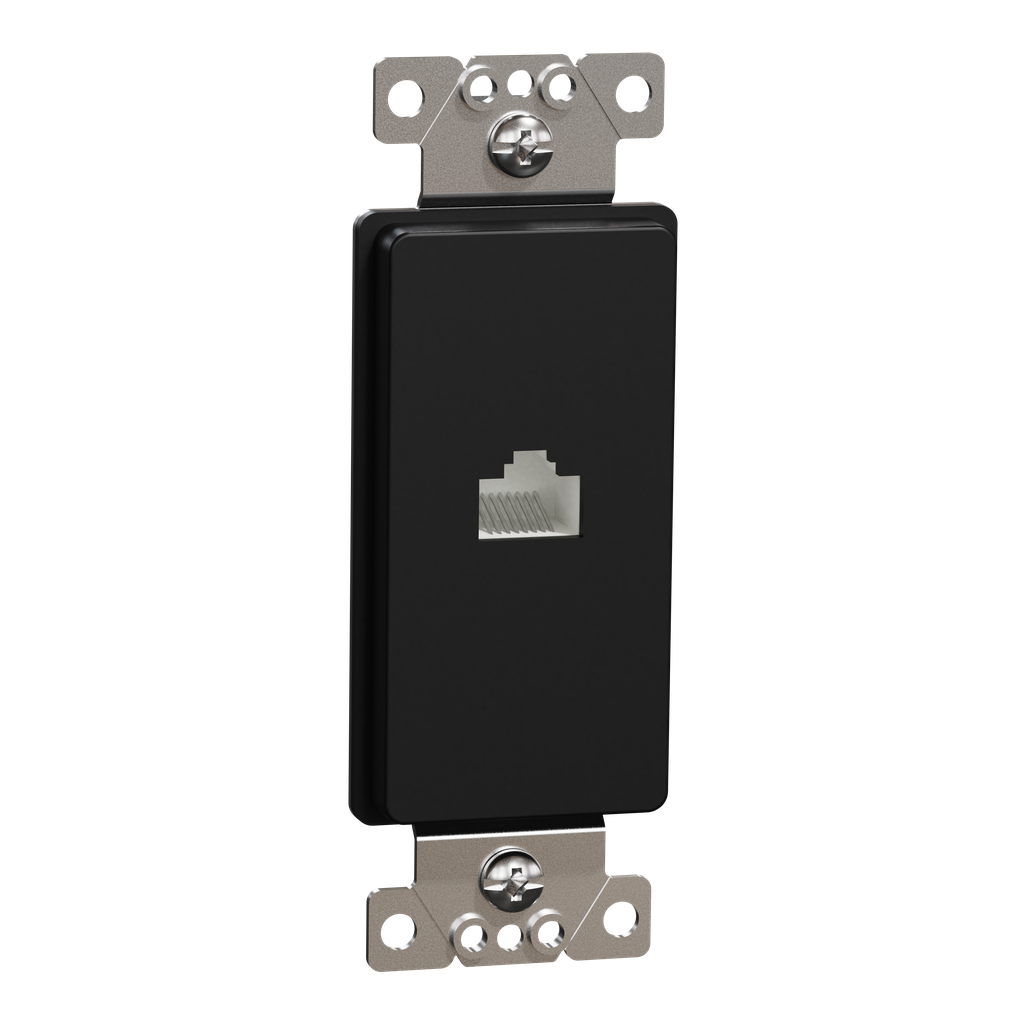

Data socket, X Series, RJ45, Cat 6, UTP, black, matte finish
The Square D X Series Category 6 RJ45 Data Jack Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your data networking with cat 6 insert and benefits from RJ45 connector. The mechanism with fixing frame belongs to X Series aesthetic group. It fits in any decorator opening and is easy to clean. It fits in any decorator opening and is easy to clean. This combination decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. This device is compatible with any CAT6 cable for ethernet connection and other networks. It features a 110 punchdown with stuffer cap for wire retention. It has a width of 37 mm, a height of 103 mm and a depth of 33 mm. By satisfying the UL 1863 standard, this data back decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 33mm. This device is black with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | ETL verified |
|---|---|
| Standards | UL 1863 |
| Warranty | 2 years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant |
| Number Of Contact Position | 8 |
| Height | 103 mm |
| Device Mounting | flush |
| Number Of Gangs | 1 gang |
| Contacts Material | phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| Surface Finish | Matte |
| Surface Treatment | painted |
| Number Of Contacts | 8 |
| Cable Shielding Type | UTP |
| Type Of Cable | 4 pairs cable |
| Mounting Mode | by screws |
| Color | Black |
| Material |
|
| Quantity Per Set | 1 piece |
| Awg Gauge |
|
| Communication Network Category | 6 |
| Width | 37 mm |
| Depth | 33 mm |
| Colour Code | 568 A/B |
| Country of Origin | China |
| Width | 37 mm |
| Height | 103 mm |
| Aesthetic Name | X Series |
| Product Or Component Type | data socket |
| Range | Square D X Series |
| Device Presentation | mechanism with fixing frame |
| Device Application | communication |
