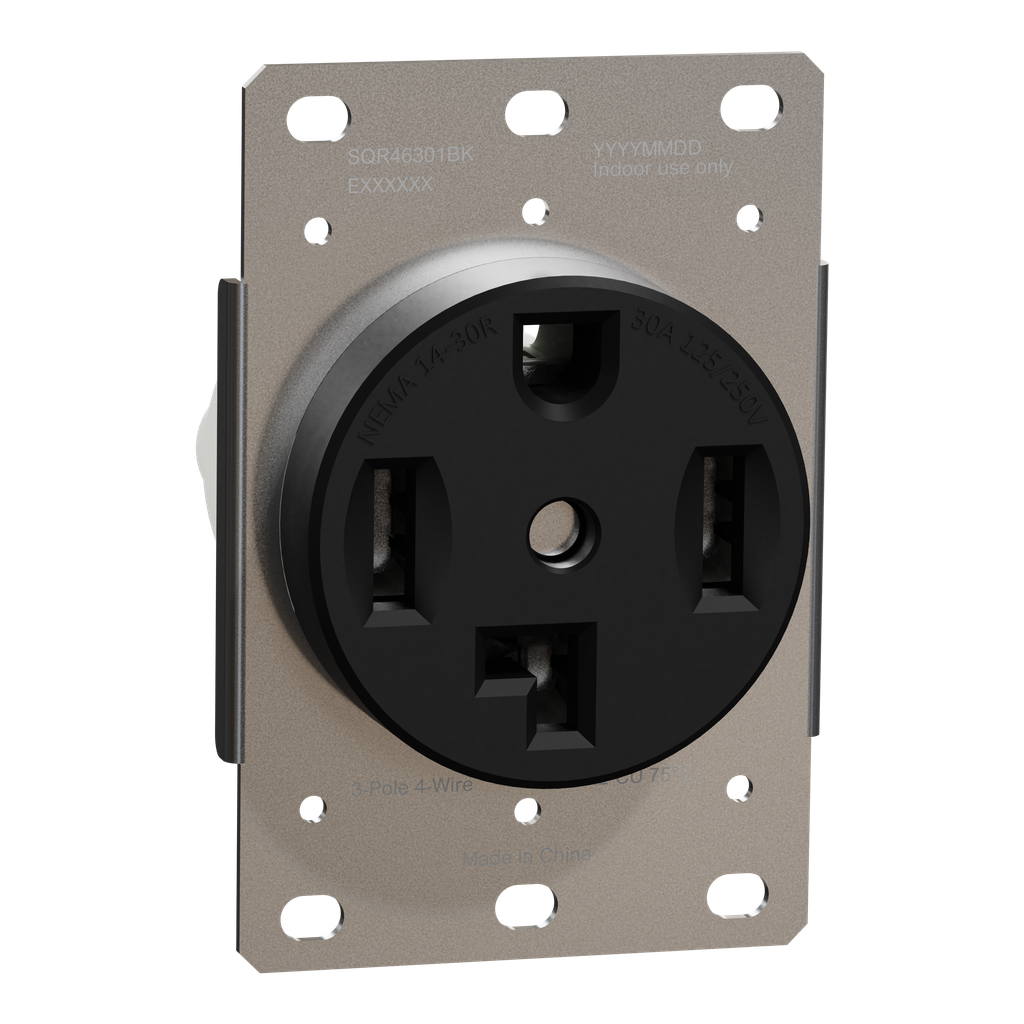

Socket-outlet, X Series, 30A, standard, for dryer, commercial, black, matte finish
The Square D X Series 30A 125/250V Dryer Outlet provides a fast, safe way to upgrade your home's devices. This outlet socket has a 30A current rating. The rated operational voltage of this device is 125/250VAC. A heavy gauge steel mounting strap is ideal for corrosion resistance. It fits in either one or two gang boxes. This socket outlet has a black frame. Its Ue rated operational voltage is 125/250VAC. Its Ie rated operational current is 30A. By satisfying the NEMA 14-30R, UL 498 standards, this socket outlet is cULus certified. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Its mounting box can be recessed into the surface of the wall for flush mounting. The dimensions are (W) 64mm (2.52in) x (H) 95mm (3.74in) x (D) 57mm (2.24in). This device is black with matte surface finish. This device is compliant with NEMA 14-30R, UL 498 standard and cUlus certification.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Standards |
|
| Warranty | 2 years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011022_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2011022_V1 |
| Eu Rohs Directive | Compliant |
| Network Frequency | 60 Hz |
| Height | 95 mm |
| Number Of Modules | 1 |
| Device Mounting | flush |
| Number Of Gangs |
|
| Network Type | AC |
| Surface Finish | Matte |
| Surface Treatment | painted |
| Connections - Terminals |
|
| Mounting Mode | by screws |
| [Ie] Rated Operational Current Ac | 30 A |
| Color | Black |
| Material |
|
| Quantity Per Set | 1 piece |
| Width | 64 mm |
| Depth | 57 mm |
| [Ue] Rated Operational Voltage |
|
| Country of Origin | China |
| Width | 64 mm |
| Height | 95 mm |
| Product Destination | dryer |
| Socket Number | 1 |
| Aesthetic Name | X Series |
| Product Or Component Type | socket-outlet |
| Range | Square D X Series |
| Device Presentation | mechanism with fixing frame |
| Body Type | standard |
| Outlet Standard | NEMA |
| Device Application | power supply |
| Outlet Poles Configuration | 3P + E |
