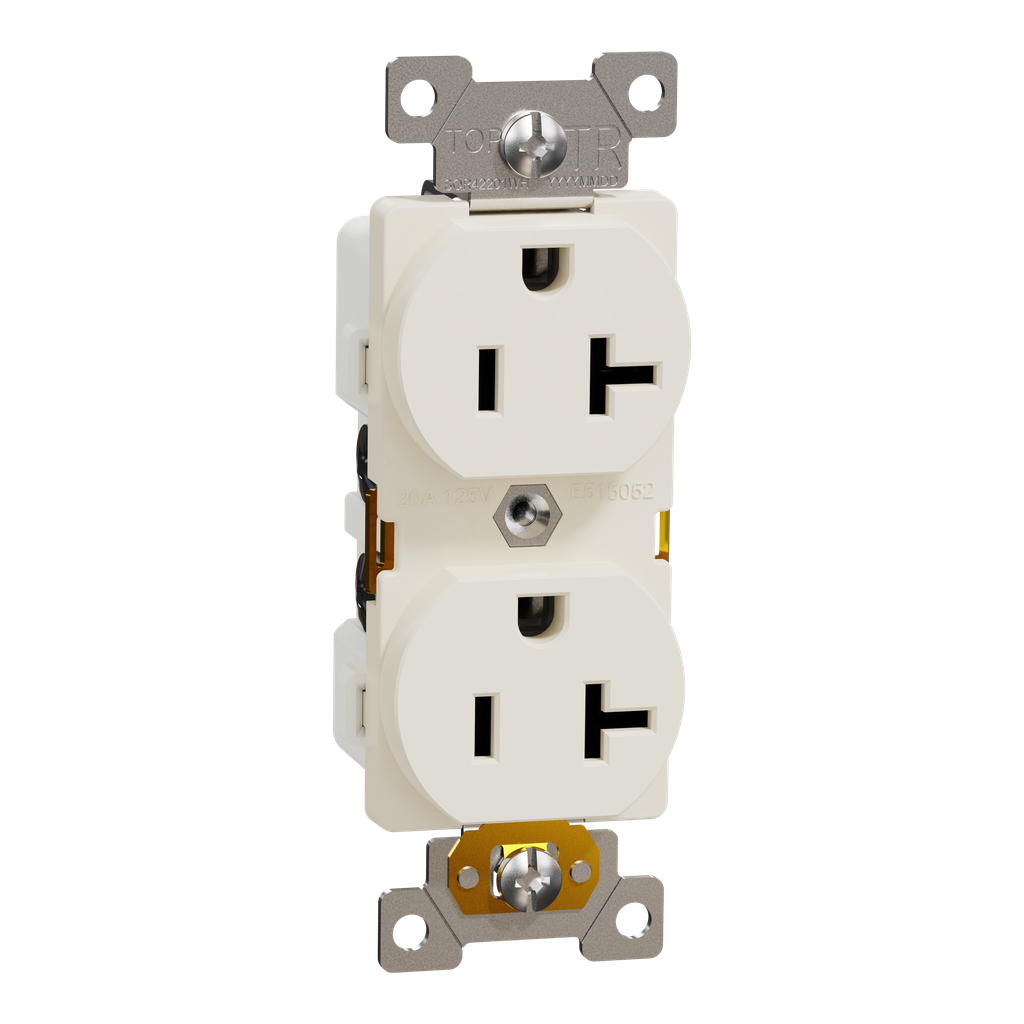

Socket-outlet, X Series, 20A, standard, duplex, tamper resistant, commercial, light almond, matte finish
The Square D X Series 20A 125V Tamper Resistant Heavy Duty Duplex Receptacle provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy fast wiring with back pressure plates and a self-grounding clip. The outlet is commercial grade, ideal for devices that stay plugged in. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 20A. This device is light almond with a matte surface finish.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Standards |
|
| Warranty | 2 years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011022_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2011022_V1 |
| Eu Rohs Directive | Compliant |
| Network Frequency | 60 Hz |
| Height | 103 mm |
| Number Of Modules | 1 |
| Device Mounting | flush |
| Number Of Gangs | 1 gang |
| Network Type | AC |
| Surface Finish | Matte |
| Connections - Terminals |
|
| Mounting Mode | by screws |
| [Ie] Rated Operational Current Ac | 20 A |
| Color | light almond |
| Earth Circuit | self earthing |
| Material |
|
| Quantity Per Set | 1 piece |
| Width | 37 mm |
| Depth | 27 mm |
| [Ue] Rated Operational Voltage | 125 V |
| Country of Origin | China |
| Width | 37 mm |
| Height | 103 mm |
| Socket Number | 2 |
| Aesthetic Name | X Series |
| Product Or Component Type | socket-outlet |
| Socket Additional Information | tamper resistant |
| Range | Square D X Series |
| Device Presentation | mechanism with fixing frame |
| Body Type | standard |
| Outlet Standard | NEMA |
| Device Application | power supply |
| Outlet Poles Configuration | 2P + E |
