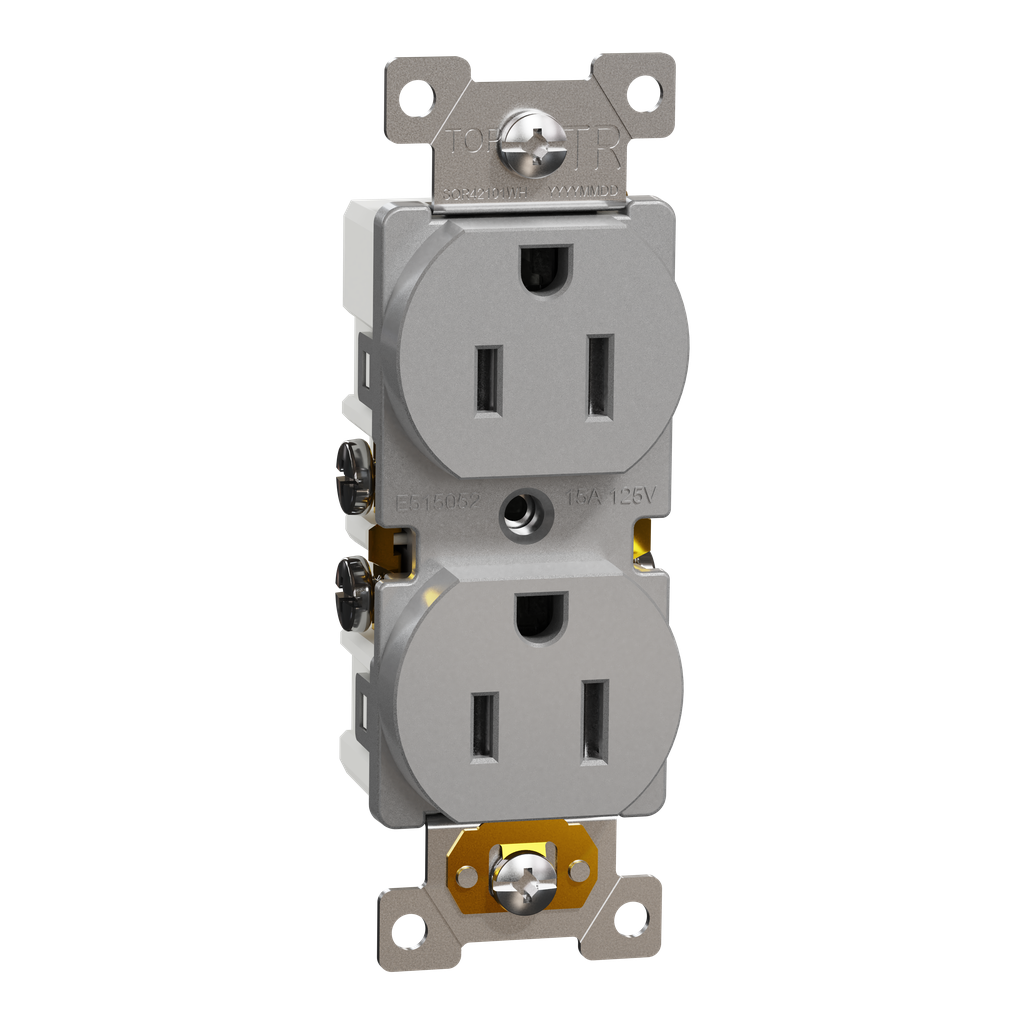

The Square D X Series 15A 125V Tamper Resistant Duplex Receptacle provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Enjoy fast wiring with push-in terminals and a self-grounding clip. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 15A. The color of this device is grey with a matte surface finish.
Brand: Schneider Electric
Add to Quote Catalogue| Product Certifications | cULus |
|---|---|
| Standards |
|
| Warranty | 2 years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011022_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2011022_V1 |
| Eu Rohs Directive | Compliant |
| Network Frequency | 60 Hz |
| Height | 103 mm |
| Number Of Modules | 1 |
| Device Mounting | flush |
| Number Of Gangs | 1 gang |
| Network Type | AC |
| Surface Finish | Matte |
| Connections - Terminals |
|
| Mounting Mode | by screws |
| [Ie] Rated Operational Current Ac | 15 A |
| Color | Gray |
| Earth Circuit | self earthing |
| Material |
|
| Quantity Per Set | 1 piece |
| Width | 37 mm |
| Depth | 27 mm |
| [Ue] Rated Operational Voltage | 125 V |
| Country of Origin | China |
| Width | 37 mm |
| Height | 103 mm |
| Socket Number | 2 |
| Aesthetic Name | X Series |
| Product Or Component Type | socket-outlet |
| Socket Additional Information | tamper resistant |
| Range | Square D X Series |
| Device Presentation | mechanism with fixing frame |
| Body Type | standard |
| Outlet Standard | NEMA |
| Device Application | power supply |
| Outlet Poles Configuration | 2P + E |
