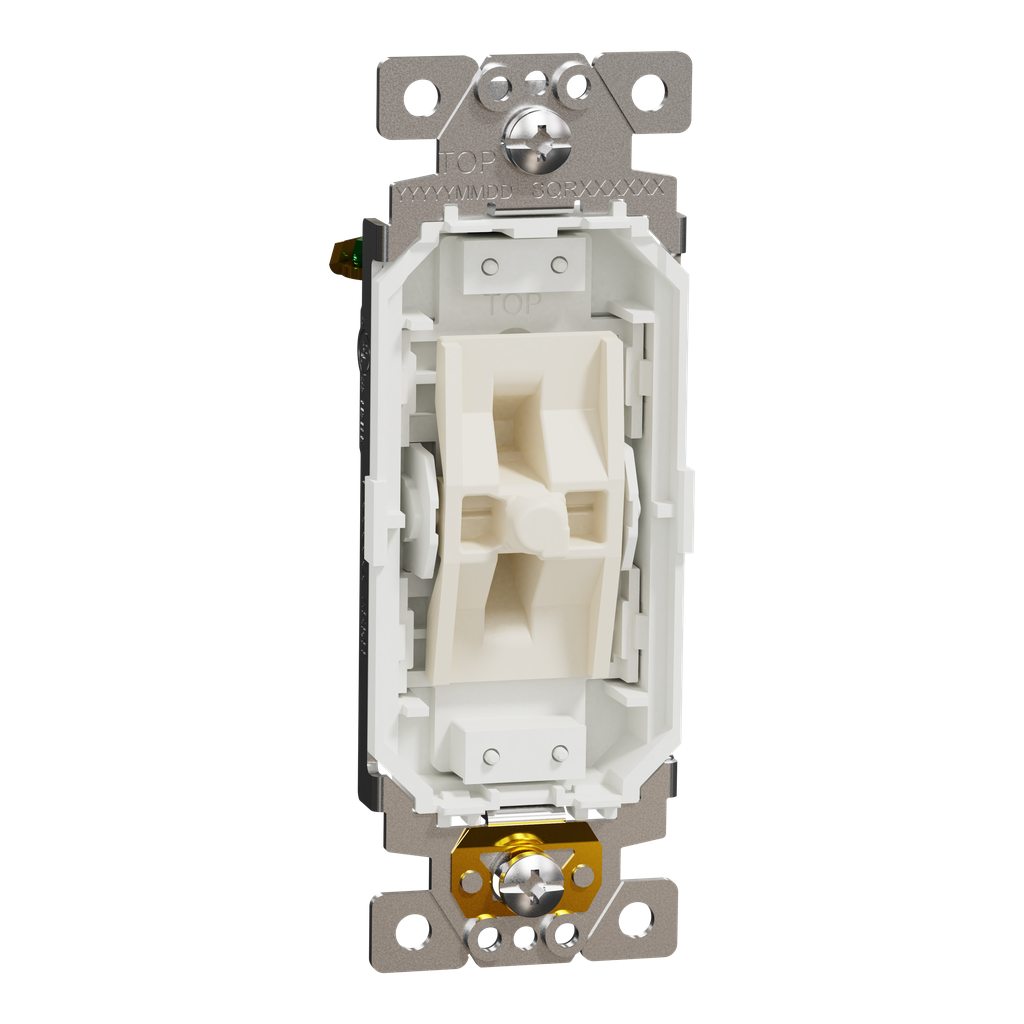

SQR14231XX
Switch module, X Series, 20A, single pole, 3 way
The Square D X Series 20A 3-way Switch Module with Back Wire Clamps allows you to swap out faceplates quickly and easily without removing the switch and rewiring. Its unique patented switch module is designed to support the swap-out of color rocker plate cover plate (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 20A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 37mm. This product comes with 1 piece per pack.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Standards | UL 20 |
| Warranty | 2 years |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Network Frequency | 60 Hz |
| Actuator | dolly |
| Number Of Modules | 1 |
| Device Mounting | flush |
| Number Of Gangs | 1 gang |
| Network Type | AC |
| Surface Finish | Matte |
| Connections - Terminals |
|
| Targeted Channel | distributor |
| Mounting Mode | by screws |
| [Ie] Rated Operational Current Ac | 20 A |
| Earth Circuit | self earthing |
| Material |
|
| Switch Function | 3-way |
| Market Segment | commercial |
| [Ue] Rated Operational Voltage |
|
| Number Of Poles | 1 |
| Country of Origin | China |
| Aesthetic Name | X Series |
| Product Or Component Type | switch |
| Range | Square D X Series |
| Device Presentation | mechanism with fixing frame |
| Device Application | control |
