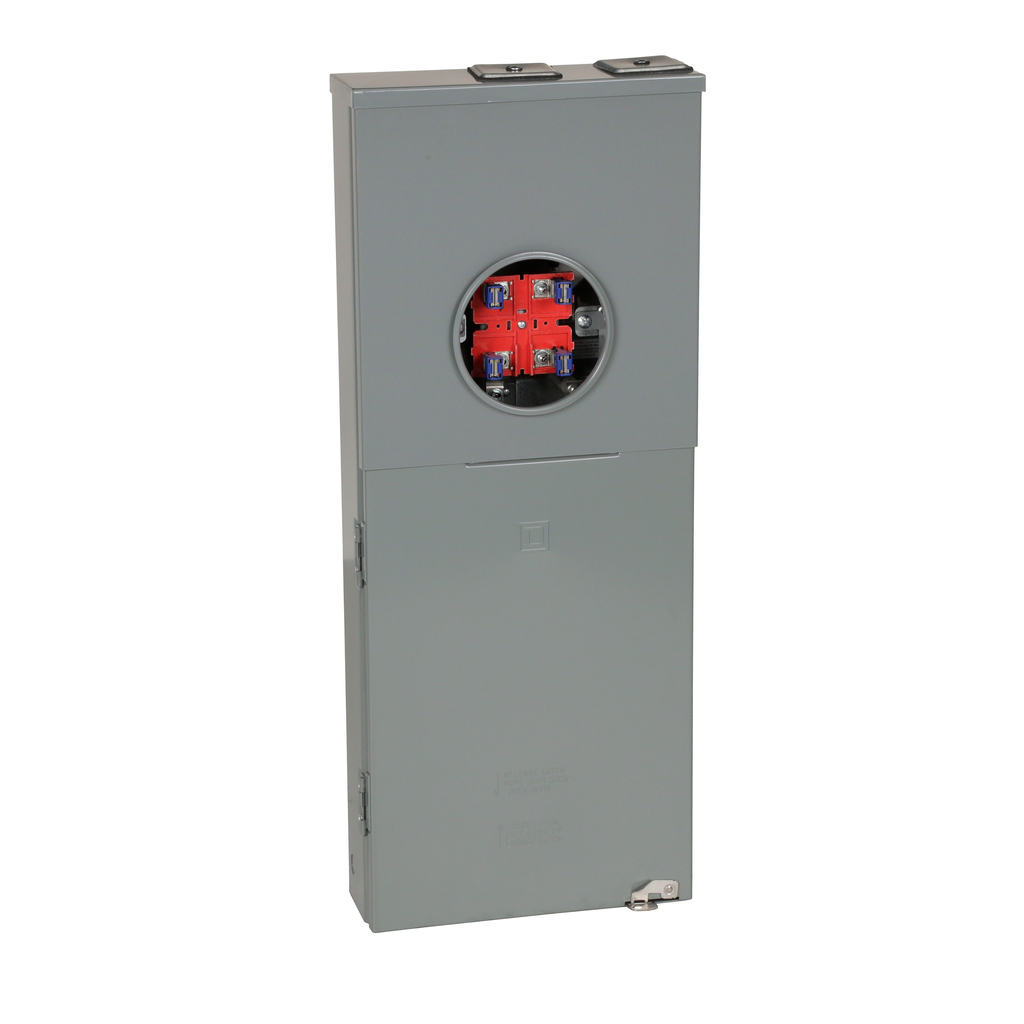

SO2040VP - All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 20 spaces, 40 circuits, 10kA SSCR, OH, no bypass, value pack

SO2040VP

All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 20 spaces, 40 circuits, 10kA SSCR, OH, no bypass, value pack

Square D™ Homeline, SO2040VP, All-in-one Ring T-surface OH .Comes with Factory installed Service disconnect. Provided with no bass, UL listed. 18 months warranty is included.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Height	41.18 in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	OH
Bus Rated Current	200.0 A
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	40
Number Of Spaces	20
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	20
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	18.76 in
Awg Gauge	AWG 6...350 kcmil (aluminium/copper) line side AWG 8...AWG 2/0 (aluminium/copper) service ground
Depth	5.41 in
Device Composition	service disconnect (factory installed)
Device Mounting	surface
Country of Origin	Mexico
Width	18.76 in
Height	41.18 in
Range Of Product	Homeline
Provided Equipment	circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled circuit-breaker 4 ) 1P 20 A 120 V AC tandem circuit breaker 1 ) 1P 20 A 120 V AC circuit-breaker 1 ) 2P 30 A 120 V AC circuit-breaker 1 ) 2P 50 A 120 V AC
Product Or Component Type	All-In-One
Hub Type	A
Meter Socket Type	ringed
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions

All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 20 spaces, 40 circuits, 10kA SSCR, OH, no bypass, value pack
