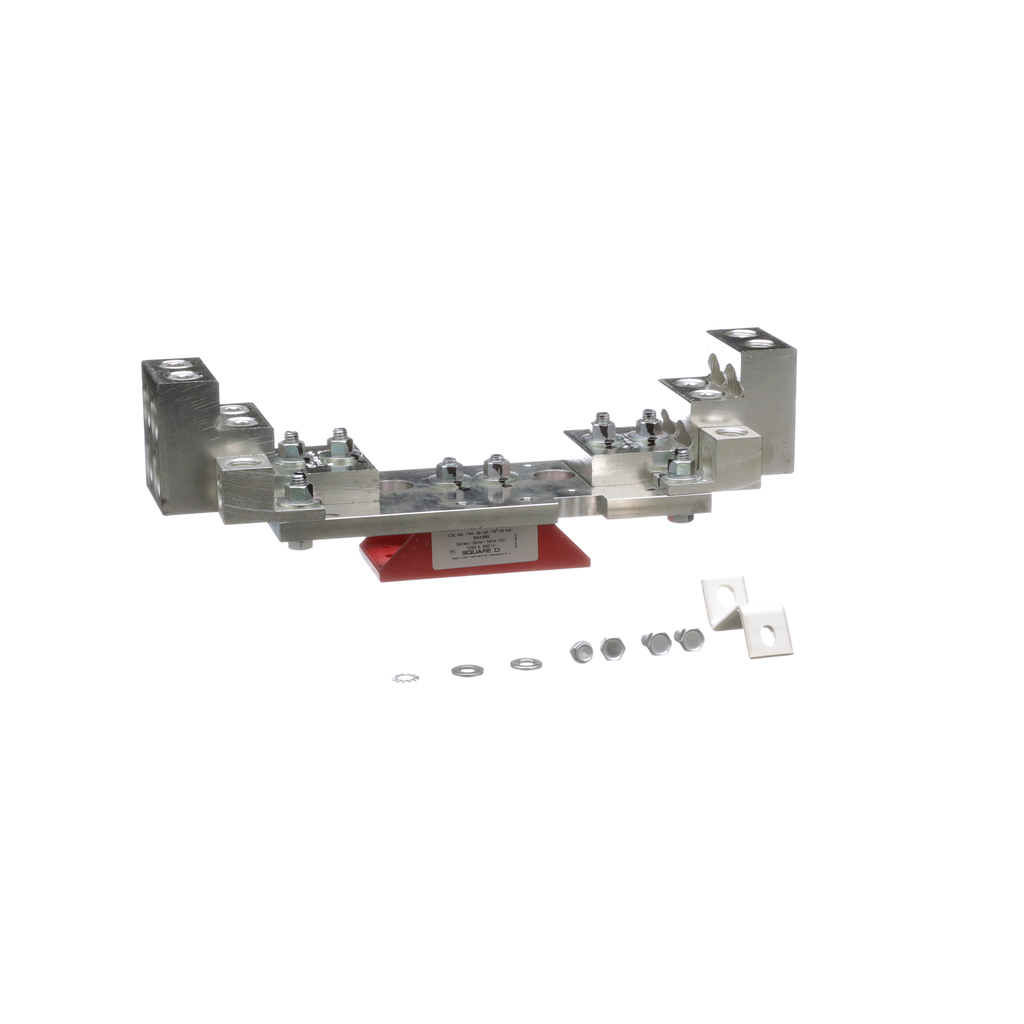

Safety switch accessory, heavy duty, solid neutral assembly kit, PowerPacT M/P, 250A to 1200A
PowerPacT M- and P-Frame circuit breakers are designed to protect electrical systems from damage cause by overloads, short circuits, and ground faults. PowerPacT circuit breaker enclosures have a wide range of field installable accessories to allow customers to reduce inventory without sacrificing flexibility. This solid neutral assembly is one of those accessories which can be used in either the PowerPacT M, 800A enclosure or the PowerPacT P, 1200A enclosure. The PowerPact M-, P-Frame circuit breakers are dual rated to UL489 and IEC 60947-2. This solid neutral assembly is insulated and groundable. It has four terminals in and four terminals out, with two additional grounding terminal. Each terminal accepts 3/0 AWG to 500kcmil. This accessory complies with UL and CSA standards
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Line Rated Current | 250-1200 A |
| Awg Gauge | AWG 3/0...500 kcmil |
| Country of Origin | Mexico |
| Range Of Product |
|
| Breaking Capacity Code | L |
| Product Or Component Type | solid neutral |
