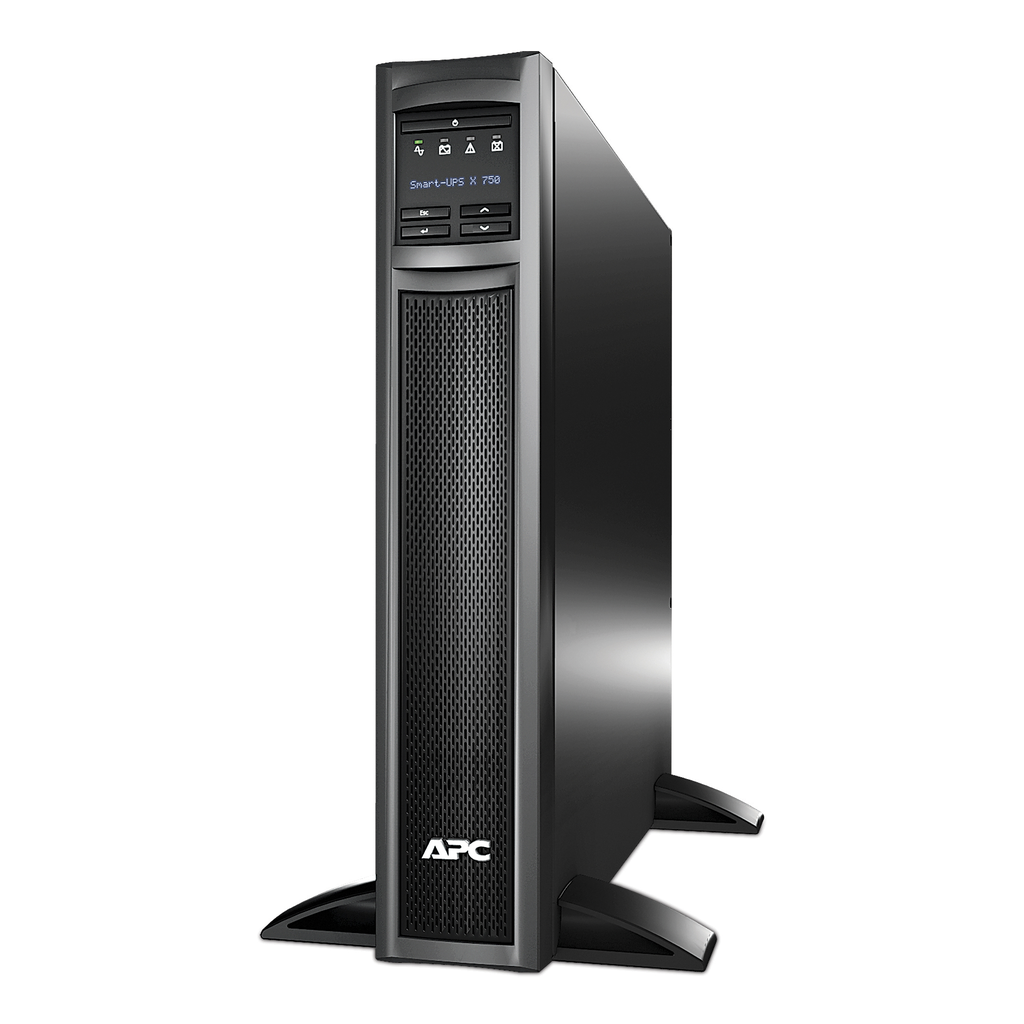

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Communication Port Support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Free Slots | 1 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1612028_EN |
| Sustainable Offer Status | Green Premium product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Energy Star® | ENERGY STAR UPS V2.0 (USA) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1612028_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 43.2 cm |
| Usb Compatible | Yes |
| Net Weight | 22.05 kg |
| Mounting Mode | rack-mounted with kit |
| Color | Black |
| Width | 8.9 cm |
| Depth | 49 cm |
| Switching Current Capacity | 15 A |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Efficiency At Full Load |
|
| Maximum Short Circuit Withstand (Icw) | 1000 kA |
| Harmonic Distortion | Less than 5% |
| Battery Life | 3-5 year(s) |
| Dc Overcurrent Protection | 60 A |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 69 Btu/h |
| Relative Humidity | 0-95 % |
| Acoustic Level | 40 dBA |
| Operating Altitude | 0...10000 ft |
| Software Package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Communication Port Type |
|
| Lead Time | Usually Ships within 2 Weeks |
| Additional Specification | extended run |
| Country of Origin | Philippines |
| Length | 8 ft |
| Width | 8.9 cm |
| Height | 43.2 cm |
| Weight | 22.05 kg |
| Number Of Cables | 1 |
| Range Of Product | Smart-UPS |
| Cable Length | 8 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 750 VA |
| Provided Equipment |
|
| Main Input Voltage | 120 V |
| Battery Type | Lead-Acid battery |
| Number Of Rack Unit | 2U |
| Kw Rating | 675 W |
