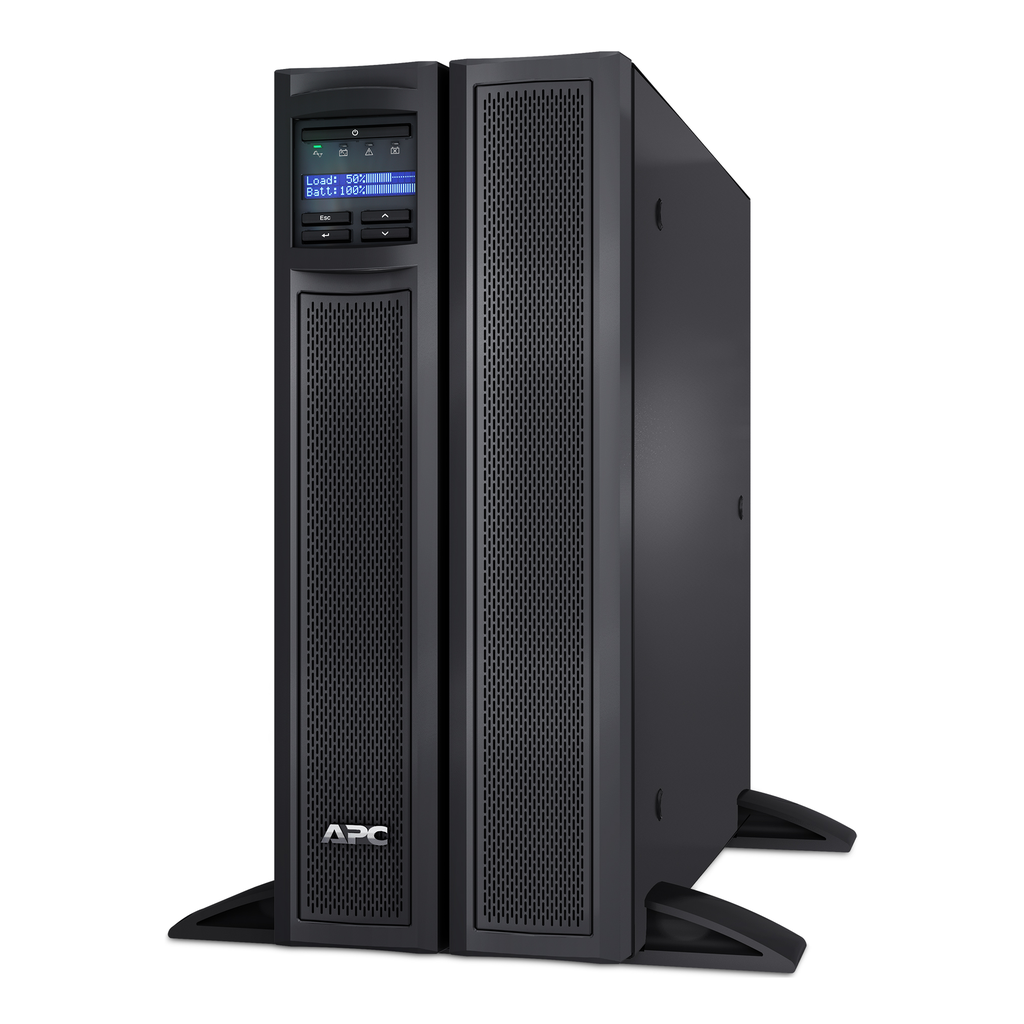

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime, Short depth
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available |
| Alarm | alarm when on battery : distinctive low battery alarm : configurable delays |
| Free Slots | 0 |
| Control Panel | Multi-function LCD status and control console |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1612029_EN |
| Sustainable Offer Status | Green Premium product |
| Take-Back | Take-back program available |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Optimized Energy Efficiency | Energy efficient product |
| Circularity Profile | ENVEOLI1612029_EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 43.2 cm |
| Usb Compatible | Yes |
| Net Weight | 38.64 kg |
| Mounting Location | front |
| Mounting Mode | rack-mounted |
| Color | Black |
| Width | 17.8 cm |
| Depth | 48.3 cm |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Efficiency At Full Load | 70...153 V |
| Harmonic Distortion | Less than 5% |
| Maximum Output Current | 15 A |
| Battery Life | 3-5 year(s) |
| Storage Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | 0-40 °C |
| Storage Altitude | 0-50000 ft |
| Ambient Air Temperature For Storage | -15-45 °C |
| Online Thermal Dissipation | 276 Btu/h |
| Relative Humidity | 0-95 % |
| Acoustic Level | 55 dBA |
| Operating Altitude | 0...10000 ft |
| Lead Time | Usually Ships within 2 Weeks |
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Additional Specification | network card pre-installed |
| Country of Origin | Philippines |
| Length | 8 ft |
| Width | 17.8 cm |
| Height | 43.2 cm |
| Weight | 38.64 kg |
| Other Input Voltages |
|
| Number Of Cables | 1 |
| Range Of Product | Smart-UPS |
| Cable Length | 8 ft |
| Product Or Component Type | uninterruptible power supply (UPS) |
| Rated Power In Va | 2880 VA |
| Provided Equipment |
|
| Main Input Voltage | 120 V |
| Battery Type | Lead-Acid battery |
| Number Of Rack Unit | 4U |
| Kw Rating | 2700 W |
| Other Output Voltages |
|
