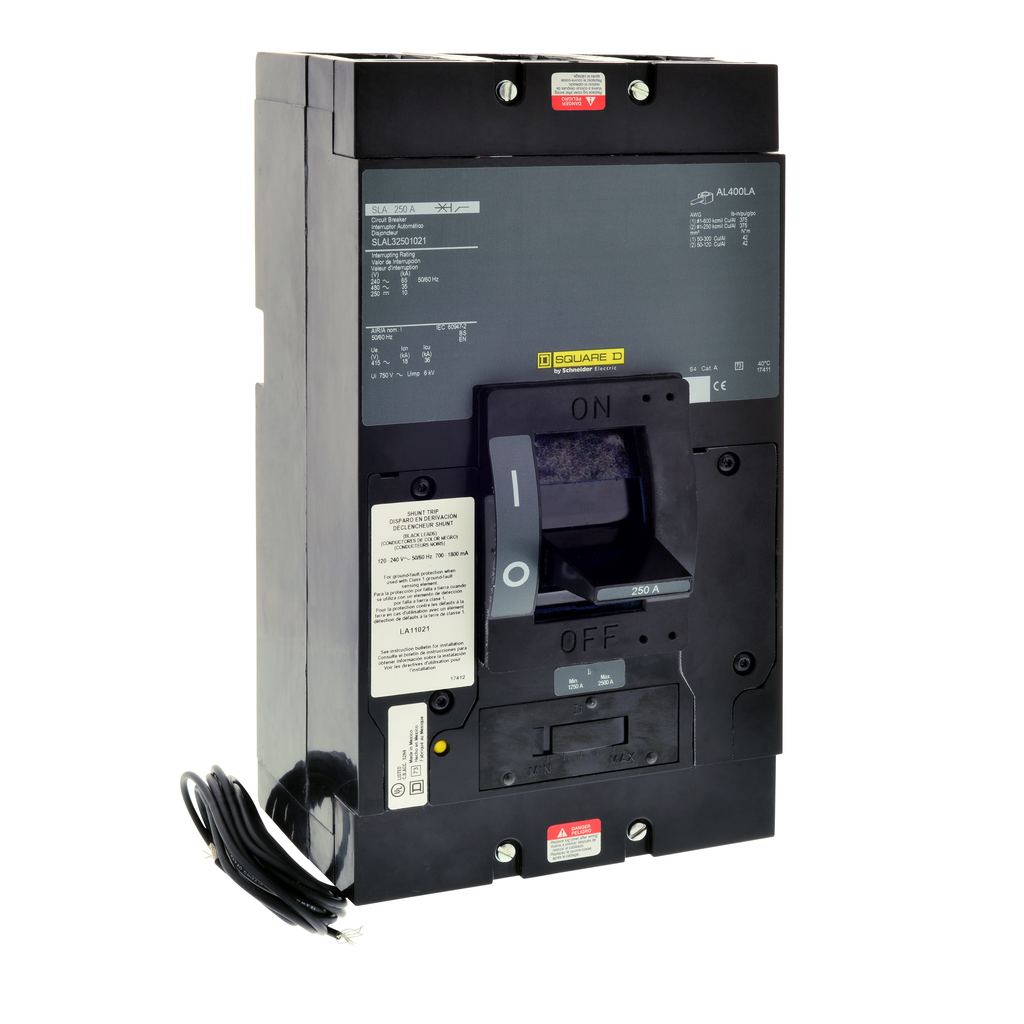

Circuit breaker, SLA, 250A, 3 pole, 480VAC, 35kA, 250VDC, unit mount, thermal magnetic, shunt trip
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This Square D, circuit breaker is a 3P breaker with a rated current of 250A. This product has a breakning capacity of 36kA@240/415VAC. This breaker has a thermal-magnetic trip unit trechnology. This product complys to IEC & UL listed standards. With a magnetic hold current of 1250A and a magnetic tripping current of 2500A. Dimensions for this product are 12.6 in (H), 12.5 in (W), 19.9 in (D).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Terminal Identifier | AL400LA |
| Height | 12.6 in |
| Tightening Torque |
|
| Breaking Capacity Code | LAL |
| Magnetic Tripping Current | 2500-2500 A |
| Electrical Connection |
|
| Magnetic Hold Current | 1250 A |
| Mounting Mode | unit mount |
| Poles Description | 3P |
| Line Rated Current | 250 A |
| Width | 12.5 in |
| Depth | 19.9 in |
| Country of Origin | Mexico |
| Width | 12.5 in |
| Height | 12.6 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | circuit breaker |
