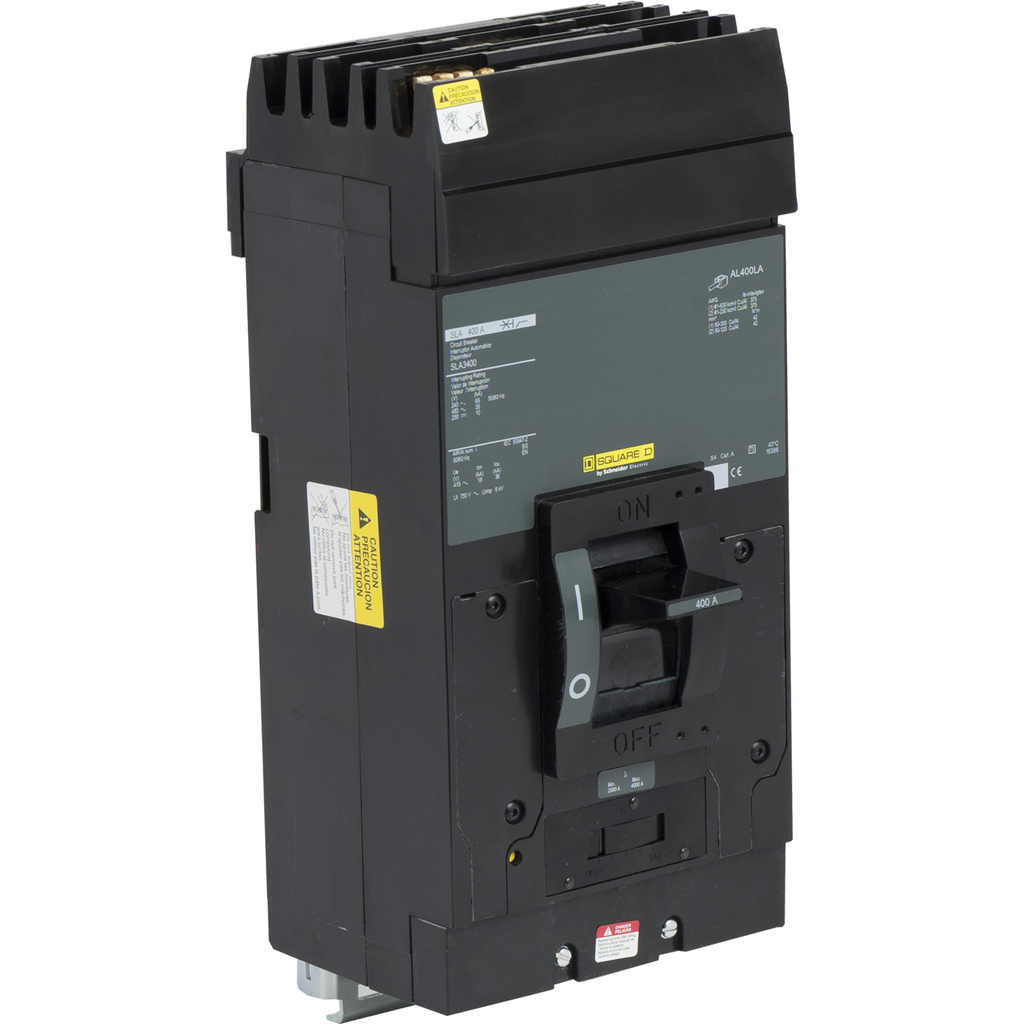

SLA3400
Circuit breaker, SLA, 415/240V, 400A, 3 pole
Specifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Terminal Identifier | AL400LA |
| Height | 12.6 in |
| Mounting Mode | I-Line |
| Tightening Torque |
|
| Breaking Capacity Code | A |
| Magnetic Tripping Current | 4000-4000 A |
| Poles Description | 3P |
| Line Rated Current | 400 A |
| Width | 12.5 in |
| Electrical Connection |
|
| Depth | 19.9 in |
| Magnetic Hold Current | 2000 A |
| Country of Origin | Mexico |
| Width | 12.5 in |
| Height | 12.6 in |
| Trip Unit Technology | thermal-magnetic |
| Product Or Component Type | circuit breaker |
