SL400

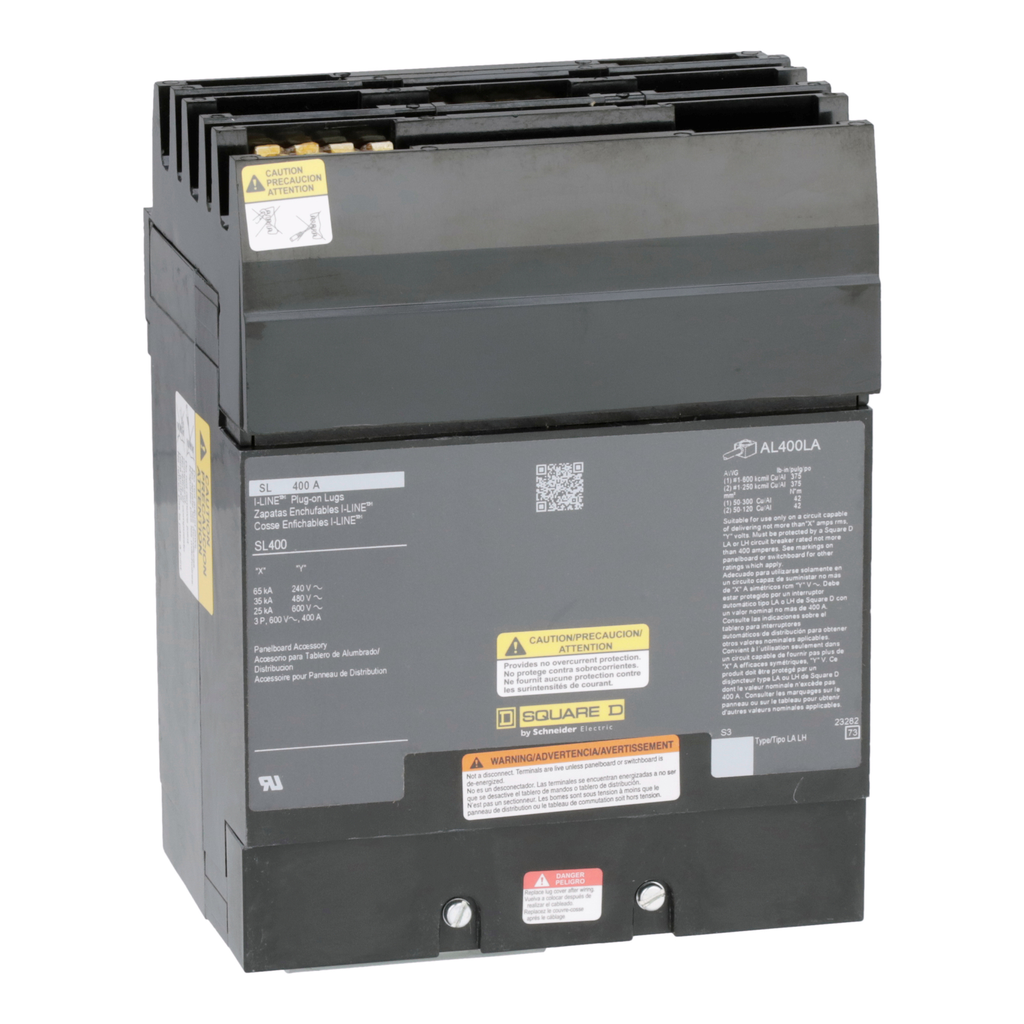

Panelboard accessory, I-Line, lug kit, subfeed, 400A, 6 in
This is a connection accessory for I-Line Panelboards. This is a plug-on subfeed lug kit for I-Line panelboards for PowerPact L-Frame, LA-LH circuit breakers. This has a amperage rating of 400 amps. The frame size 400 amp. The lug accepts (1) #1-600 kcmil, (2) #1-250 kcmil, Al/Cu. This product complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Destination |
|
| Bar Length | 152 mm |
| Line Rated Current | 400-400 A |
| Country of Origin | United States |
| Length | 152 mm |
| Range Of Product | I-Line |
| Product Or Component Type | sub-feed lug |
