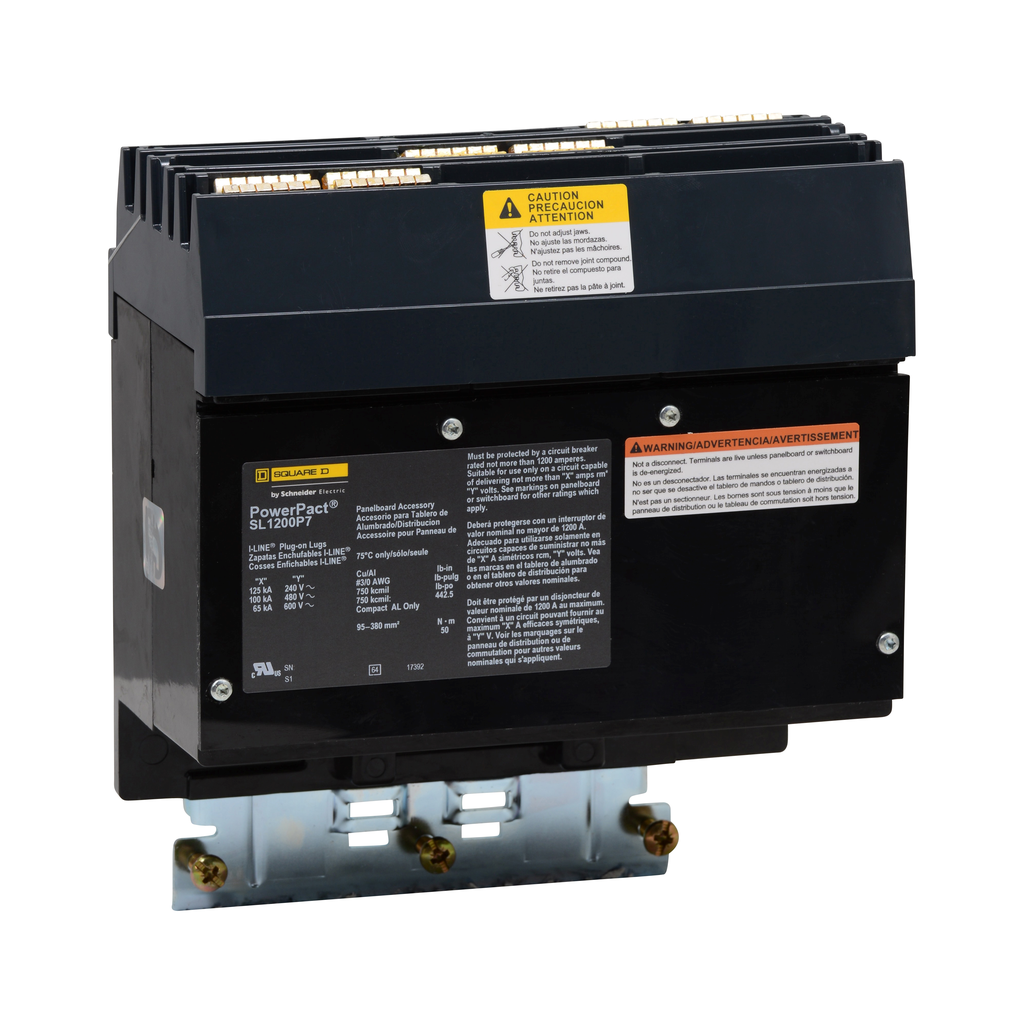

SL1200P7
Accessory, I-line, bolt on circuit breakers, sub feed lugs, 1200A, 3/0 AWG to 750kcmil
Square D sub-feed lug kits are UL Listed for use on Listed equipment. They have plug-on jaw construction and plug on to the I-Line bus stack in the same manner as branch circuit breakers. Lugs on these devices accommodate the same wire sizes as the equivalent ampere rated circuit breakers. This I-line sub-feed lug kit is 3 pole with 1200A current rating and is used for I-line panels with I-line circuit breakers. Terminal data is 3 wires of AWG 3/0 - 750 kcmil. There are 3 conducters per lug.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | sub-feed lug |
| Mounting Mode | bolt-on |
| Tightening Torque | (AWG 3/0...750 kcmil) |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Panelboards: Section 9 - Digest 179 (2024) - Panelboards-Lighting-Digest-Catalog-0100CT2401-SEC-09 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Digest Catalog 09: Panelboards - 0100CT1901_SEC-09 (pdf)
- Square D I-Line Circuit Breaker Panelboards Catalog - Class 2110 - 2110CT9701 (pdf)
- Spec Sheet
