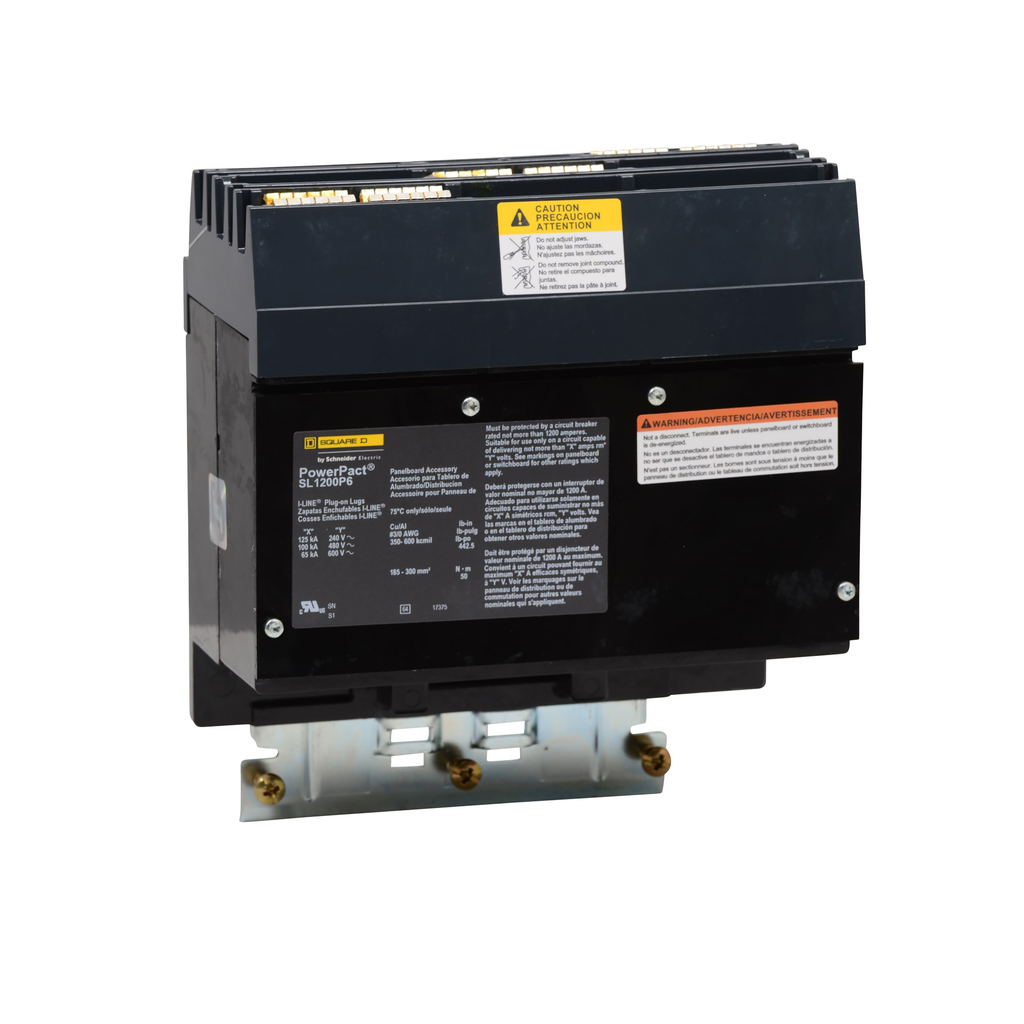

SL1200P6
Circuit breaker accessory, I-Line, sub feed lugs, 1200A, 350kcmil to 600kcmil
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This is a connection accessory for I-Line panelboards. They have plug on jaw construction and plug on to the I-Line bus stack as branch circuit breakers. Lugs on these devices accommodate the same size wire as the equivalent ampere rated circuit breaker. The lug kit is 3 pole and rated for 1200A. The lugs accept 350kcmil to 600kcmil and accept 3 conductors per lug. This lug kit complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Line Rated Current | 1200-1200 A |
|---|---|
| Height | 229 mm |
| Mounting Mode | by screws |
| Protection Type | circuit breaker protection |
| Awg Gauge | 3 x 350...600 kcmil aluminium/copper |
| Material | aluminium |
| Type Of Installation | indoor installation |
| Mounting Location | inside the enclosure |
| Product Certifications | UL |
| Country of Origin | United States |
| Height | 229 mm |
| Range Of Product | I-Line |
| Product Or Component Type | sub-feed lug |
| Device Application | panelboard |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
