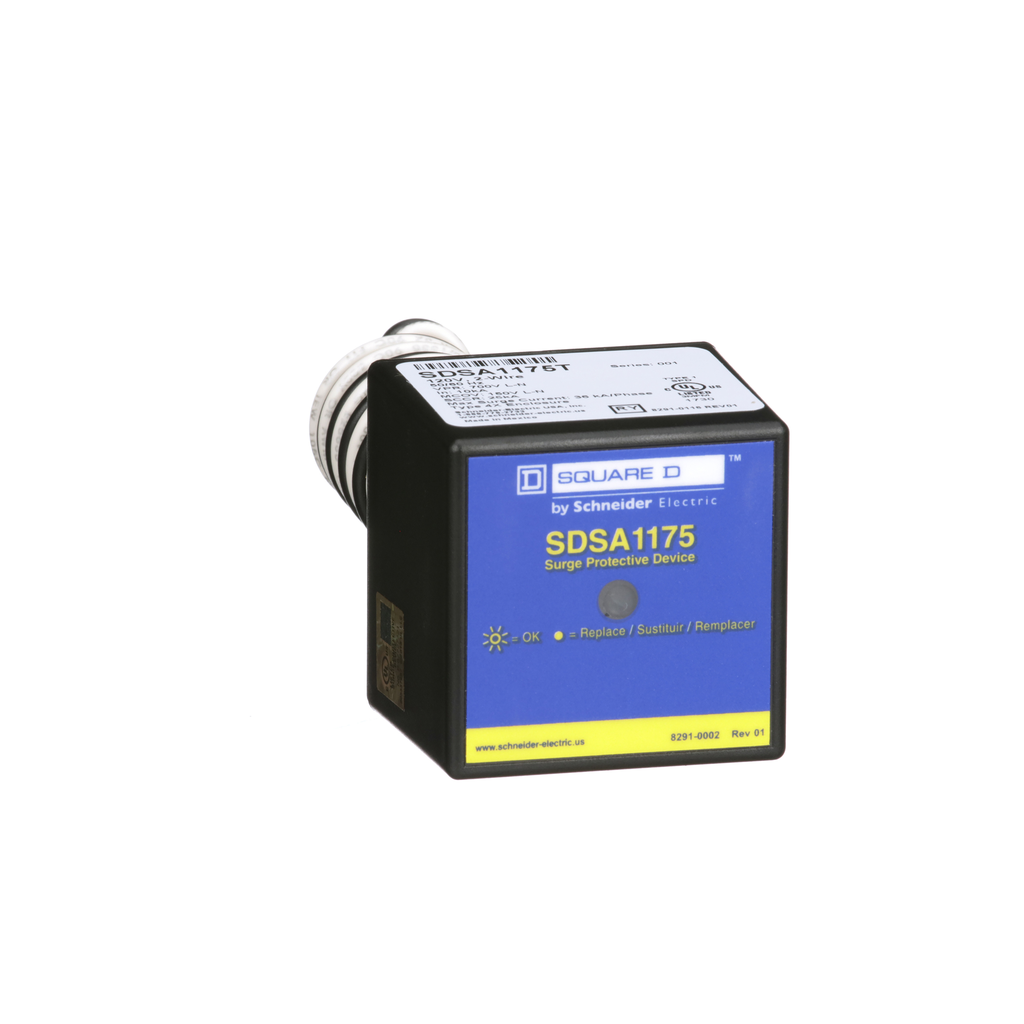

SDSA1175T - Surge protection device, Surgelogic, 36kA, 120 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

SDSA1175T

Surge protection device, Surgelogic, 36kA, 120 VAC, 1 phase, 3 wire, 25kA SCCR, NEMA 4X

Square D™ load center surge protective devices, SDSA1175T, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Standards	CSA C22.2 No 8 UL 1449:ed. 4
Nema Degree Of Protection	NEMA 4X
Enclosure Material	Black Plastic
Warranty	18 months
Rohs Exemption Information	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant with Exemptions
Height	2.25 in
Connections - Terminals	wire
Cable Length	24 in
Surge Current	36 kA
Nominal Discharge Current	10 kA
Phase	1 phase
Local Signalling	status LED
Short-Circuit Protection	25 kA
[Uc] Maximum Continuous Operating Voltage	150 V
Width	2.25 in
Wiring Configuration	3-wire
Depth	1.935 in
[Ue] Rated Operational Voltage	120 V AC
Country of Origin	France
Length	24 in
Width	2.25 in
Height	2.25 in
Range Of Product	Surgelogic
Product Or Component Type	surge protection device
