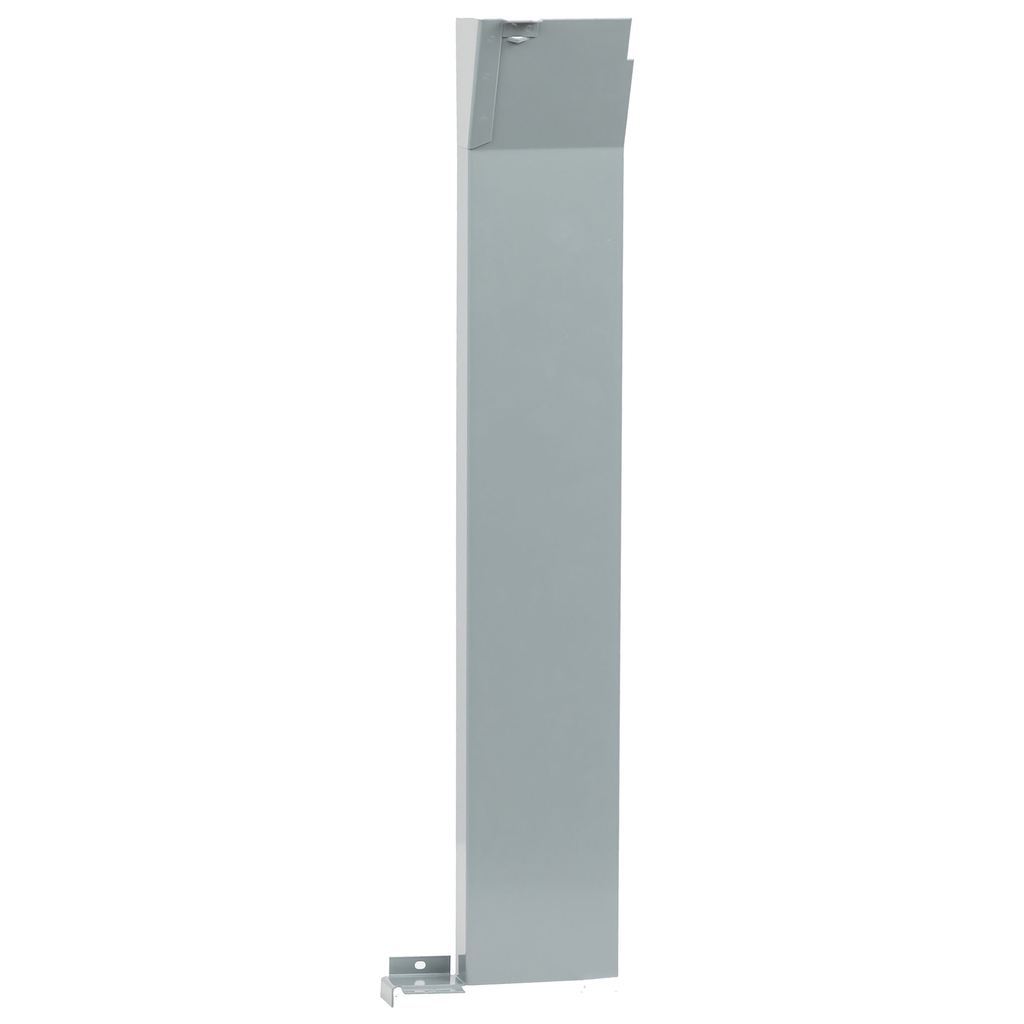

SCTKP30
All in one accessory, Homeline, combination service entrance, tunnel kit, for semi flush mount, PoN, 30 spaces
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Many of the All-in One combination service entrance devices (CSED) are suitable for overhead (OH) service with addition of this tunnel kit. Check with local utility for approval. This device is for a 30 space, plug on neutral, surface flush mount. Tunnel kit is 27.706 inches tall, 4.44 inches wide and 3.20 inches deep.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Mexico |
|---|---|
| Width | 4.44 in |
| Height | 27.706 in |
| Range Of Product | QO |
| Product Or Component Type | tunnel |
| Meter Socket Type | ringed |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 27.706 in |
| Width | 4.44 in |
| Depth | 3.20 in |
Documents
- SCTK20 and SCTK30 CSED Tunnel Kits Installation Instructions - 40271-167-02-1 (pdf)
- Square D QO Load Centers and Circuit Breakers Brochure - 998-1170221_US_B (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
