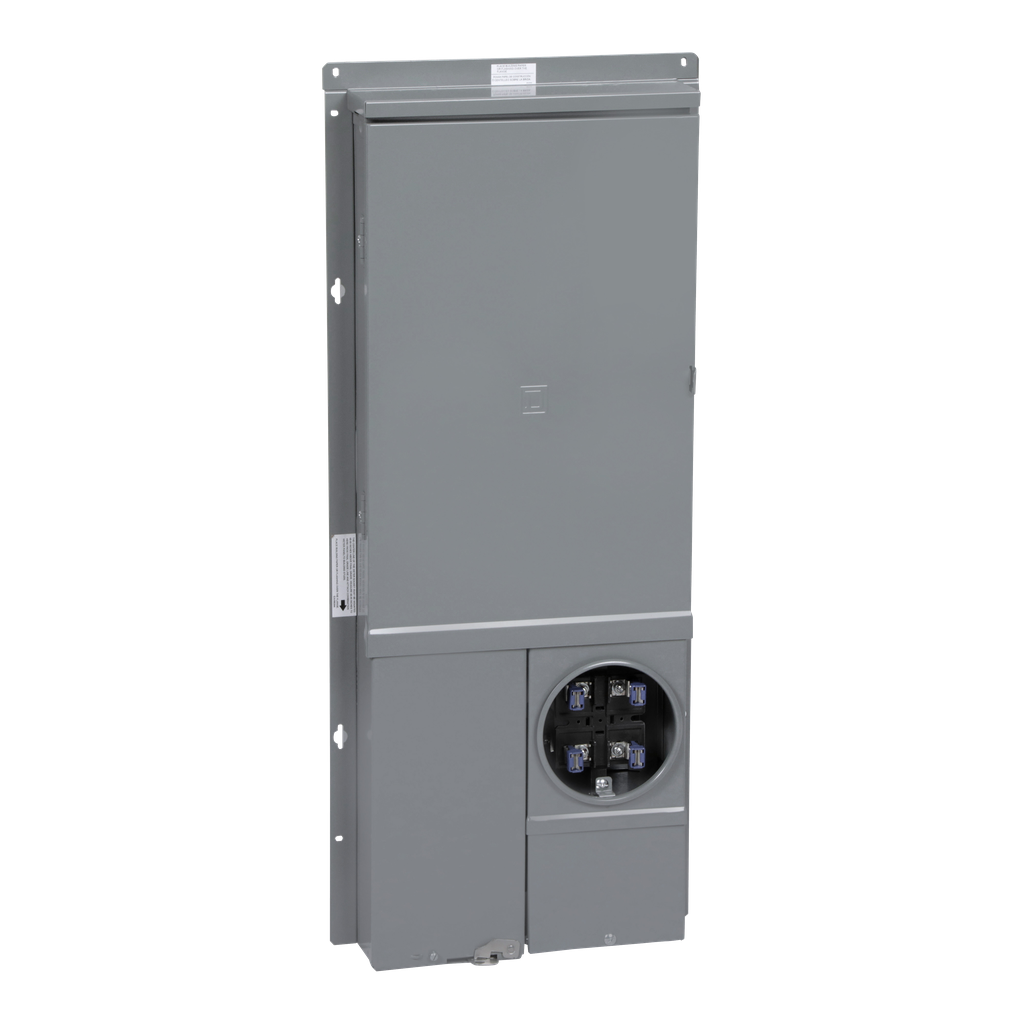

SC816F200PF - Meter mains, Homeline, CSED, ringed socket, 200A, outdoor semi flush mount, maximum 8 spaces, 16 circuits, no bypass

SC816F200PF

Meter mains, Homeline, CSED, ringed socket, 200A, outdoor semi flush mount, maximum 8 spaces, 16 circuits, no bypass

Add to Quote Catalogue

Specifications

Height	39.80 in
Tightening Torque	main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium lugs 250 lb.in, AWG 6...250 kcmil, aluminium/copper branch lugs 50 lb.in, AWG 14...AWG 2/0, copper branch lugs 50 lb.in, AWG 12...AWG 2/0, aluminium Cover 10 lb.in
Branch Circuit Breaker Rated Current	100 A
Bypass Type	no bypass
Service Feed Location	OH UG
Bus Rated Current	225.0 A
Electrical Connection	lugs, line side lugs, service ground feed-thru lugs, load side
Number Of Circuits	16
Number Of Spaces	8
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	8
Hub Type	A-L
Meter Socket Type	ringed
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Awg Gauge	AWG 4...250 kcmil aluminium/copper)line side AWG 8...AWG 2/0 aluminium/copper)service ground AWG 6...250 kcmil aluminium/copper)load side
Width	16.80 in
Depth	3.40 in
Network Number Of Phases	1
Device Composition	service disconnect (factory installed)
Device Mounting	semi flush (outdoor)
Country of Origin	Mexico
Width	16.80 in
Height	39.80 in
Range Of Product	Homeline
Provided Equipment	circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled
Product Or Component Type	Meter Mains
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Product Certifications	UL E-6294
Nema Degree Of Protection	NEMA 3R

Meter mains, Homeline, CSED, ringed socket, 200A, outdoor semi flush mount, maximum 8 spaces, 16 circuits, no bypass
