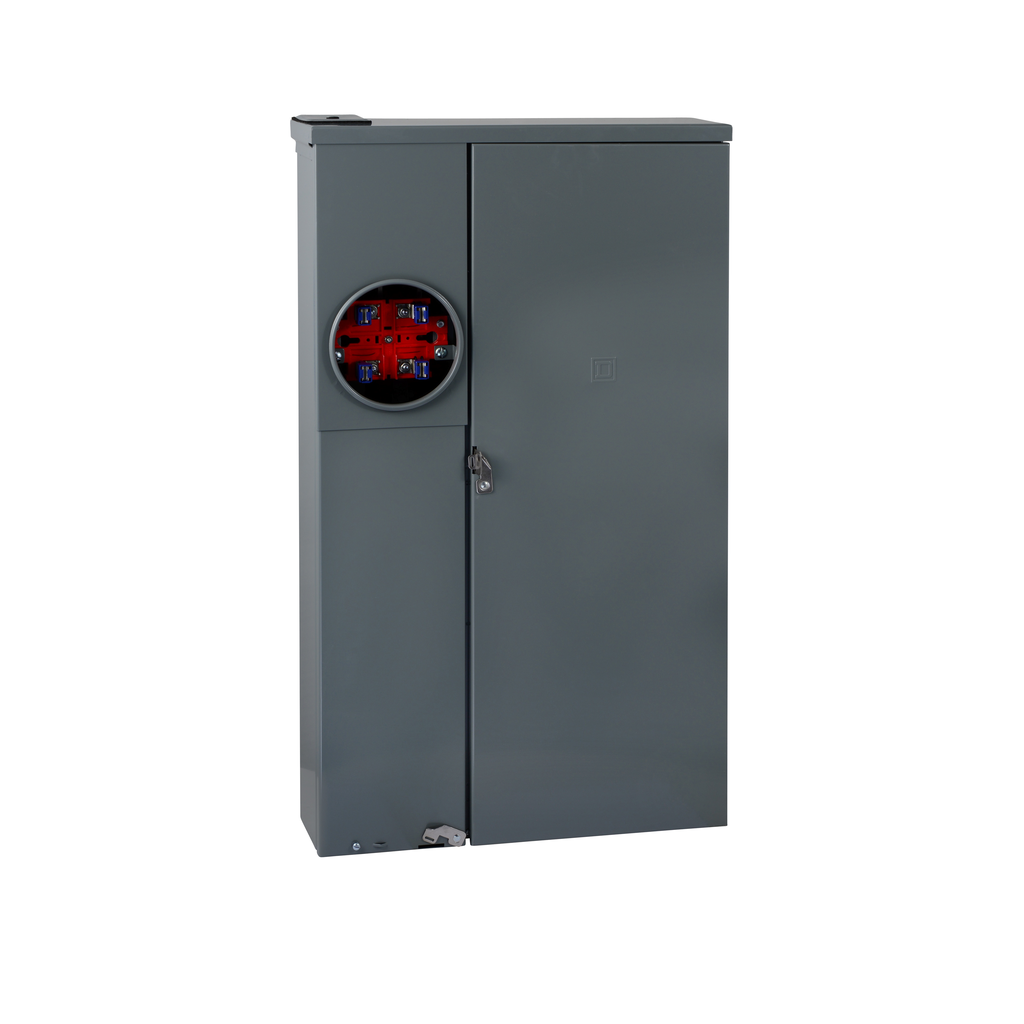

SC42M200PS - All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

SC42M200PS

All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC42M200PS, provides metered service and a main circuit breaker and 42 circuits. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20). This Homeline load center has a two pole GFCI circuit breaker that is rated at 50A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. CHOM Homeline load centers are CSA certified.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Connections - Terminals	plug-on neutral
Height	37.30 in
Tightening Torque	main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 14...AWG 2/0, copper service ground 50 lb.in, AWG 12...AWG 2/0, aluminium branch lugs 50 lb.in, AWG 14...AWG 4, copper branch lugs 50 lb.in, AWG 12...AWG 2, aluminium branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper branch lugs 25 lb.in, AWG 8, aluminium/copper branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper Cover 10 lb.in
Branch Circuit Breaker Rated Current	200 A
Bypass Type	no bypass
Service Feed Location	OH UG
Bus Rated Current	225.0 A
Electrical Connection	lugs, line side lugs, service ground
Number Of Circuits	42
Number Of Spaces	42
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	0
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Width	21.50 in
Awg Gauge	AWG 4...250 kcmil (aluminium/copper) line side AWG 14...AWG 2/0 (aluminium/copper) service ground
Depth	6.30 in
Product Compatibility	solar ready
Colour Of Enclosure	grey
Device Mounting	semi flush
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	Mexico
Width	21.50 in
Height	37.30 in
Range Of Product	Homeline
Product Or Component Type	All-In-One
Hub Type	A
Meter Socket Type	ringed
Nema Degree Of Protection	NEMA 3R

All in one, Homeline, CSED, ringed socket, 200A, surface mount, 42 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready
