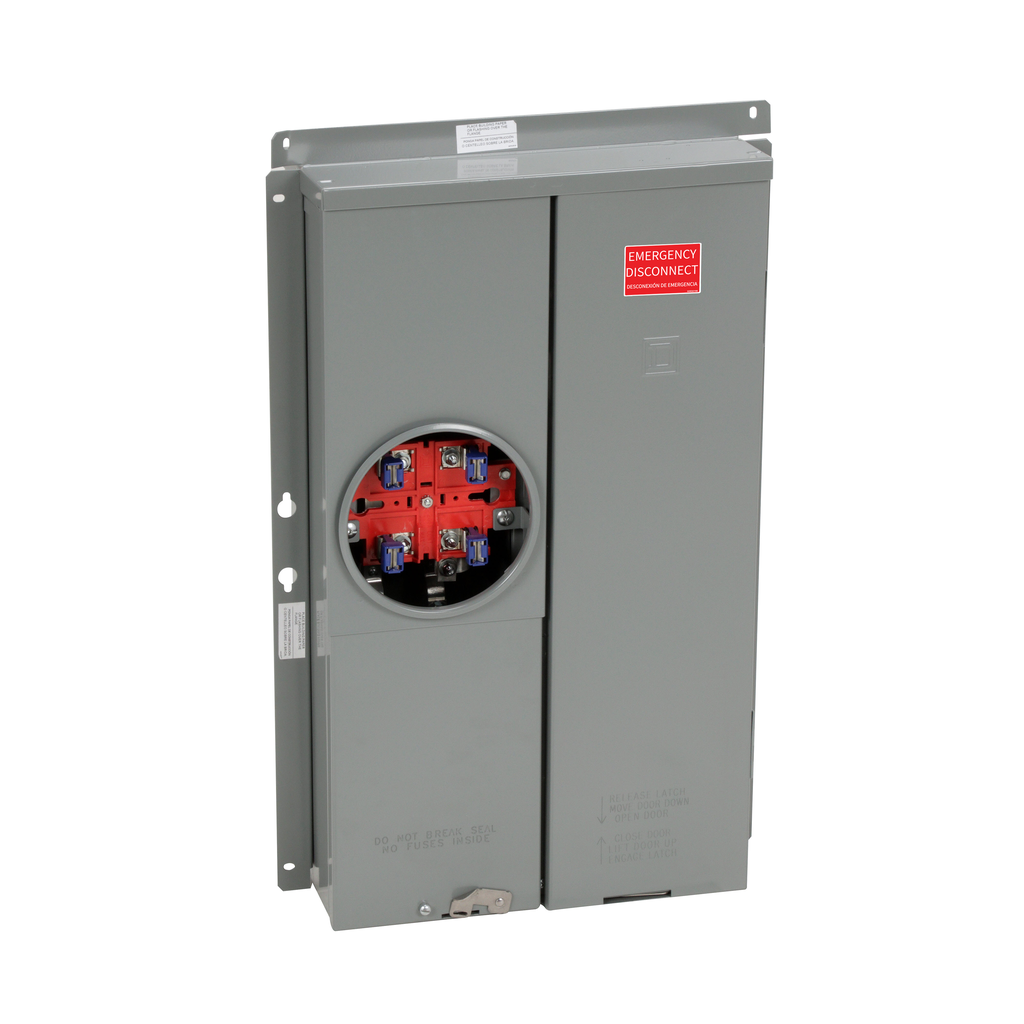

All in one, Homeline, combination service entrance, ringed socket, 100 A, semi flush, 16 spaces, 24 circuits, 10kA SSCR, OH, UG, no bypass
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 16 spaces which will accept up to 8 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 25.12 inches tall, 14.50 inches wide and 3.39 inches deep. The line side lugs will accept 6 AWG to 2/0 AWG copper or aluminum wire. The service ground lug will accept 6 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Width | 14.50 in |
| Height | 25.12 in |
| Range Of Product | Homeline |
| Product Or Component Type | All-In-One |
| Hub Type |
|
| Meter Socket Type | ringed |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 25.12 in |
| Tightening Torque |
|
| Branch Circuit Breaker Rated Current | 100 A |
| Bypass Type | no bypass |
| Service Feed Location |
|
| Bus Rated Current | 125.0 A |
| Electrical Connection |
|
| Number Of Circuits | 24 |
| Number Of Spaces | 16 |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 8 |
| Service Disconnect Rated Current | 100 A |
| Line Rated Current | 100 A |
| Width | 14.50 in |
| Awg Gauge |
|
| Depth | 3.39 in |
| Device Composition | service disconnect (factory installed) |
| Device Mounting | semi flush |
| Warranty | 18 months |
