S48819

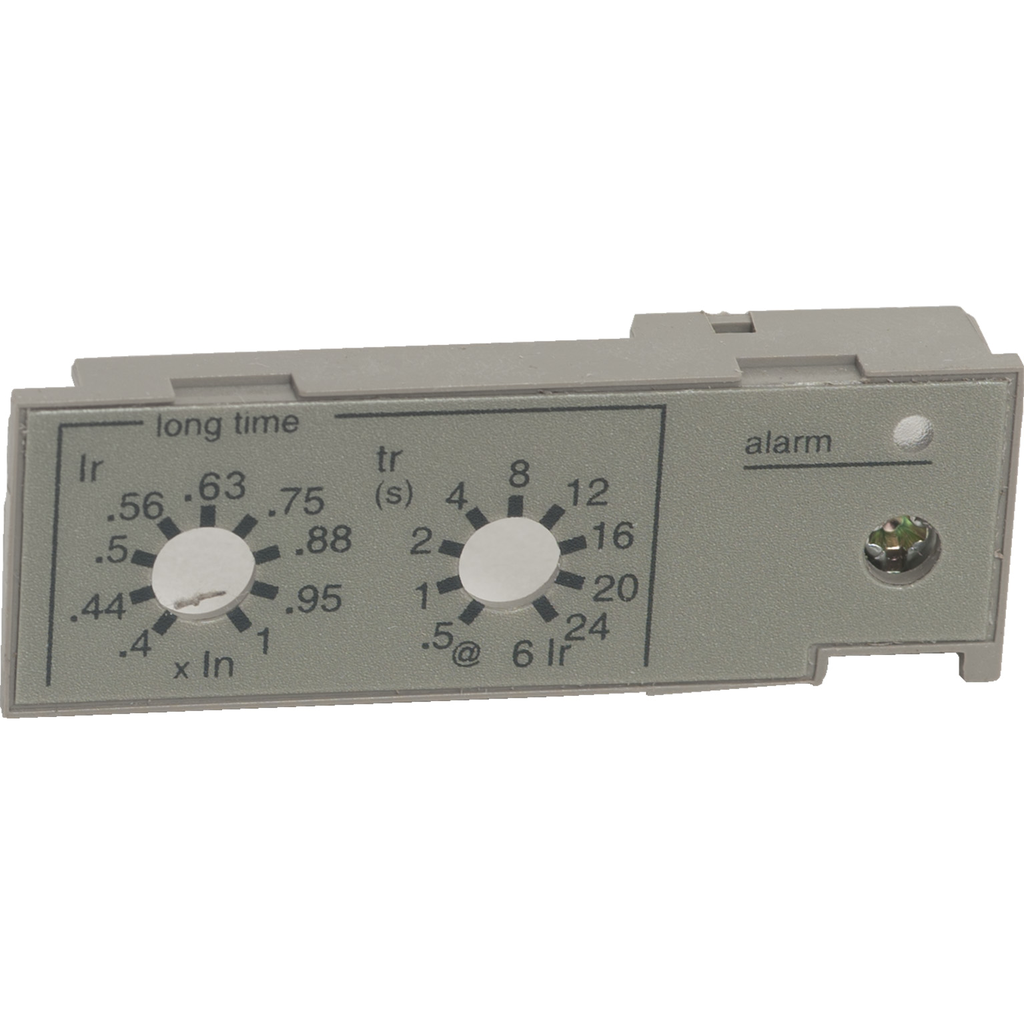

Circuit breaker accessory, PowerPacT P/R, MicroLogic, rating plug, UL/ANSI, type B
This is a Micrologic control unit accessory for PowerPacT P& R-Frame circuit breakers. This is a control unit accessory. Interchangeable rating plugs are available to limit the long-time threshold setting range for greater versatility. This product complies with UL and ANSI type B standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | control unit accessory |
| Product Or Component Type | rating plug |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Warranty | 18 months |
Documents
- Rating Plugs for MicroLogic 3.0/5.0/6.0/7.0 A/P/H Trip Units Installation Instructions - 48049-138-01 (pdf)
- Rating Plugs for MicroLogic 3.0/5.0/6.0/7.0 A/P/H Trip Unit Installation - JYT65466 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
