S48818
Circuit breaker accessory, PowerPact P/R, trip unit adjustable rating plug A, UL/ANSI

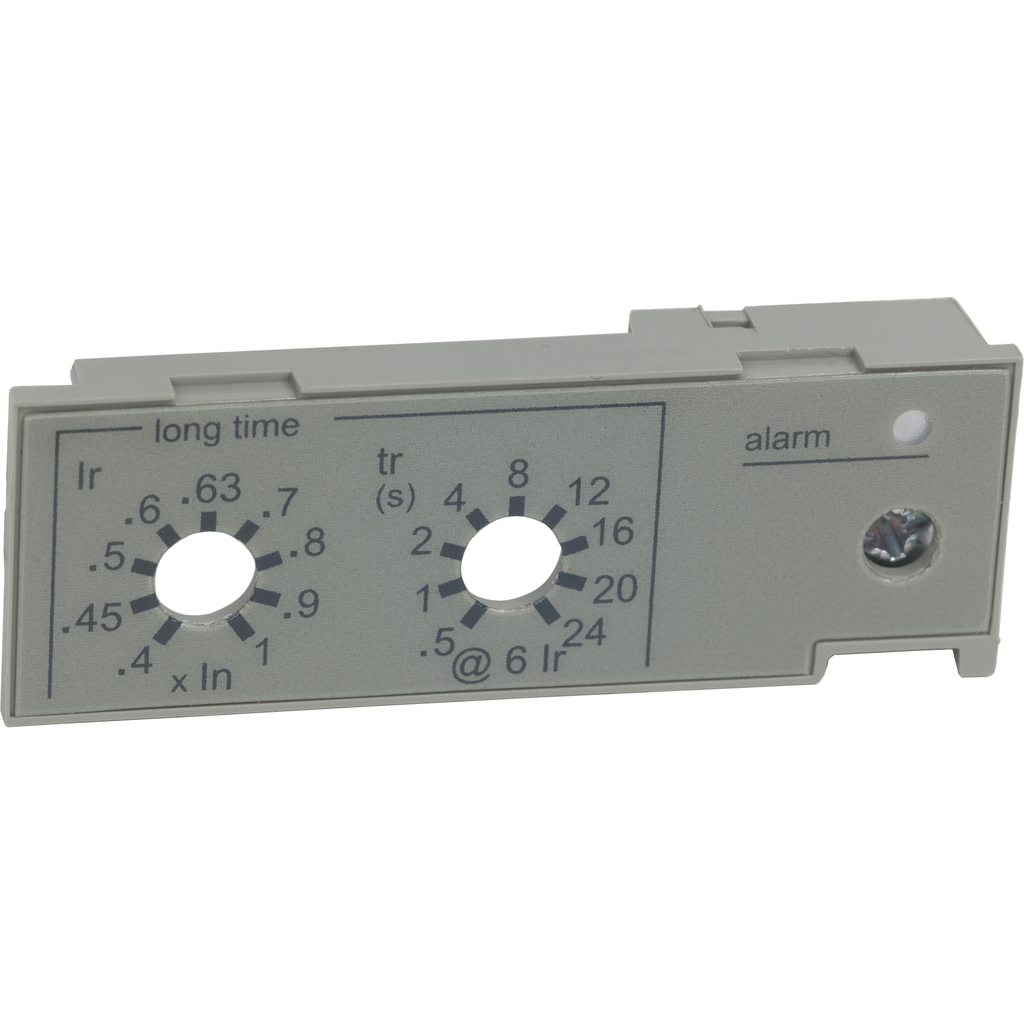

This is a Micrologic trip unit adjustable rating plug for PowerPacT P and R-Frame circuit breakers. Uses adjustable rating plug captive mounting screw. Trip unit character 5 is A. This product complies with UL and ANSI standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant with Exemptions |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | rating plug |
| Product Destination | circuit breaker |
| Warranty | 18 months |
Documents
- Rating Plugs for MicroLogic 3.0/5.0/6.0/7.0 A/P/H Trip Units Installation Instructions - 48049-138-01 (pdf)
- Rating Plugs for MicroLogic 3.0/5.0/6.0/7.0 A/P/H Trip Unit Installation - JYT65466 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
