S434508

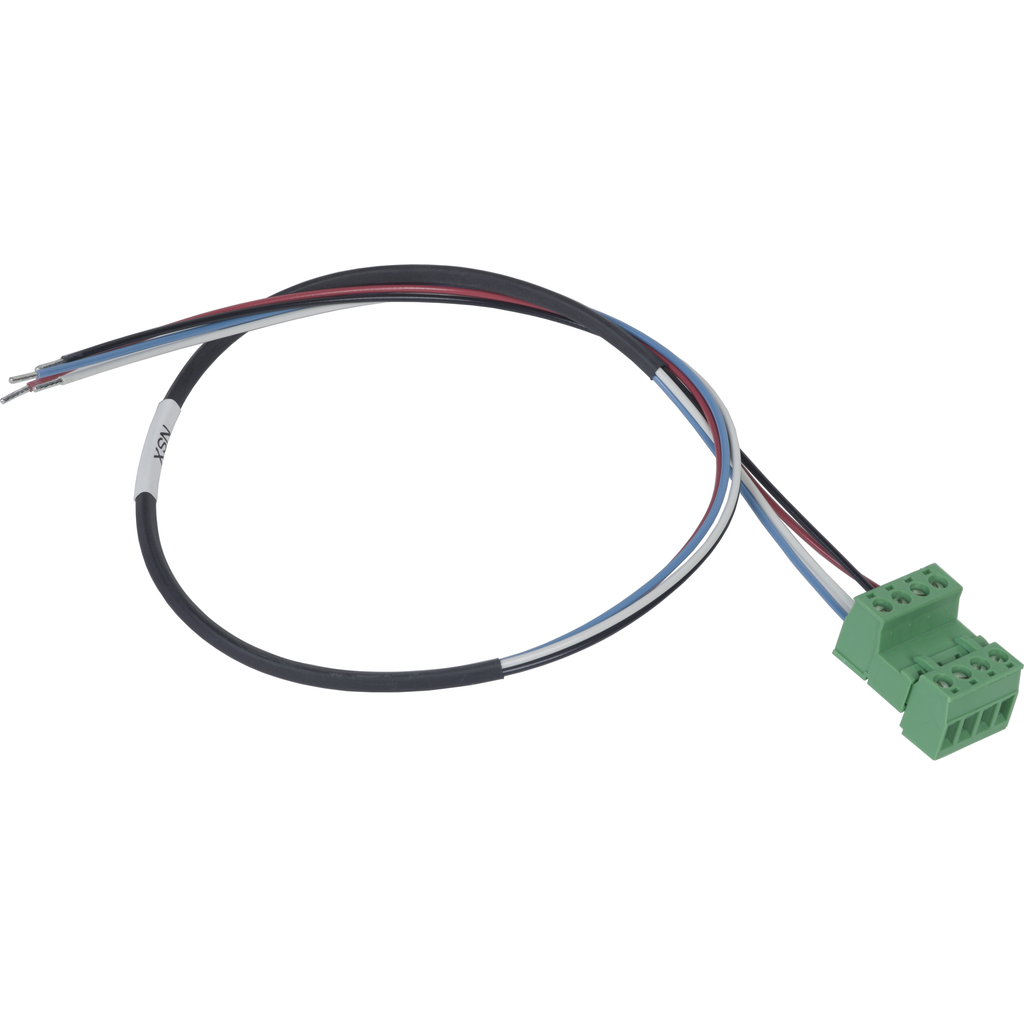

Circuit breaker accessory, PowerPacT H/J/L/P/R, I-Line wire harness, NSX cord
Specifications
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin | France |
| Enclosure Type | Federal Pioneer CDP |
| Range Of Product |
|
| Circuit Breaker Type | Y-frame |
| Accessory / Separate Part Category |
|
| Quantity Per Set | set of 3 |
| Product Or Component Type | wire harness |
| Device Application | automatic spring charging |
| Rack Type | remote |
| Product Destination | current transformer |
| Line Rated Current |
|
| Pin Number |
|
| Mounting Mode | horizontal |
| Tightening Torque | 1.4-1.4 N.m |
| Rated Voltage |
|
| Warranty | 18 months |
Documents
- PowerPacT™ Circuit Breakers Breaker Status Control Module with NSX Cord - S1A80376 (pdf)
- Breaker Status Control Module (BSCM) with NSX Cord for PowerPacT H-, J-, and L-Frame Circuit Breakers 480 V and Below - Instructions - S1A80374_03 (pdf)
- PowerPacT Circuit Breakers NSX Cord > 480 Vac for H-, J-, and L-Frame Circuit Breakers - Installation Instructions - S1A80372 (pdf)
- Wiring Harness for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units Installation Instructions - JYT66352 (pdf)
- NSX Cord or 24 Vdc Terminal Block for PowerPacT™ H-, J-, and L-Frame Circuit Breakers - 48940-323-01_04 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
