S432553

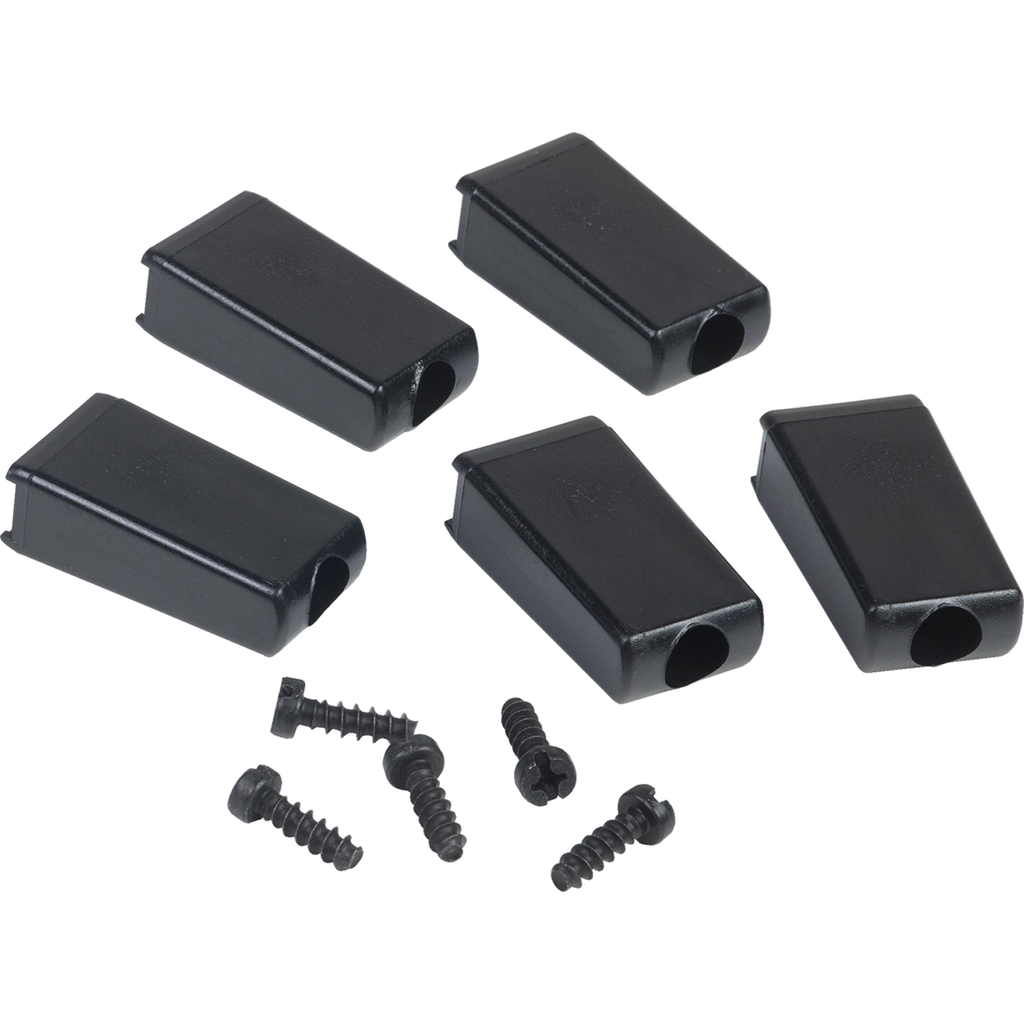

Circuit breaker accessory, PowerPacT L, extension, handle, toggle, fixed, set of 5
Square D PowerPacT H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. This fixed toggle extensionis designed to extend the circuit breaker handle for easier manual circuit breaker operation and comes as 5 pieces in package. Designed for use with PowerPact H- and J-frame circuit breaker. The neutral current transformer is connected in the same way for unit-mount, plug-in or drawout devices, cross-sectional area is AWG 22-AWG 16.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Destination | handle |
| Tightening Torque | 50-50 N.m |
| Country of Origin | United States |
| Range Of Product | PowerPact L |
| Product Or Component Type | toggle extension |
Documents
- Handle Extension for PowerPacT H-, J-, L-Frame and TeSys GV5/GV6 Circuit Breakers, Installation Instructions - 48940-242-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf)
- TeSys GV5PB/GV6PB Motor Protection Circuit Breakers - 8536CT1901R04_20 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
