S431549

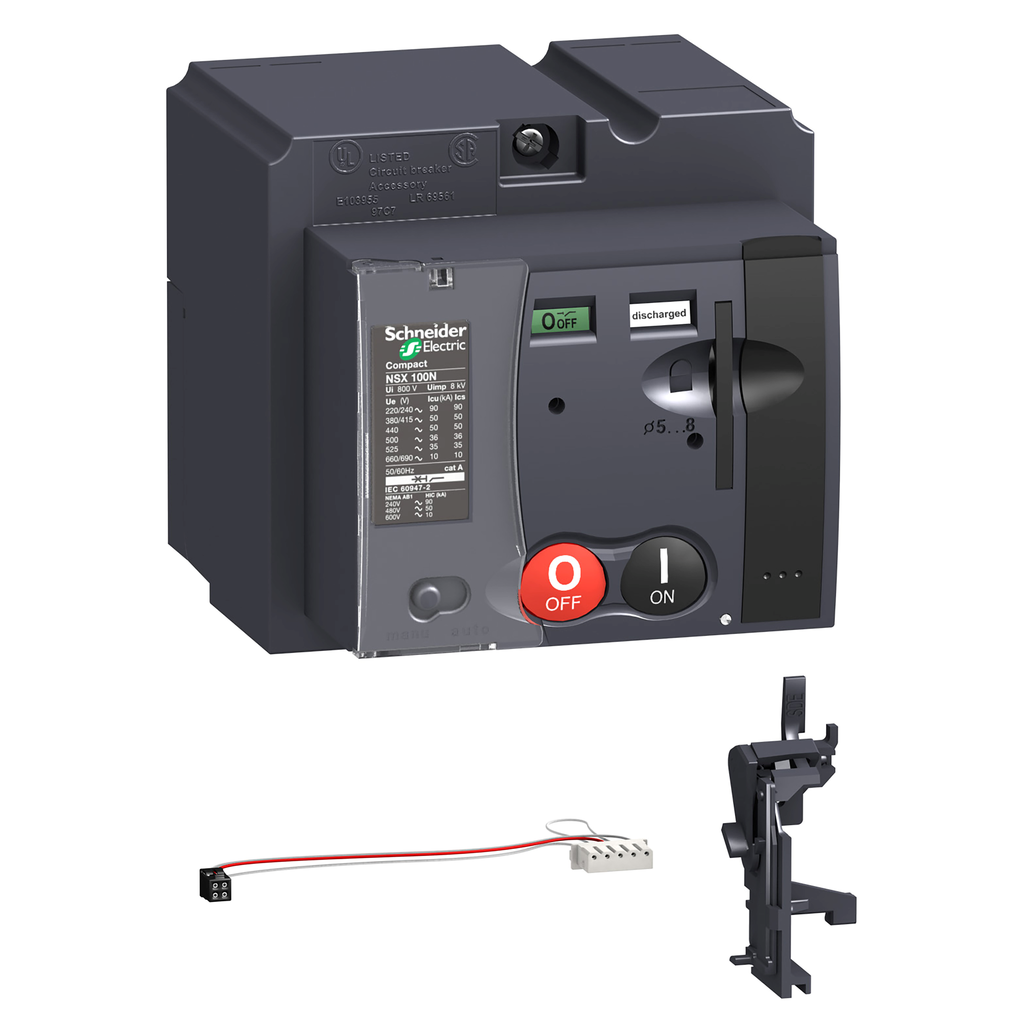

Circuit breaker accessory, PowerPacT J, motor operator, communicating, NC, 220VAC to 240VAC
Specifications
| Tightening Torque | 1-1.4 N.m |
|---|---|
| Rated Voltage | 220-240 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406010EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
| Country of Origin | United States |
| Range Of Product | PowerPact J |
| Accessory / Separate Part Category | communication accessory |
| Product Or Component Type | remote control motor |
Documents
- Motor Operators for PowerPacT H- and J-Frame Circuit Breakers Installation Instructions - 48940-236-02 (pdf)
- Motor Operator for PowerPacT L-Frame Circuit Breakers Installation Instructions - S1A59258-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
