S33673

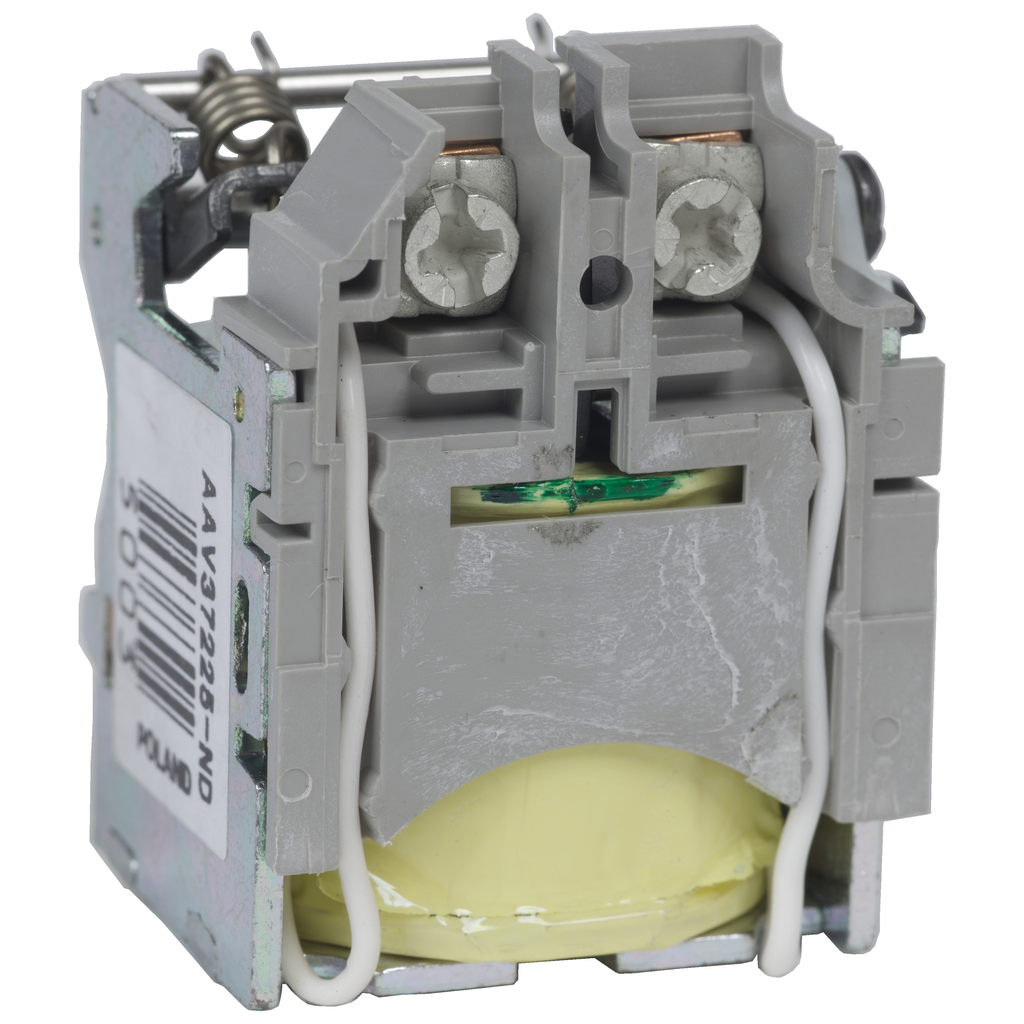

Circuit breaker accessory, PowerPacT M/P/R, undervoltage trip, MN 380V to 480V AC
Specifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Tightening Torque | 3.5-3.5 N.m |
| Rated Voltage | 380-480 V AC/DC |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | undervoltage trip |
Documents
- Installation Instructions for Undervoltage Trip (MN) and Shunt Trip (MX) for M-, P-, and R-Frame and NS630b-NS3200 Circuit Breakers - 48049-245-03 (pdf)
- PowerPacT R-Frame and NS1600b–NS3200 Circuit Breaker Installation Instructions - 48049-243-04+Rev+06 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT Multistandard Circuit Breakers 15 - 600 A Catalog - LVPED212023EN_WEB2 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
