S33671

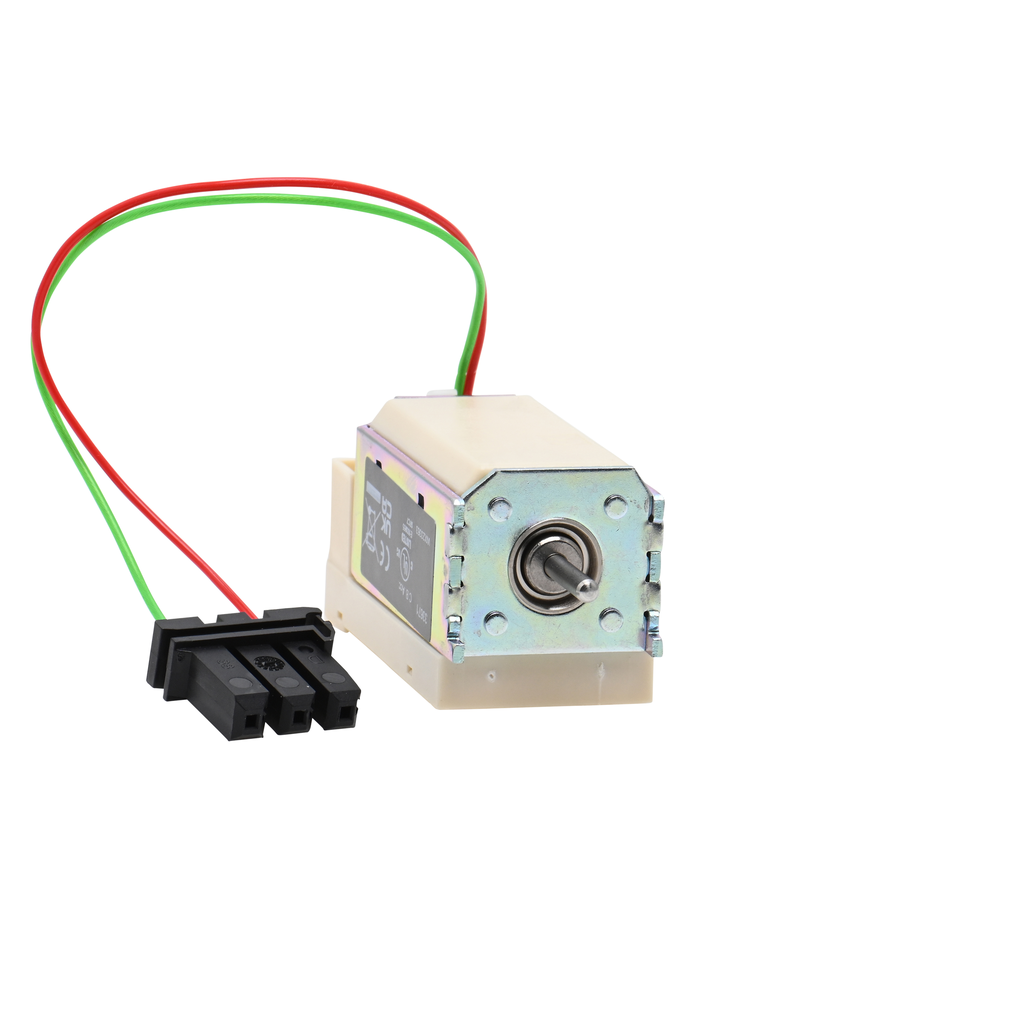

Circuit breaker accessory, PowerPacT M/P/R, undervoltage trip, 200V to 220V AC, 250VDC
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This undervoltage trip unit is a trip unit accessory for PowerPacT H, J and L-Frame circuit breakers. This trip unit has a rated voltage of 220 to 240VAC and 250VDC. This product complies with UL and IEC standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2311021EN |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2311021EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Tightening Torque | 3.5-3.5 N.m |
| Rated Voltage | 200-250 V AC/DC |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | undervoltage trip |
Documents
- Installation Instructions for Undervoltage Trip (MN) and Shunt Trip (MX) for M-, P-, and R-Frame and NS630b-NS3200 Circuit Breakers - 48049-245-03 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
