S33660

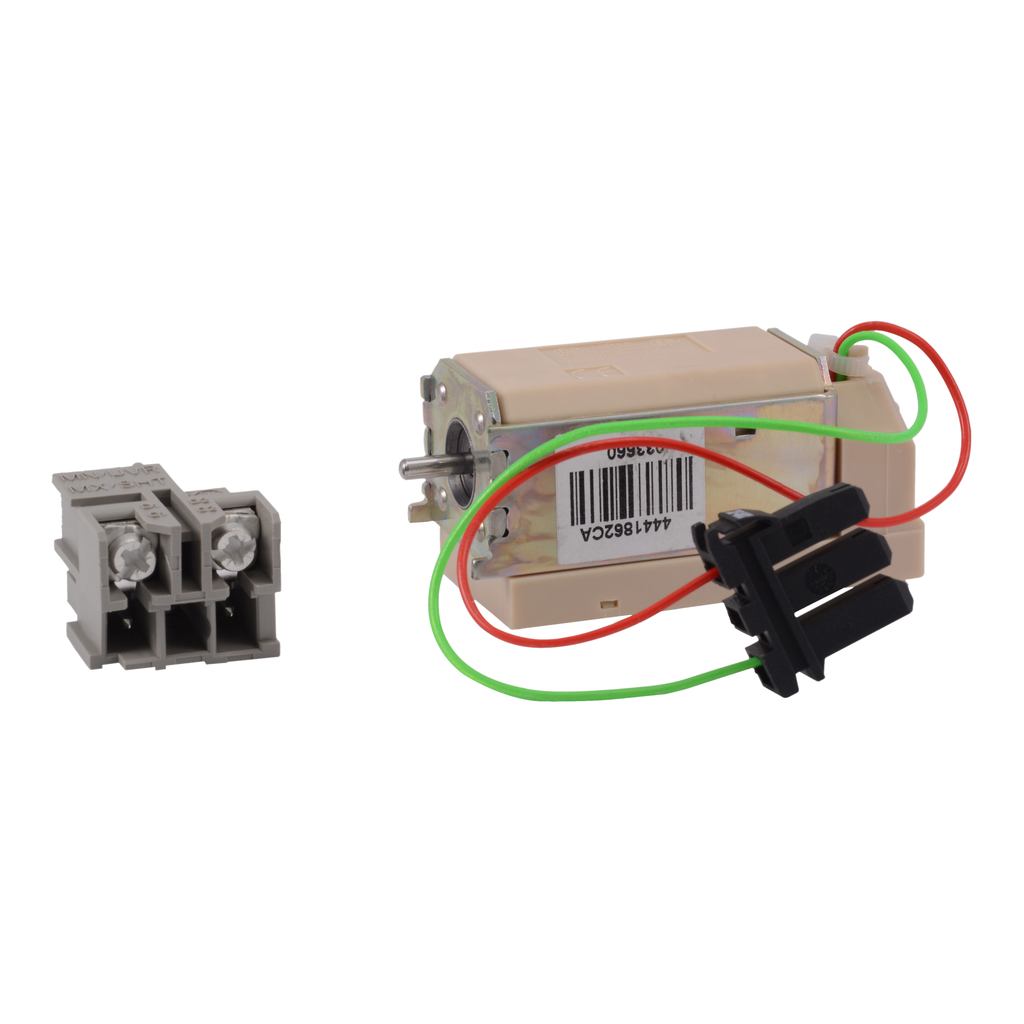

Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 48VAC, 48VDC, 60VDC
Specifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2307032EN |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2307032EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Tightening Torque | 1.2-1.2 N.m 0.82-2.5 mm² (AWG 18...AWG 14) |
| Rated Voltage |
|
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | shunt trip |
Documents
- Installation Instructions for Undervoltage Trip (MN) and Shunt Trip (MX) for M-, P-, and R-Frame and NS630b-NS3200 Circuit Breakers - 48049-245-03 (pdf)
- PowerPacT R-Frame and NS1600b–NS3200 Circuit Breaker Installation Instructions - 48049-243-04+Rev+06 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
