Circuit breaker accessory, PowerPacT M/P/R, shunt trip, 24V AC/DC, 30VDC

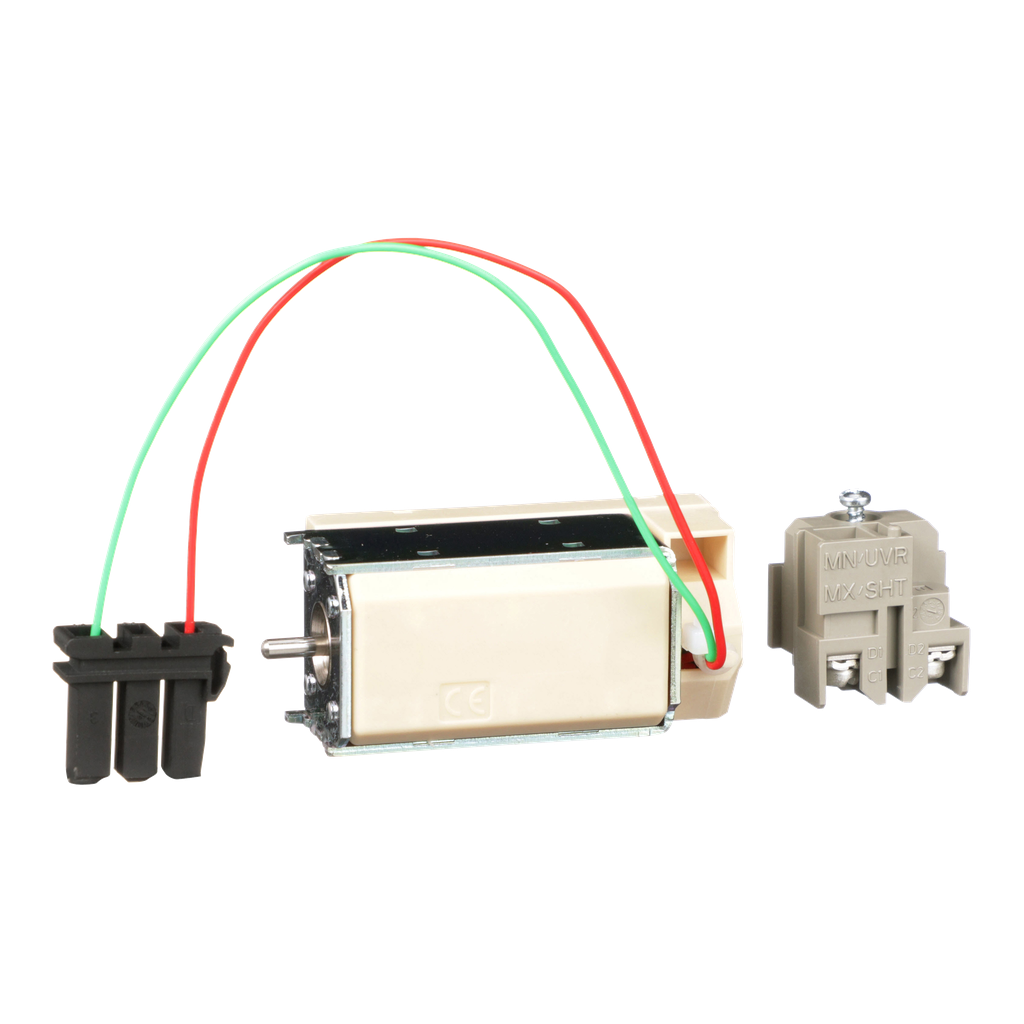

PowerPacT circuit breakers are designed to protect electrical systems from damage cause by overloads, short circuits, and ground faults. PowerPacT circuit breaker enclosures have a wide range of field installable accessories to allow customers to reduce inventory without sacrificing flexibility. This shunt trip unit for PowerPacT M- or P-Frame circuit breakers is one of the field installable accessories available. The shunt trip option allows tripping the circuit breaker from a remote location by means of a trip coil energized from a separate supply voltage circuit. When energized, the shunt trip instantaneously opens the circuit breaker. This shunt trip unit requires 24 to 30VDC supply voltage source. This accessory complies with UL standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Mercury Free | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2307032EN |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2307032EN |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Rack Type | remote |
| Mounting Location | inside the circuit breaker |
| Rated Voltage | 24-30 V DC |
| Country of Origin | United States |
| Range Of Product |
|
| Circuit Breaker Type | standard |
| Product Or Component Type | coil |
| Device Application | trips circuit breaker from remote location |
| Circuit Breaker Name | PowerPact M or P |
| Warranty | 18 months |
