S33100

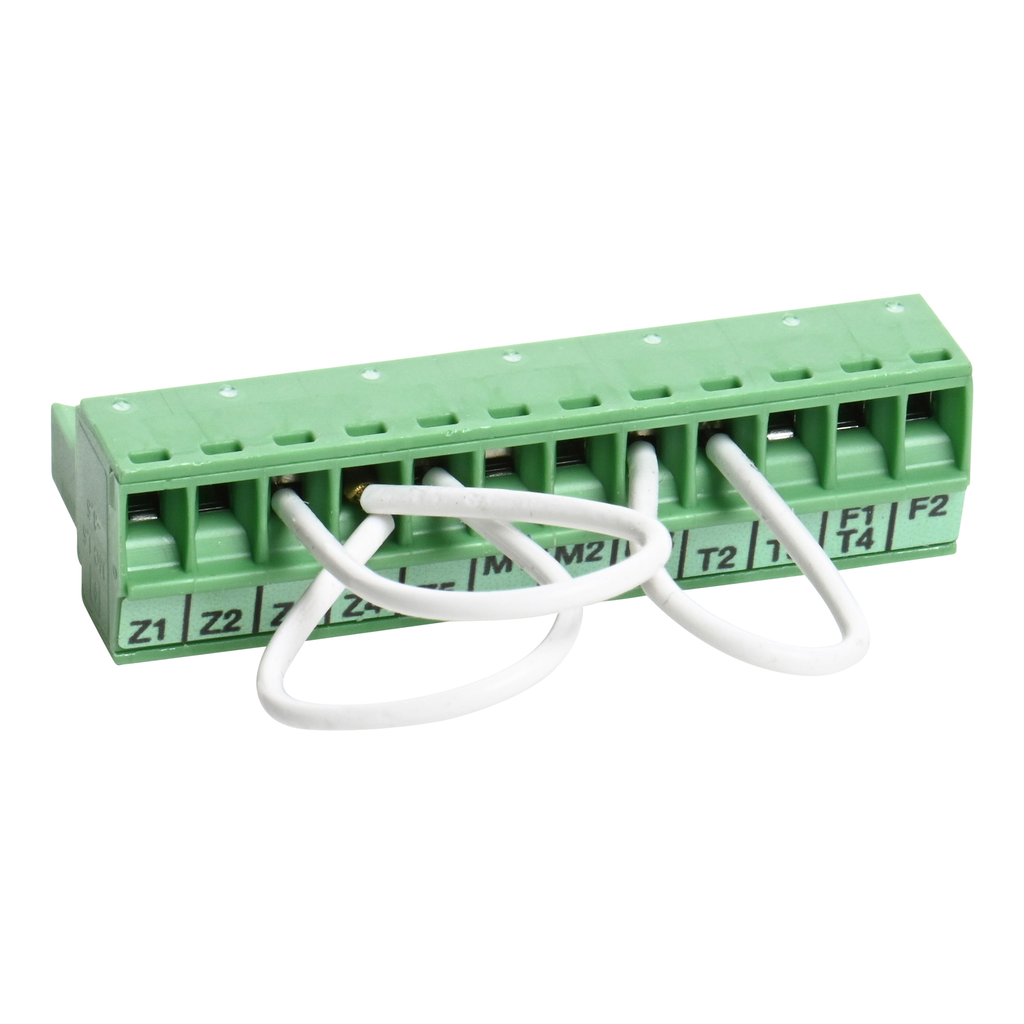

Circuit breaker accessory, PowerPacT P, trip unit, 12 pin connector
This is a connection accessory for PowerPacT P and R-Frame circuit breakers. This trip unit accessory is a 12 pin connector block. This product complies with CSA standards. This accessory can be used with PowerPact P-frame, unit mount and R-frame circuit breaker s
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | CSA |
|---|---|
| Warranty | 18 months |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Pin Number | 12 pins |
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | trip unit accessory |
| Product Or Component Type | connector |
