S32600

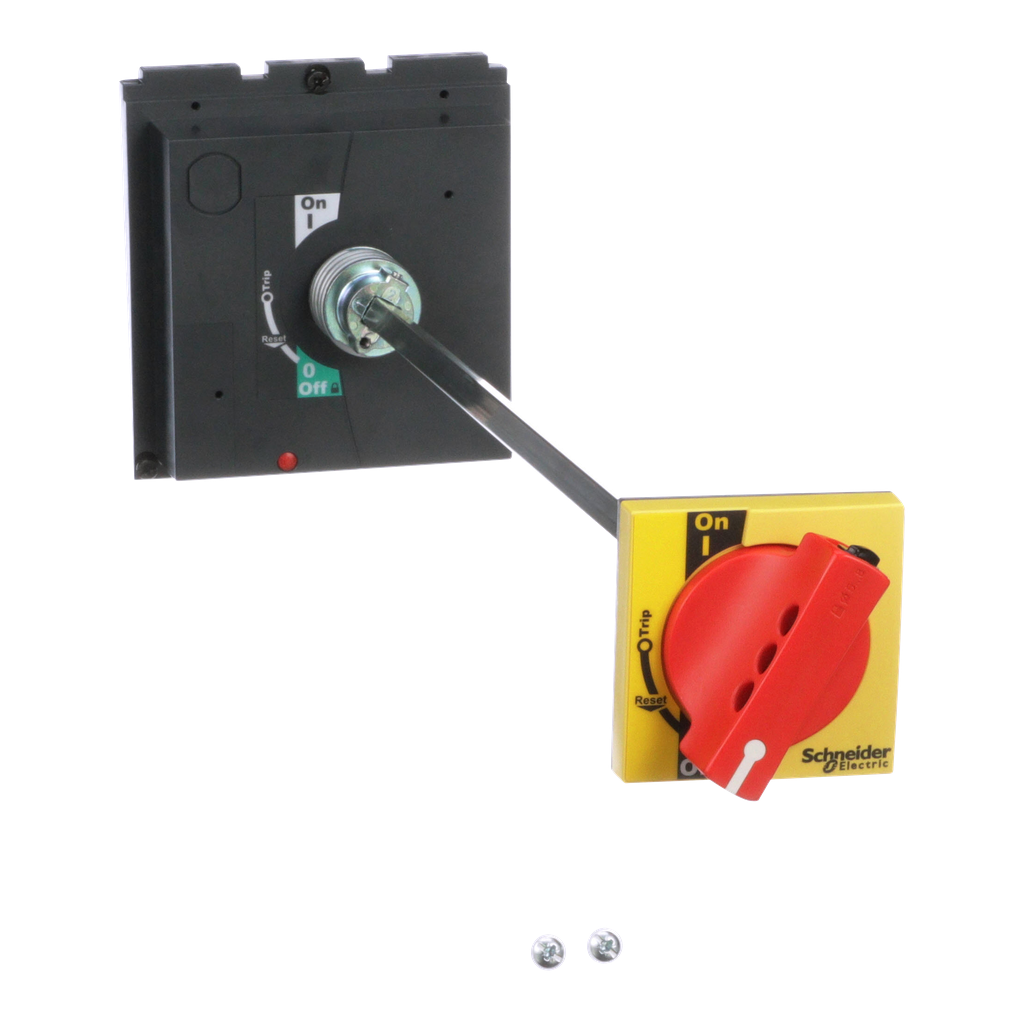

Circuit breaker accessory, PowerPacT L, handle, rotary, door mounted, red on yellow bezel
Square D PowerPacT H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units This door mounted red handle on yellow bezel is designed for use with PowerPacT L-frame circuit breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2204005EN |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2204005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Tightening Torque | 1.5-1.5 N.m |
| Mounting Support | door |
| Country of Origin | China |
| Range Of Product | PowerPact L |
| Handle Colour | red |
| Product Or Component Type | rotary handle |
Documents
- Door-Mounted (Extended) Rotary Handle Operator for PowerPacT L-Frame and TeSys GV6 Circuit Breakers - Installation - S1A59257 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- TeSys GV5PB/GV6PB Motor Protection Circuit Breakers - 8536CT1901R04_20 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
