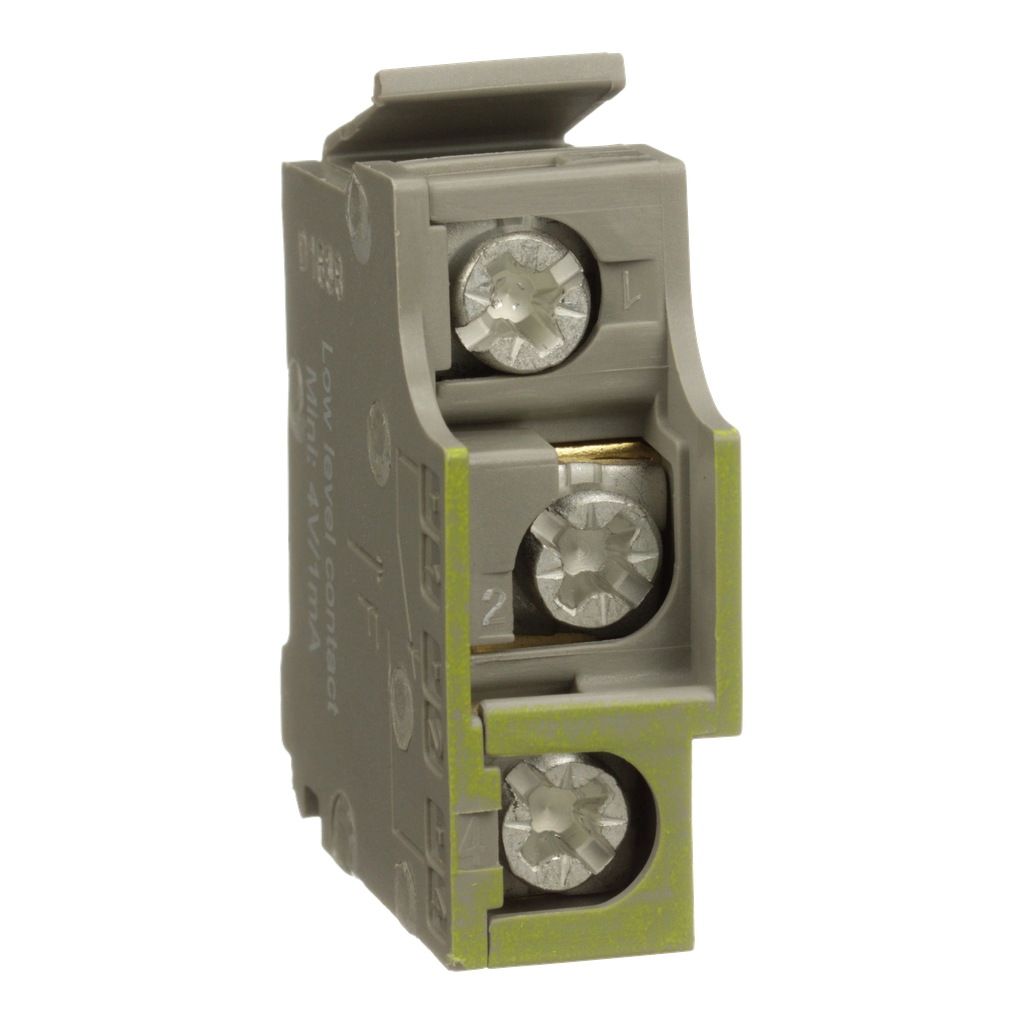

Circuit breaker accessory, PowerPacT H/J/L/M/P/R, auxiliary switch, OF/SD/SDE
The PowerPacT™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPacT auxiliary contact has a rated voltage of 24V, AC/DC. This product complys to UL listed & CSA standards. This auxiliary contact is compatable with H-frame, J-frame, L-Frame, M-frame, P-frame & R-Frame breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2304021EN |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Sustainable Packaging | Yes |
| Eu Rohs Directive | Compliant |
| Marking |
|
| Minimum Load | 1 mA 24 V |
| Rated Voltage | 24-24 V AC/DC |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | auxiliary switch |
