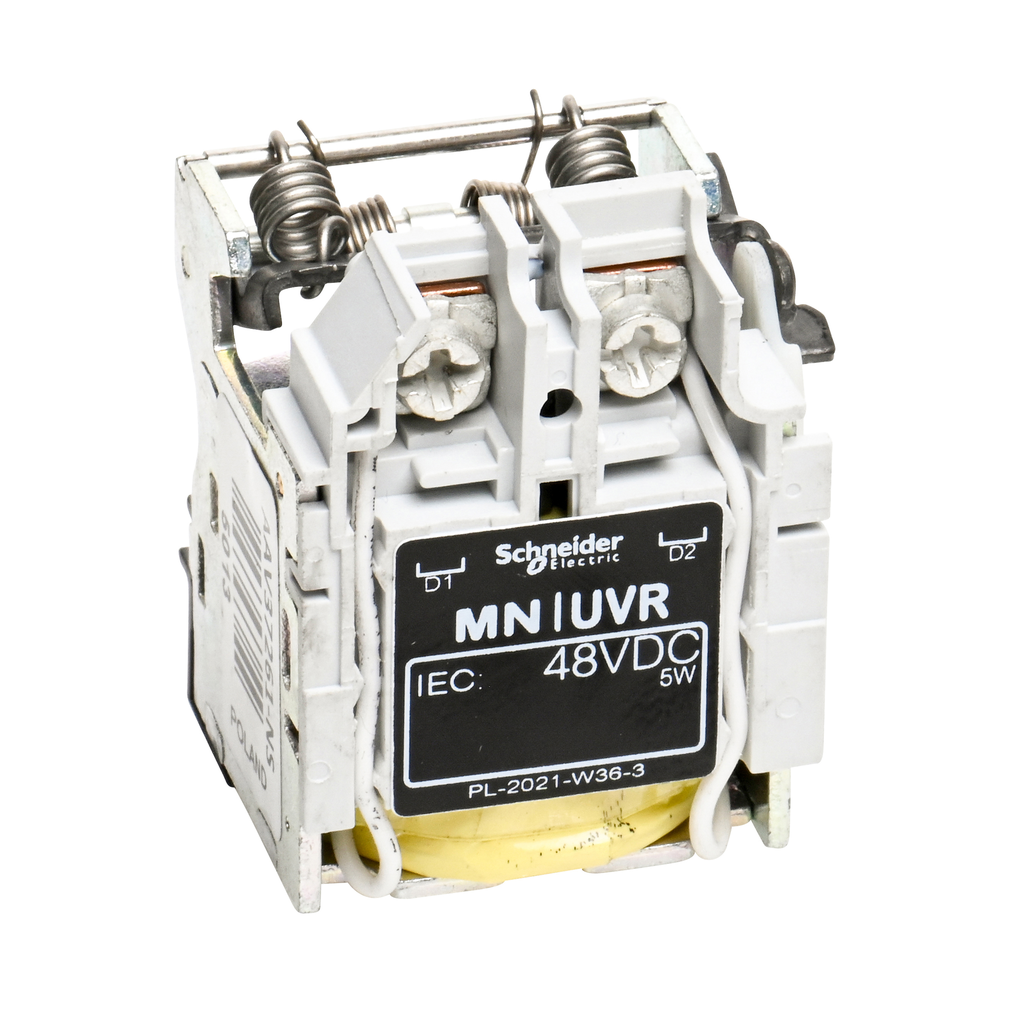

Circuit breaker accessory, PowerPacT H/J/L, undervoltage trip, 48VDC
The PowerPacT™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Tightening Torque | 1.4-1.4 N.m |
|---|---|
| Protection Type | undervoltage |
| Rated Voltage | 48-48 V DC |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Of Product |
|
| Accessory / Separate Part Category | trip unit accessory |
| Product Or Component Type | trip unit |
| Warranty | 18 months |
