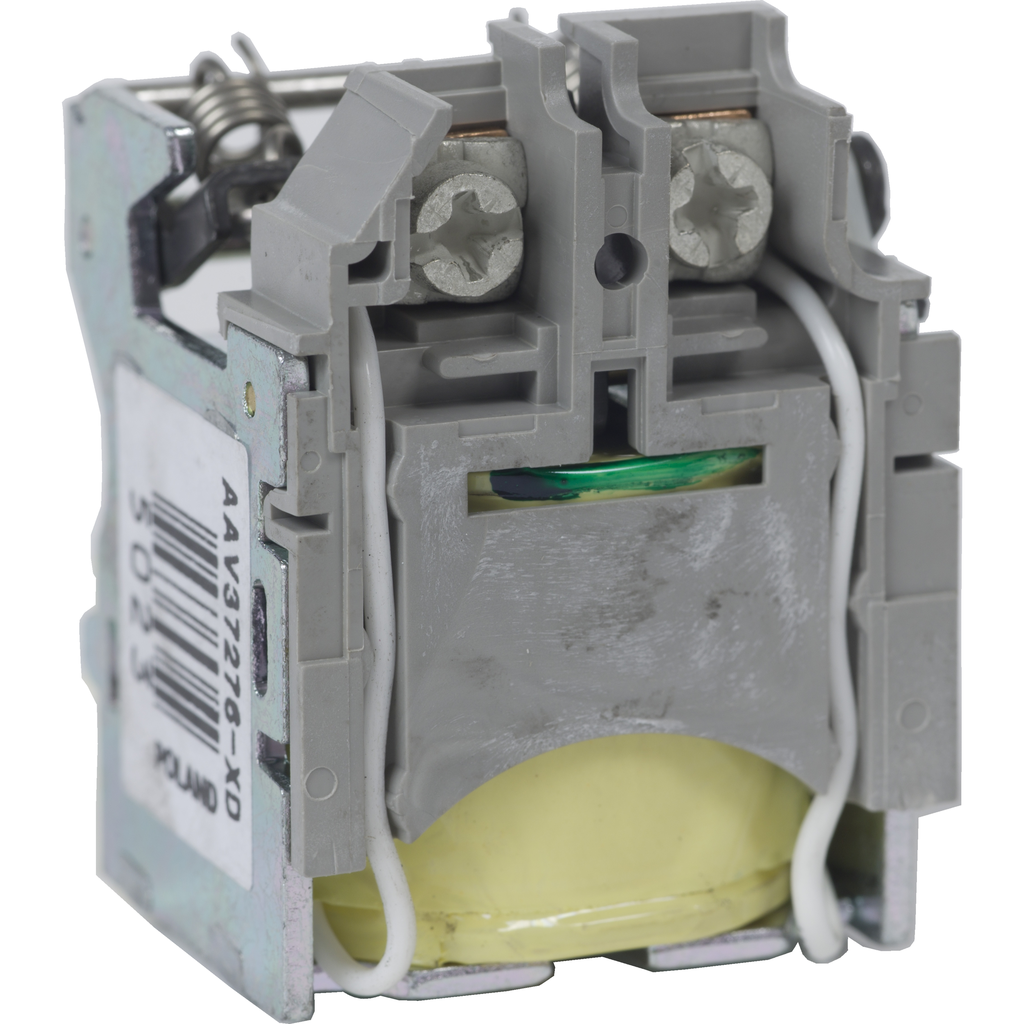

S29388 - Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 380VAC to 480VAC

S29388

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 380VAC to 480VAC

The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only. Shunt Trip (MX). Trips the circuit breaker when the control voltage rises above 70% of its rated voltage. Impulse type ≥ 20 ms or maintained control signals. AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element. Continuous duty rated coil.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA
Warranty	18 months
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Mercury Free	Yes
Eu Rohs Directive	Compliant
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Tightening Torque	1.4-1.4 N.m 0.82-2.5 mm² (AWG 18...AWG 14)
Rated Voltage	380-480 V AC
Country of Origin	United States
Range Of Product	PowerPact H PowerPact J PowerPact L
Product Or Component Type	shunt trip

Circuit breaker accessory, PowerPacT H/J/L, shunt trip, 380VAC to 480VAC
