S29369

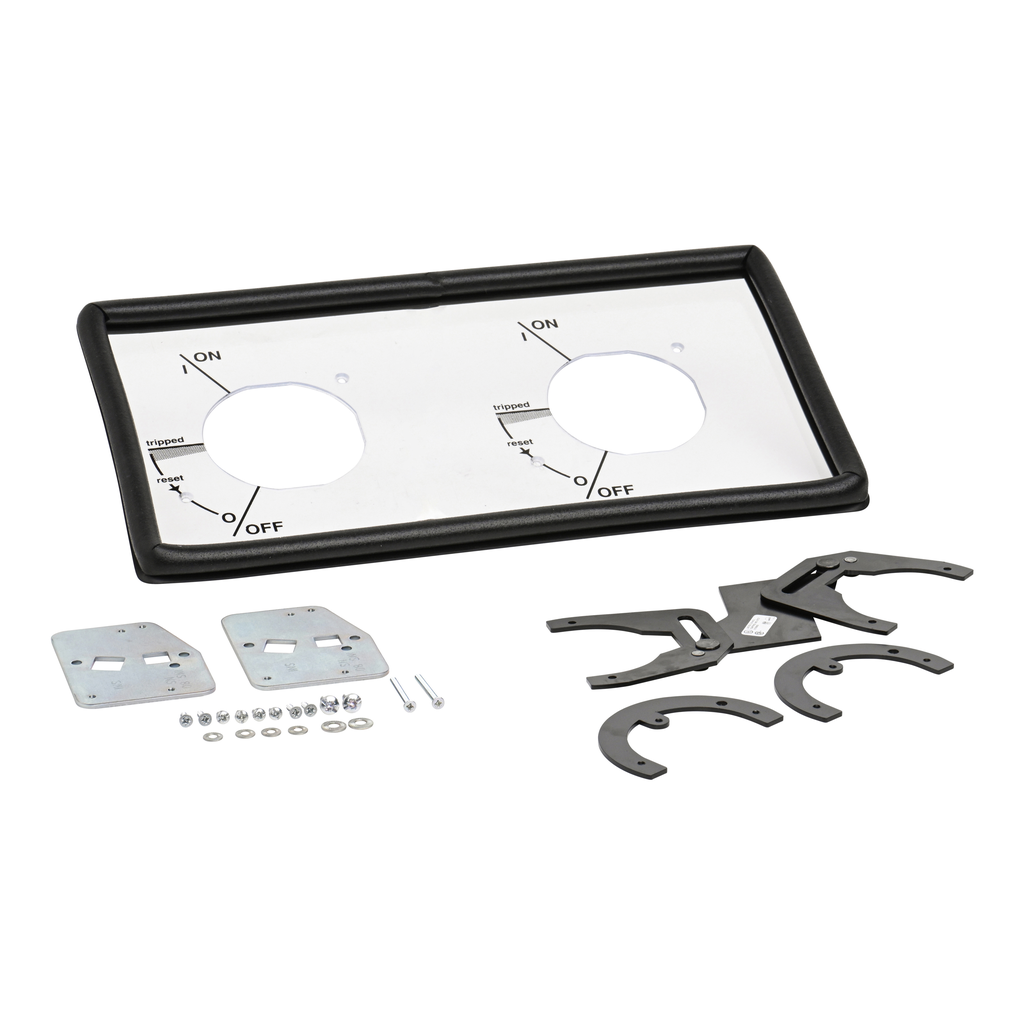

Circuit breaker accessory, PowerPacT H/J, interlock, mechanical, for rotary handle
This is a mechanoical interlocking kit, for PowerPacT h, J-Frame circuit breaker. This interlock is for a rotary handle and is ditect mounted. This product complies with UL standards. This interlock requires a tightening torque of 1.2-1.2 Nm. This interlocking kit is field installable.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL |
|---|---|
| Warranty | 18 months |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Rotary Handle Mounting Style | direct |
| Tightening Torque | 1.2-1.2 N.m |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | mechanical interlock |
Documents
- Mechanical Interlock for Toggle Handles for PowerPacT H- and J-frame Circuit Breakers, Kit S29369 Installation Instructions - 48940-224-01 (pdf)
- Mechanical Interlock for Rotary Handle for PowerPacT H, J, and L-Frame Circuit Breakers - Installation Instructions - 48940-240-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
