S29278

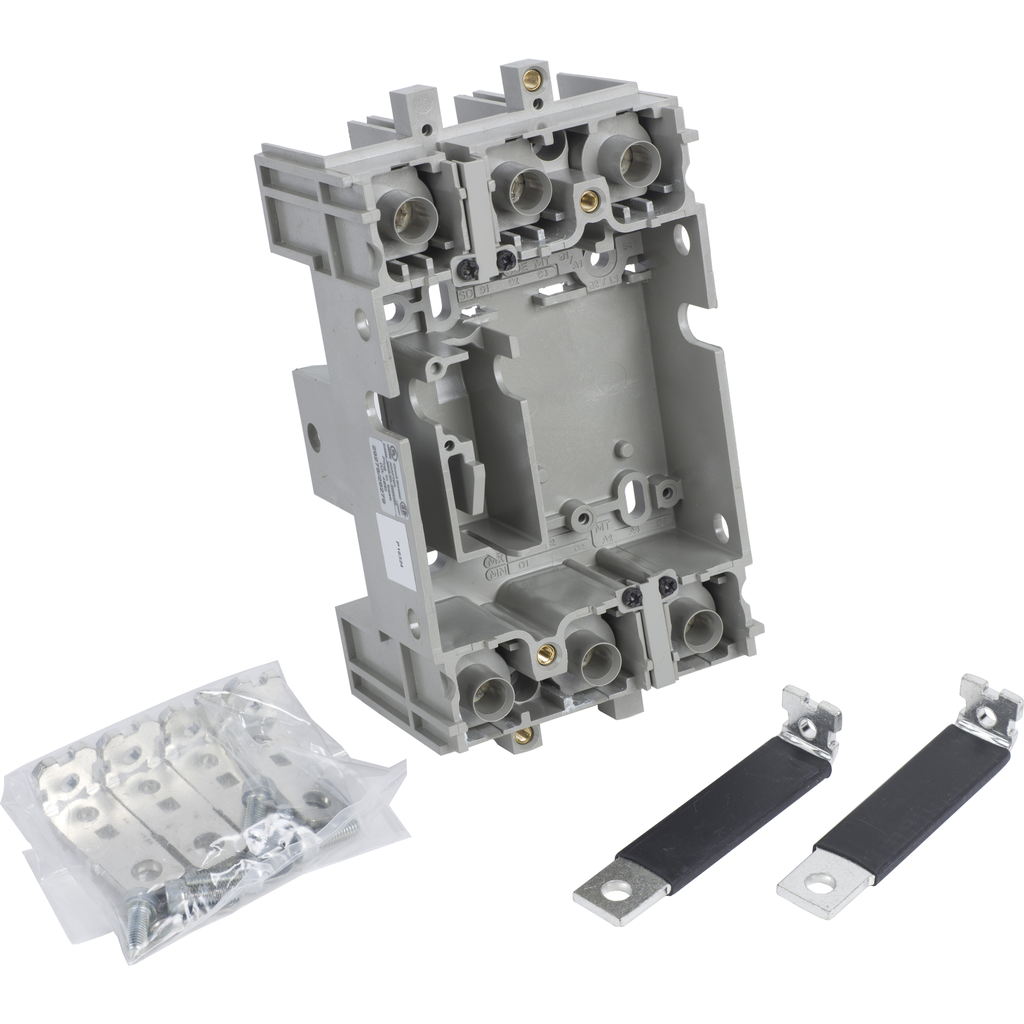

Circuit breaker accessory, PowerPacT H/J, plug in base kit, mission critical, drawout, 2 or 3 pole
This is a counting accessory for H-, J-Frame circuit breakers. This is for a drawout installation for a panel. The plug-in base provides mounting through a front panel or mounting on rails for a 2-3 pole drawout mounted circuit breaker. This product complies with UL and CSA standards. This base has a tightening torque of 2.5-2.5 Nm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Mercury Free | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2405019EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Circularity Profile | ENVEOLI2405019EN |
| Eu Rohs Directive | Compliant |
| Country of Origin | United States |
| Range Of Product |
|
| Product Or Component Type | base |
| Tightening Torque | 2.5-2.5 N.m |
| Mounting Mode | plug-in |
| Warranty | 18 months |
Documents
- 9-Wire Base Fixed Connector for PowerPacT H-, J- and L-Frame Circuit Breakers with MicroLogic Trip Units Installation Instructions - 48940-226-01 (pdf)
- Plug-in Base Kit for PowerPacT H- and J-frame Molded Case Circuit Breakers Installation Instructions - 48940-256-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- PowerPacT with MicroLogic Brochure - 0600BR1101 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT Multistandard Circuit Breakers 15 - 600 A Catalog - LVPED212023EN_WEB2 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
