S29275

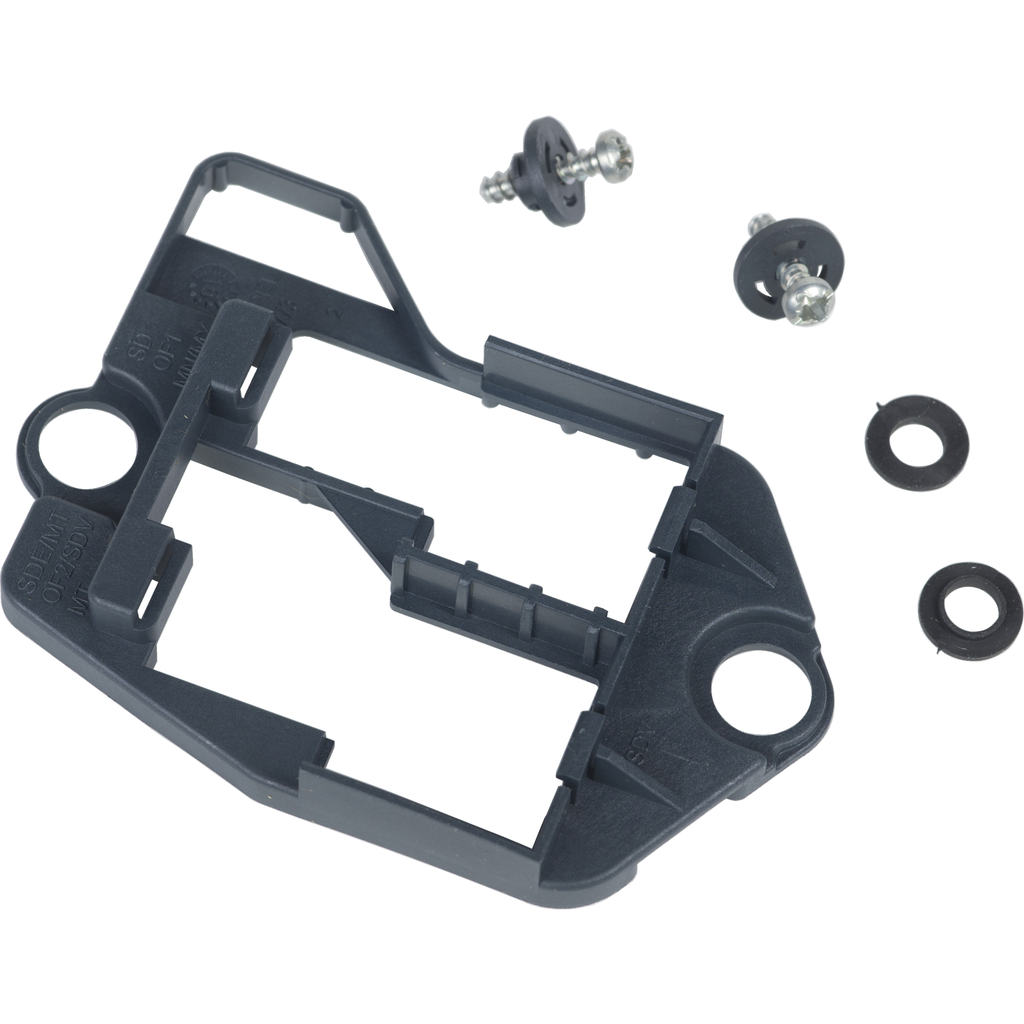

Circuit breaker accessory, PowerPacT H/J, support for two moving connectors, secondary disconnect block
Specifications
| Country of Origin | United States |
|---|---|
| Range Of Product |
|
| Accessory / Separate Part Category | support accessory |
| Product Or Component Type | support |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Environmental Disclosure | ENVPEP111165EN |
| Eu Rohs Directive | Under investigation |
| Warranty | 18 months |
| Tightening Torque | 1.4-1.4 N.m |
Documents
- 9-Wire Base Moving Connector for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units - Installation Instructions - 48940-227-01 (pdf)
- Support for H- and J-frame Secondary Disconnect - 48940-228-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
