S29273

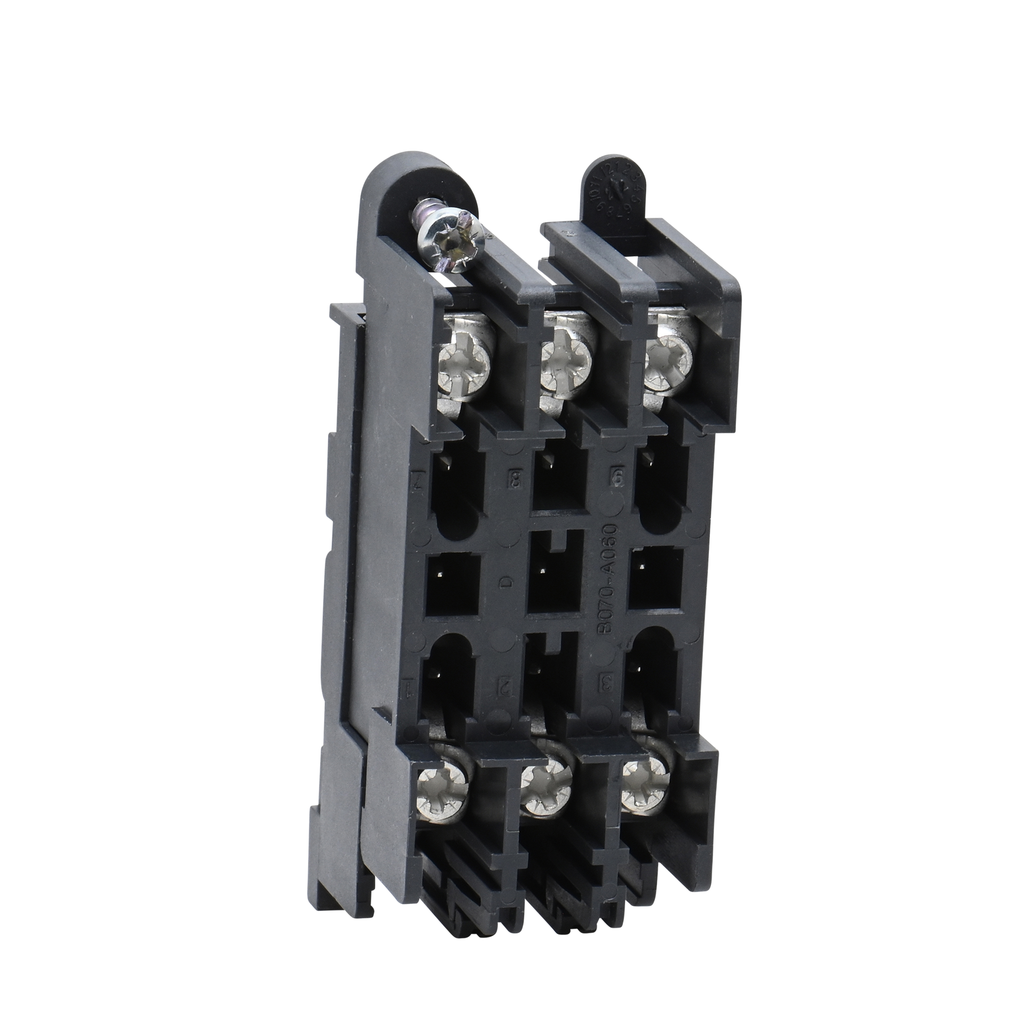

Circuit breaker accessory, PowerPacT J/L. plug in or drawout, fixed part 9 wire connector base mounted
Square D PowerPact H, J and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame breakers are performed only with Micrologic electronic units Fixed part 9-wire connector (mounted on base) is an fixed accessory for Plug-In and Drawout Powr Pact H, J or L frame circuit breakers
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Pin Number | 9 pins |
|---|---|
| Tightening Torque | 1.4-1.4 N.m |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin | United States |
| Range Of Product |
|
| Circuit Breaker Type | Y-frame |
| Product Or Component Type | connector |
| Warranty | 18 months |
Documents
- 9-Wire Base Moving Connector for PowerPacT H-, J-, and L-Frame Circuit Breakers with MicroLogic Trip Units - Installation Instructions - 48940-227-01 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
