S143A

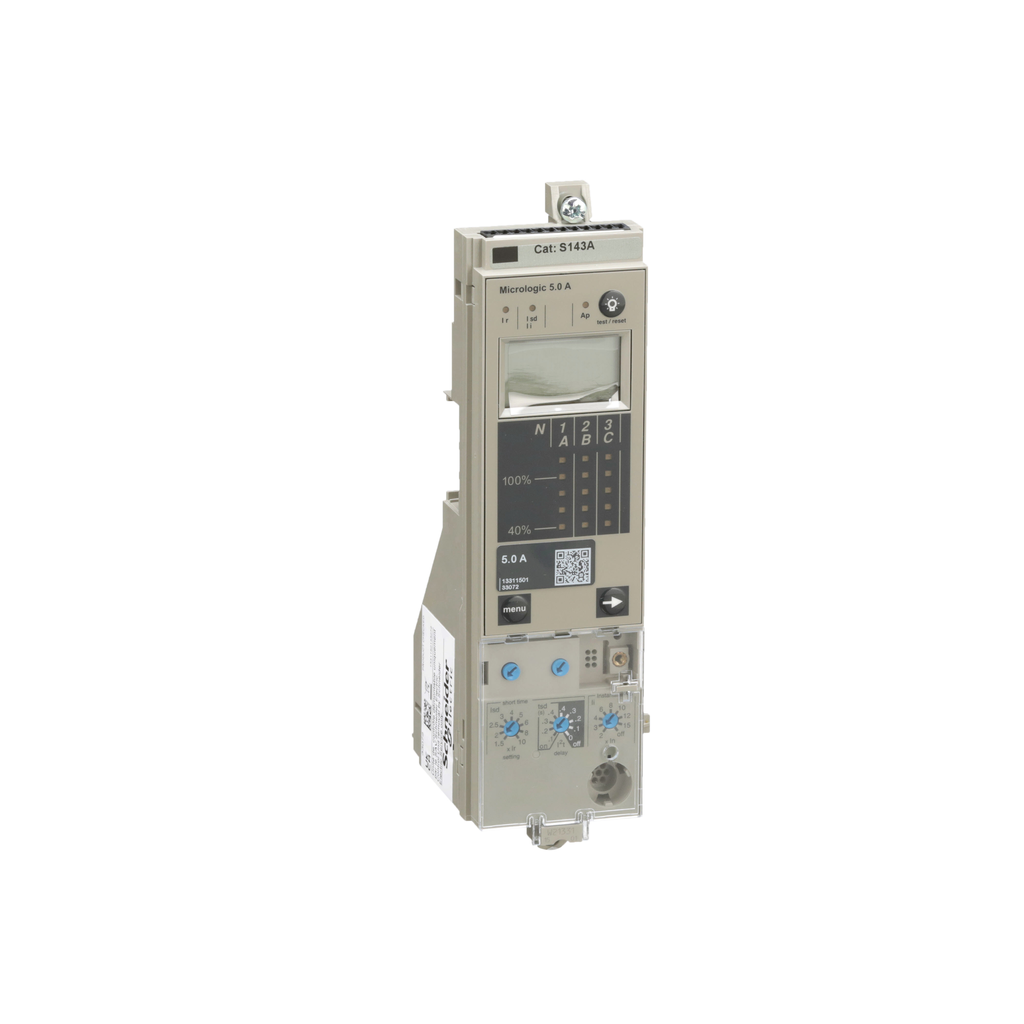

Micrologic trip unit, PowerPacT P, R, circuit breaker, 5.0A Ammeter, LSI
This is a Micrologic electronic trip unit accessory for powerPact P and R-Frame circuit breakers. This is a trip unit accessory. This accessory can be field installed. A rating plug is provided with trip unit. This product complys with UL listed and CSA standards. This sensor plug has a tightening torque of 0.8 Nm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Trip Unit Name | MicroLogic 5.0 A |
| Tightening Torque | 0.8-0.8 N.m |
| Trip Unit Protection Functions | LSI |
| Type Of Measurement | ammeter |
| Type Of Installation | field installable |
| Country of Origin | United States |
| Provided Equipment | rating plug |
| Circuit Breaker Type |
|
| Product Or Component Type | trip unit |
| Product Name | MicroLogic |
| Trip Unit Technology | electronic |
