S131A

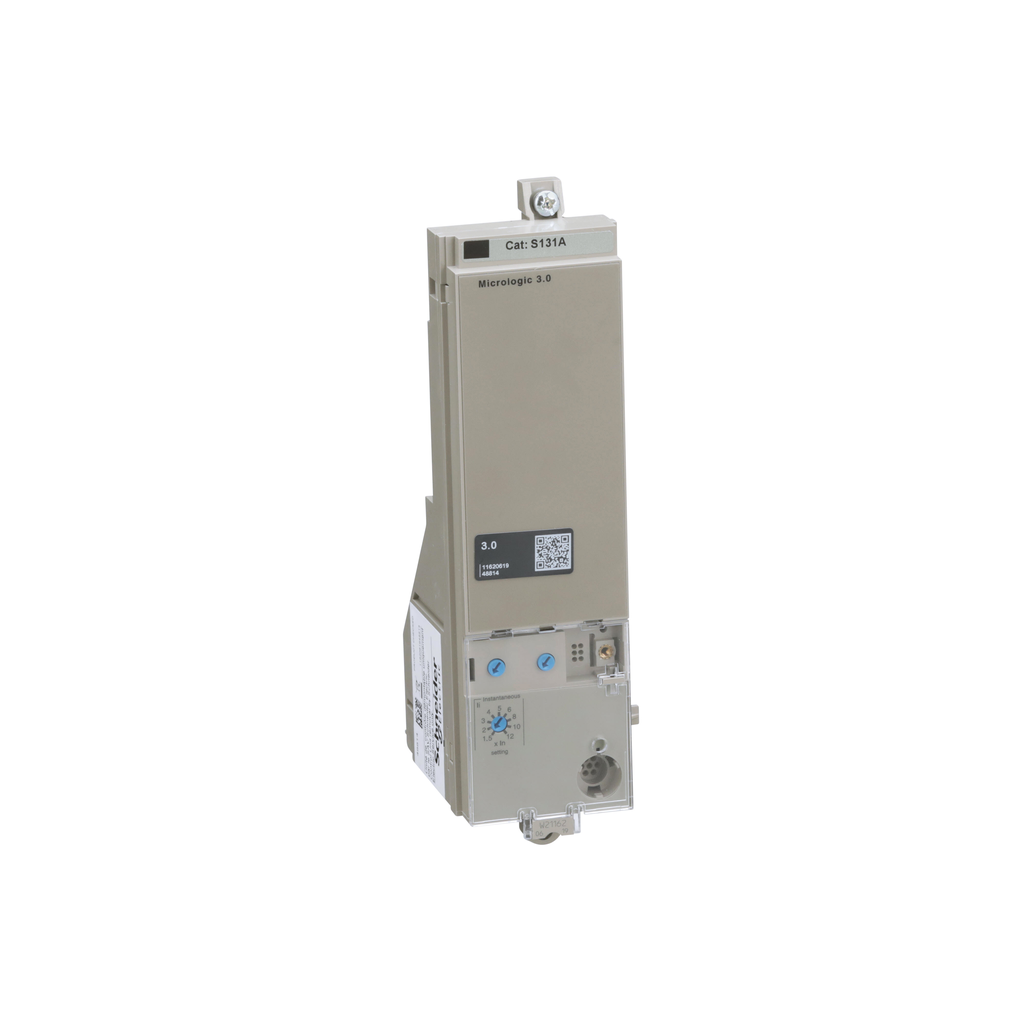

Trip unit, PowerPacT P, R, with rating plug, 3.0 (UL/ANSI only), LI protection
Square D PowerPacT family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Each MicroLogic™ trip unit is equipped with an interchangeable long-time rating plug to provide maximum design flexibility, system protection, and field upgradeability. Trip unit requires an adjustable rating plug to determine the long-time pickup range of the circuit breaker. These plugs can be ordered separately for field-installable upgrades. This trip unit model is standard 3.0 (UL/ANSI only) with LI protection without additional features.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Trip Unit Name | MicroLogic 3.0 |
| Tightening Torque | 0.8-0.8 N.m |
| Trip Unit Protection Functions | LI |
| Type Of Installation | field installable |
| Country of Origin | United States |
| Provided Equipment | rating plug |
| Circuit Breaker Type |
|
| Product Or Component Type | trip unit |
| Product Name | MicroLogic |
| Trip Unit Technology | electronic |
