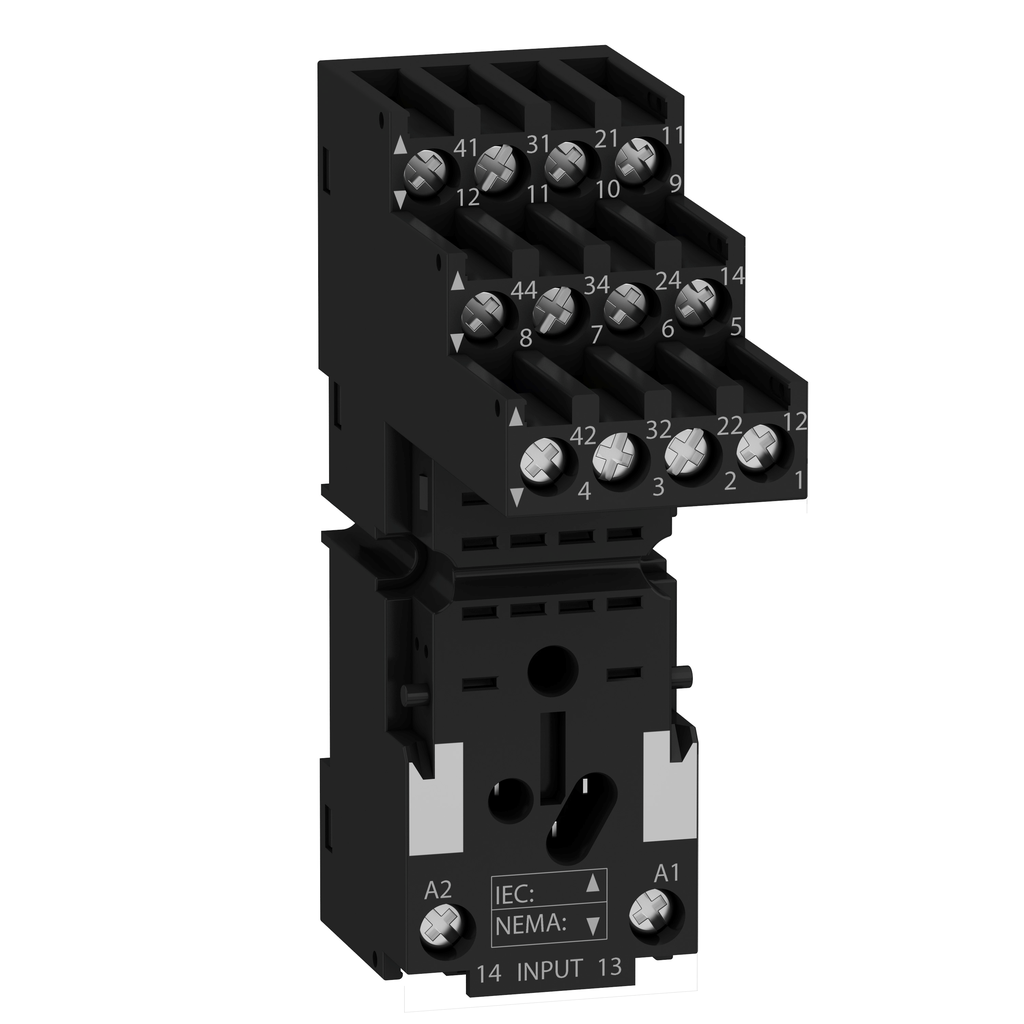

RXZE2S114M - socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, separate contact

RXZE2S114M

socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, separate contact

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CSA Lloyd's UL
Ambient Air Temperature For Operation	-40-55 °C
Standards	IEC 61984
Marking	CE
Ip Degree Of Protection	IP20 conforming to IEC 60529
Dielectric Strength	2500 V
Ambient Air Temperature For Storage	-40-85 °C
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1511021EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Tightening Torque	< 1 N.m M3
[Uimp] Rated Impulse Withstand Voltage	4 kV
[Ue] Rated Operational Voltage	< 250 V IEC < 300 V UL
Pollution Degree	3
Shape Of Pin	flat
Contact Terminal Arrangement	separate
Net Weight	0.07 kg
Fixing Mode	by screw (panel) clip-on (35 mm symmetrical DIN rail)
Connections - Terminals	connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Sale Per Indivisible Quantity	10
Width	27 mm
Overvoltage Category	III
Country of Origin	United States
Width	27 mm
Weight	0.07 kg
[Ith] Conventional Free Air Thermal Current	10 A
Range Of Product	Harmony Electromechanical Relays Harmony Timer Relays
Product Or Component Type	socket
Contacts Type And Composition	4 C/O
Product Compatibility	plug-in relay RXM 4 C/O plug-in relay REXL 4 C/O
Device Short Name	RXZ

socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, separate contact
