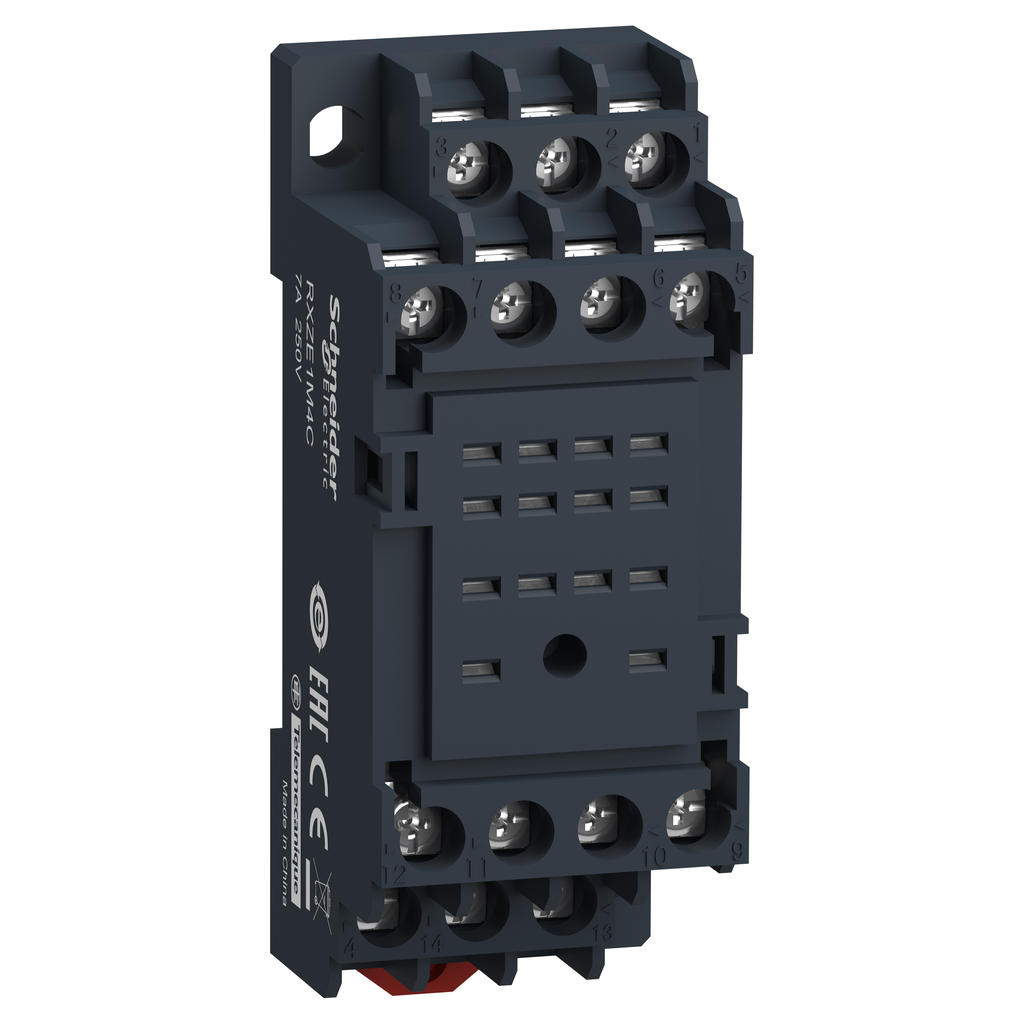

socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB relays,7A, screw clamp socket, mixed contact terminal
"This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -40-55 °C |
|---|---|
| Standards | IEC 61984 |
| Marking | CE |
| Dielectric Strength | 2500 V |
| Ambient Air Temperature For Storage | -55-85 °C |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511020EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Tightening Torque | < 0.8 N.m M3 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| [Ue] Rated Operational Voltage | 250 V AC IEC |
| Pollution Degree | 3 |
| Contact Terminal Arrangement | mixed |
| Net Weight | 0.053 kg |
| Fixing Mode |
|
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 10 |
| Width | 29 mm |
| Overvoltage Category | III |
| Country of Origin | United States |
| Width | 29 mm |
| Weight | 0.053 kg |
| [Ith] Conventional Free Air Thermal Current | 7 A |
| Range Of Product | Harmony Electromechanical Relays |
| Product Or Component Type | socket |
| Contacts Type And Composition | 4 C/O |
| Product Compatibility |
|
| Device Short Name | RXZ |
